Allied Telesis AT-DRB15-24-1 | DRB15 DIN Rail Power Supply, 15W, 24V DC Output

Name: Allied Telesis AT-DRB15-24-1 | DRB15 DIN Rail Power Supply, 15W, 24V DC Output
Brand: Allied Telesis
SKU: AT-DRB15-24-1
Price: 125.23 AUD
Availability: InStock

Authorised Allied Telesis Partner

SKU:AT-DRB15-24-1

In stock:48

$125.23 inc. GST

$113.85 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

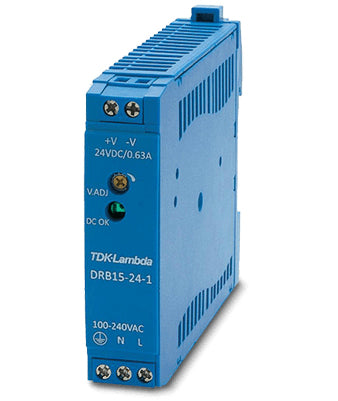

The AT-DRB15-24-1 is a compact DIN rail power supply delivering 15W at 24V DC from a universal 85-264V AC input. Its narrow 18mm profile saves space on the rail, making it well suited to basic low-power industrial, building automation and process control applications.

Efficiency reaches up to 90% at 230V AC with a low no-load power draw, and the unit operates across a -20 to +70 C temperature range. A green LED confirms the DC output is OK, and protection features include overcurrent hiccup with auto recovery and overvoltage protection. Series operation is possible, and the flame retardant polycarbonate case suits TS-35/7.5 and TS-35/15 DIN rails.

Features

- Universal AC input for wide-range operation
- Compact, narrow design saves space on the DIN rail
- High efficiency with low no-load power draw
- ErP-compliant design
- EN61000-3-2 compliant for worldwide use
- Green LED indicates DC output is OK
- Class 1 Div 2 rated for hazardous locations
- Series operation possible
- Robust flame retardant plastic case

Warranty

Allied Telesis provides a structured hardware warranty for products purchased after January 1, 2024, through approved sources such as IP Trading. Warranty terms vary by product class and are valid for purchases made in Australia and other supported regions.
Warranty Coverage Options:
• 2-Year Warranty: Standard coverage for most entry-to-mid-tier Allied Telesis hardware.
• 5-Year Warranty: Applies to selected enterprise-grade models.
• Limited Lifetime Warranty: Offered on eligible products for the operational life of the unit, with support ending five (5) years after the product’s official End-of-Sale (EOS) date.
Extended Warranty Options:
IP Trading offers tailored extended coverage and support solutions for Allied Telesis products. Speak to our team to customise a warranty plan that suits your business requirements.
https://www.alliedtelesis.com/au/en/warranty-july-2024-onwards

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output power: 15 W
- Output voltage: 24 V DC
- Input voltage range: 85 - 264 VAC, 120 - 373 VDC
- Input frequency: 47 - 63 Hz
- Efficiency: up to 90% (230V AC)
- Ripple and noise: 20 mV
- Overcurrent protection: hiccup with auto recovery
- Overvoltage protection: 30 - 33.6 V
- Hold up time (230 VAC input): > 20 ms
- No load power draw: < 0.3 W
- Operating temperature: -20 to +70 C
- Storage temperature: -40 to +85 C
- Cooling: convection
- Dimensions (W x H x D): 18 x 75 x 90 mm
- Weight: 85 g
- Case material: flame retardant polycarbonate (UL94 V-0)
- Safety certifications: UL508 Listed, UL60950-1, CSA22.2 No60950-1, EN60950-1, CE Mark

FAQs

Q: What output does the AT-DRB15-24-1 provide?
A: It provides 15W of power at 24V DC from a single output.

Q: What input voltage range does it accept?
A: It accepts 85-264V AC or 120-373V DC. Safety certification applies to AC input only.

Q: Can two units be connected in parallel for more power?
A: No, parallel operation is not available on this model. Series operation is possible.

Q: What operating temperature range is supported?
A: It operates from -20 to +70 C. Below -10 C the start-up load is derated linearly to 50% down to -20 C.

Q: How is it mounted?
A: It mounts on DIN rail and is suitable for TS-35/7.5 and TS-35/15 rails. The case measures 18 x 75 x 90 mm.

Q: How do I confirm the output is working?
A: A green LED on the unit lights to indicate the DC output is OK.
