Moxa IKS-6728A-8PoE-4GTXSFP-HV-HV-T | IKS-6728A Modular Managed PoE+ Switch, 8 PoE+ Ports, HV, 4x GbE Combo

Authorised Moxa Partner

SKU:IKS-6728A-8PoE-4GTXSFP-HV-HV-T

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Stock Status: Enquire

Description

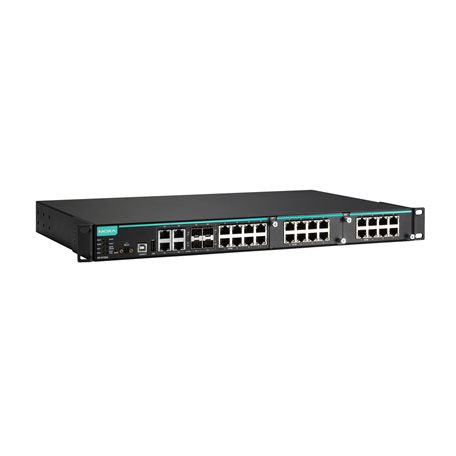

The Moxa IKS-6728A-8PoE-4GTXSFP-HV-HV-T is a modular managed PoE+ rackmount switch built for harsh industrial environments, with 8 Fast Ethernet PoE/PoE+ ports, 4 Gigabit copper/SFP combo ports and a wide -40 to 75°C operating range. Dual isolated high-voltage AC power supplies (85-264 VAC) provide power redundancy, and Turbo Ring, Turbo Chain and RSTP/STP/MSTP keep industrial networks resilient.

Two slots for additional interface modules let you expand the port count to suit the application (modules sold separately), while smart PoE power management, 3kV LAN surge protection and support for EtherNet/IP, PROFINET and Modbus TCP make it well suited to factory automation, transport and utility deployments. Front cabling and included rack-mounting ears simplify installation in standard racks.

Features

- 3kV LAN surge protection
- Smart PoE power management and diagnostic functions
- Supports EtherNet/IP, PROFINET and Modbus TCP protocols
- Supports MXstudio for visualised industrial network management
- V-ON ensures millisecond-level multicast data and video network recovery
- Turbo Ring and Turbo Chain network redundancy
- Modular design with two interface module slots for expansion

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) ports, IEEE 802.3af/at (PoE/PoE+) compliant
- 4 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports
- 2 slots for additional interface modules (modules sold separately)
- Up to 36W PoE output per port
- Dual isolated 110/220 VAC power supplies (85-264 VAC)
- 48V power supply for PoE use sold separately
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Standards: IEEE 802.3/3u/3x/3z/3ad/3ab and 802.1s/1p/1Q/1w/1X/1D-2004
- Redundancy: Turbo Ring, Turbo Chain, RSTP/STP/MSTP
- Security: TACACS+, SNMPv3, IEEE 802.1x, HTTPS, SSH
- Front cabling, rackmount with 2 rack-mounting ears included

FAQs

Q: How many PoE ports does the IKS-6728A-8PoE-4GTXSFP-HV-HV-T have?
A: It has 8 built-in 10/100BaseT(X) PoE/PoE+ ports compliant with IEEE 802.3af/at, each delivering up to 36W.

Q: Can I add more ports to this switch?
A: Yes. It has two slots for additional interface modules, which are sold separately, allowing the port count to be expanded to suit your application.

Q: What power supplies does this model use?
A: It has dual isolated high-voltage AC power supplies rated 85-264 VAC (110/220 VAC) for redundancy. A 48V power supply for PoE use is sold separately.

Q: What are the Gigabit combo ports?
A: The 4 combo ports each support either 10/100/1000BaseT(X) copper or 100/1000BaseSFP fibre, giving flexible uplink options.

Q: What temperature range does it support?
A: It operates from -40 to 75°C (-40 to 167°F), suitable for harsh industrial environments.

Q: Which redundancy protocols are supported?
A: Turbo Ring, Turbo Chain and RSTP/STP/MSTP are supported for resilient network topologies.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
