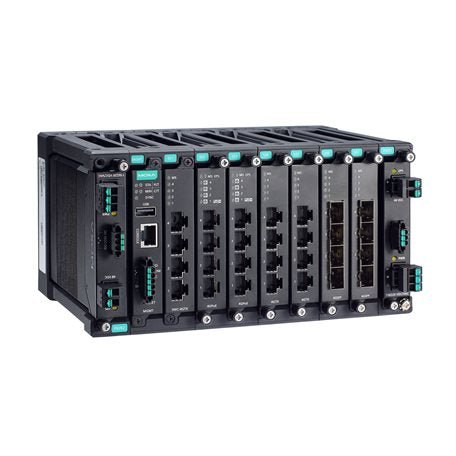

Moxa MDS-G4028 | MDS-G4000 Modular Managed Gigabit Switch, 28-Port, -10 to 60°C

Moxa MDS-G4028 | MDS-G4000 Modular Managed Gigabit Switch, 28-Port, -10 to 60°C

Authorised Moxa Partner

SKU:MDS-G4028

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The MDS-G4028 is a Layer 2 modular managed Gigabit Ethernet switch from the MDS-G4000 series, built for harsh environments such as power substations, mining, intelligent transport systems, and oil and gas. It combines 4 embedded Gigabit ports with 6 slots for optional 4-port interface modules, scaling to 28 Gigabit ports in a compact IP40 die-cast housing. This is the standard temperature model, rated for operation from -10 to 60°C.

The chassis supports up to 24 SFP slots, up to 28 RJ45 ports, and up to 24 PoE ports when fitted with PoE modules. Two hot-swappable power module slots allow redundant 24/48 VDC or 110/220 VAC/VDC supplies. Interface and power modules are sold separately and are required for the switch to function. Mounting options include DIN-rail, wall and rack.

Features

- Multiple 4-port interface module types for flexible port configurations
- Tool-free, hot-swappable modules can be added or replaced without shutting down the switch
- Passive backplane minimises maintenance effort
- Ultra-compact size with multiple mounting options
- Rugged die-cast design suited to harsh environments
- Dual power module slots for redundancy, with low-voltage and high-voltage options
- Redundancy protocols including STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing and Link Aggregation
- Security features including HTTPS/SSL, SSH, RADIUS, TACACS+, MAC Sticky and static port lock
- HTML5-based web interface
- Overload current and reverse polarity protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 28 total Gigabit ports (4 embedded + 6 x 4-port module slots)
- Layer 2 managed
- Up to 24 x 100/1000BaseSFP slots
- Up to 28 x 10/100/1000BaseT(X) RJ45 ports
- Up to 24 PoE 10/100/1000BaseT(X) ports with PoE modules
- 2 hot-swappable power module slots (24/48 VDC or 110/220 VAC/VDC)
- MAC table size: 16 K
- Up to 256 VLANs, VID 1 to 4094
- IGMP groups: 1024
- 8 priority queues
- Packet buffer: 12 Mbits
- Console port: RS-232, 8-pin RJ45
- 1 digital input and 3 alarm contact channels across management and power modules
- Operating temperature: -10 to 60°C (standard temperature model)
- Storage temperature: -40 to 85°C
- IP40 rugged die-cast housing
- Dimensions: 218 x 115 x 163.25 mm
- Weight: 2840 g
- DIN-rail, wall or rack mounting (wall and rack kits optional)
- Hazardous location approvals: ATEX, Class I Division 2
- Power substation standards: IEEE 1613, IEC 61850-3
- Railway: EN 50121-4, Traffic control: NEMA TS2
- MTBF: 966,801 hrs (Telcordia SR332)

FAQs

Q: Does the MDS-G4028 work out of the box?
A: No. It needs at least one interface module and a power module, both sold separately, before it can be used.

Q: How many ports can the MDS-G4028 support?
A: It provides 4 embedded Gigabit ports plus 6 slots for optional 4-port modules, for up to 28 Gigabit ports in total.

Q: Can it provide PoE?
A: Yes. Up to 24 PoE 10/100/1000BaseT(X) ports are available when PoE interface modules are fitted, with a 48 VDC PoE system supply.

Q: What power options are available?
A: It has two hot-swappable power module slots. Low-voltage modules accept 24/48 VDC and high-voltage modules accept 110/220 VAC/VDC, allowing redundant supplies.

Q: What operating temperature does this model support?
A: This standard temperature model operates from -10 to 60°C.

Q: How can the switch be mounted?
A: It supports DIN-rail mounting, with optional kits for wall or rack mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
