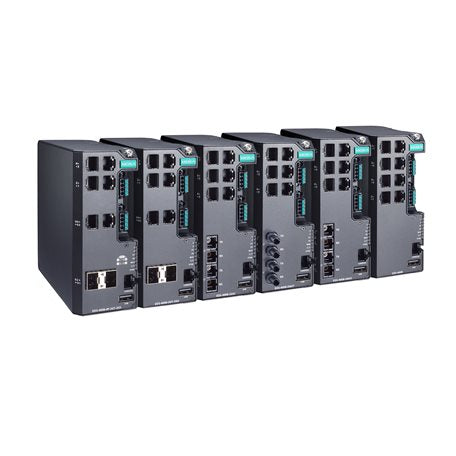

Moxa EDS-4008-4P-2GT-2GS-LVA-T | EDS-4008 Managed PoE Switch, 4x 802.3bt, 2GT+2GS, 48 VDC

Authorised Moxa Partner

SKU:EDS-4008-4P-2GT-2GS-LVA-T

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Stock Status: Enquire

Description

The EDS-4008-4P-2GT-2GS-LVA-T is an industrial Layer 2 managed Gigabit PoE switch with four IEEE 802.3bt PoE ports delivering up to 90 W per port (240 W total PD power), plus two 10/100/1000BaseT(X) RJ45 ports and two 100/1000BaseSFP slots. This 48 VDC (LVA) model is built for -40 to 75°C wide temperature operation in a metal IP40 DIN-rail housing, making it suited to rail, traffic control, power substation and factory automation cabinets.

It supports Turbo Ring v2, Turbo Chain and MRP redundancy, hardware-based IEEE 1588v2 PTP, and EtherNet/IP, Modbus TCP and PROFINET IO Device protocols. IEC 62443-4-2 Security Level 2 certification and a modular power design with a pre-installed PWR-101-LV-BP-I module support secure, resilient industrial networks.

Features

- IEEE 802.3bt PoE ports delivering up to 90 W per port
- Wide operating temperature range of -40 to 75°C
- IEC 62443-4-2 Security Level 2 certified
- Modular power supply design; power parameters are set by the installed power module
- Turbo Ring v2, Turbo Chain and MRP network redundancy
- Hardware-based IEEE 1588v2 PTP with power profiles
- Supports EtherNet/IP, Modbus TCP and PROFINET IO Device protocols
- Approved for rail (EN 50121-4), traffic control (NEMA TS2) and power substation (IEC 61850-3, IEEE 1613) use

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 10/100BaseT(X) 802.3bt PoE ports (RJ45)
- 2 x 10/100/1000BaseT(X) ports (RJ45)
- 2 x 100/1000BaseSFP slots
- Up to 90 W PoE per port, max. 240 W total PD power
- Input voltage 48 VDC (44 to 57 VDC), pre-installed PWR-101-LV-BP-I power module
- Operating temperature -40 to 75°C
- IP40 metal housing, DIN-rail mounting (wall mounting with optional kit)
- MAC table 16 K, 256 VLANs, 1 MB packet buffer, 9.216 KB jumbo frames
- Dimensions 55 x 140 x 122.5 mm, weight 840 g
- MTBF 923,670 hrs (Telcordia SR-332)

FAQs

Q: How much PoE power does the EDS-4008-4P-2GT-2GS-LVA-T provide?
A: Each of the four IEEE 802.3bt PoE ports can deliver up to 90 W, with a maximum of 240 W total PD power consumption at 48 VDC input.

Q: What power input does this model use?
A: It is the 48 VDC (LVA) model with an operating range of 44 to 57 VDC. An input above 52 VDC is recommended for PoE+ output. A PWR-101-LV-BP-I power module is pre-installed.

Q: What uplink options are available?
A: It has two 10/100/1000BaseT(X) RJ45 ports and two 100/1000BaseSFP slots, giving both copper and fibre uplink choices.

Q: Can it operate in extreme temperatures?
A: Yes. The operating temperature range is -40 to 75°C, suitable for outdoor cabinets and harsh industrial environments.

Q: Which industrial protocols and redundancy methods are supported?
A: It supports EtherNet/IP, Modbus TCP and PROFINET IO Device, with Turbo Ring v2, Turbo Chain, MRP, RSTP and Link Aggregation for redundancy.

Q: How is it mounted?
A: It mounts on a DIN rail as standard in an IP40 metal housing. Wall mounting is possible with an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
