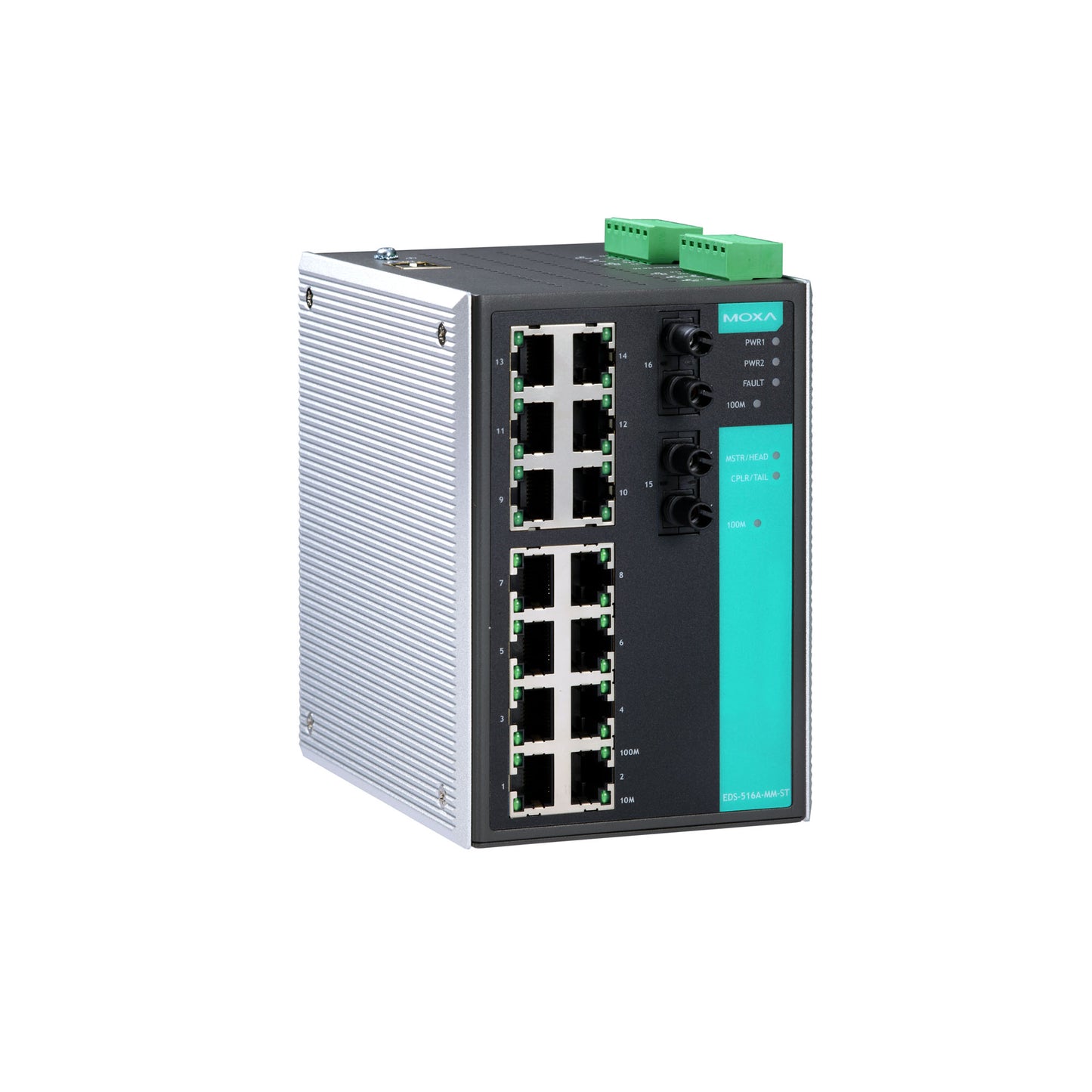

Moxa EDS-516A-MM-ST | EDS-516A 16-Port Managed Switch, 2x 100BaseFX MM ST

Authorised Moxa Partner

SKU:EDS-516A-MM-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDS-516A-MM-ST is a 16-port Layer 2 managed industrial Ethernet switch with 14 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode ST fibre ports. Rated for 0 to 60°C operation in an IP30 metal housing with DIN-rail mounting, it suits control cabinets and factory automation networks that need a fibre uplink alongside copper device connections.

Turbo Ring and Turbo Chain redundancy deliver network recovery in under 20 ms, backed by STP, RSTP and MSTP support. Redundant 12 to 45 VDC power inputs, EtherNet/IP and Modbus TCP support, and security features including SSH, HTTPS, RADIUS and TACACS+ make it well suited to resilient industrial deployments.

Features

- Turbo Ring and Turbo Chain (recovery under 20 ms @ 250 switches) plus STP/RSTP/MSTP for network redundancy
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH for network security
- Management via web browser, CLI, Telnet/serial console, Windows utility and ABC-01 configuration tool
- Supports MXstudio for visualised industrial network management
- Lock port function blocks unauthorised access based on MAC address
- Automatic warning by exception through email and relay output
- EtherNet/IP and Modbus TCP support for industrial automation integration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 14 x 10/100BaseT(X) RJ45 ports with auto negotiation and auto MDI/MDI-X
- 2 x 100BaseFX multi-mode ST ports, OM1 50/125 µm, typical distance 4 km at 1300 nm
- Redundant dual 24 VDC inputs, 12 to 45 VDC operating range
- Input current 0.44 A @ 24 VDC
- Operating temperature 0 to 60 °C, storage -40 to 85 °C
- IP30 metal housing, DIN-rail mounting, wall mounting with optional kit
- MAC table size 8 K, up to 64 VLANs, 2 Mbit packet buffer, 4 priority queues
- IGMP groups: 256
- Console port: RS-232 (8-pin RJ45)
- Dimensions (H x W x D): 94 x 135 x 142.7 mm, weight 1586 g
- Standards: IEEE 802.3, 802.3u, 802.1X, 802.1D-2004, 802.1w, 802.1s, 802.1Q, 802.1p, 802.3x, 802.3ad
- Approvals: UL 508, EN 60950-1, ATEX, Class I Division 2, DNV-GL
- MTBF 247,676 hours (Telcordia)

FAQs

Q: What fibre type does the EDS-516A-MM-ST use?
A: It has 2 x 100BaseFX multi-mode ports with ST connectors, designed for OM1 50/125 µm fibre with a typical distance of 4 km at 1300 nm.

Q: What redundancy protocols does it support?
A: It supports Turbo Ring v1/v2 and Turbo Chain with recovery under 20 ms, as well as STP, RSTP, MSTP, LACP and link aggregation.

Q: How is the switch powered?
A: It has redundant dual 24 VDC inputs with a 12 to 45 VDC operating range, connected through two removable 6-contact terminal blocks, with overload and reverse polarity protection.

Q: What is the operating temperature range?
A: This standard-temperature model operates from 0 to 60 °C. It is intended for controlled industrial environments such as cabinets and plant rooms.

Q: Can it be managed remotely?
A: Yes. Management is available through a web browser, CLI, Telnet or serial console, and the Windows utility. It also supports SNMPv3 and the MXstudio network management suite.

Q: How is it mounted?
A: It is DIN-rail mounted as standard in an IP30 metal housing. Wall mounting is possible with an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
