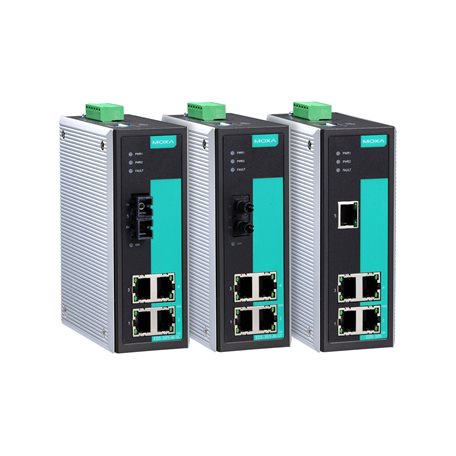

Moxa EDS-305-M-SC | EDS-305 5-Port Unmanaged Switch, 1x 100BaseFX MM SC, 4x RJ45

Moxa EDS-305-M-SC | EDS-305 5-Port Unmanaged Switch, 1x 100BaseFX MM SC, 4x RJ45

Authorised Moxa Partner

SKU:EDS-305-M-SC

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Moxa EDS-305-M-SC is a 5-port industrial unmanaged Ethernet switch from the EDS-305 range, combining four 10/100BaseT(X) RJ45 ports with one 100BaseFX multi-mode SC fibre port. It suits factory floors, transport and utility installations where a copper network needs a fibre uplink back to a control room or another cabinet, and it operates across a standard 0 to 60°C range.

Built in an IP30 metal housing for DIN-rail mounting, the switch accepts redundant dual 12 to 48 VDC power inputs and includes a relay output that warns of power failure or port break. Auto negotiation, auto MDI/MDI-X and broadcast storm protection make deployment plug-and-play with no configuration, and the unit is designed for harsh industrial environments including Class I Division 2 and ATEX Zone 2 locations.

Features

- Multi-mode SC fibre port for a 100BaseFX uplink alongside four RJ45 copper ports
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- Redundant dual 12 to 48 VDC power inputs
- Auto negotiation, full/half duplex and auto MDI/MDI-X on every copper port
- Designed for harsh industrial environments (Class I Division 2 and ATEX Zone 2)
- 100% burn-in tested
- Easy installation on DIN rail or in a distribution box

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 10/100BaseT(X) RJ45 ports
- 1 x 100BaseFX multi-mode SC port
- 5 ports total
- Multi-mode fibre typical distance: 4 km (OM1) / 5 km (50/125 µm, 800 MHz x km)
- Fibre wavelength: 1300 nm typical
- MAC table size: 1K
- Packet buffer size: 384 K
- Processing type: Store and Forward
- Operating voltage: 12 to 48 VDC, redundant dual inputs
- Input current: 0.15 A @ 24 VDC
- Alarm contact: 1 relay output, 1 A @ 24 VDC
- Reverse polarity and overload current protection
- IP30 metal housing
- Dimensions: 53.6 x 135 x 105 mm
- Weight: 790 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Hazardous locations: ATEX, Class I Division 2
- Safety: UL 508, UL 60950-1, CSA C22.2 No. 60950-1
- MTBF: 422,742 hrs (MIL-HDBK-217F)

FAQs

Q: What type of fibre does the EDS-305-M-SC use?
A: It has one 100BaseFX multi-mode port with an SC connector, with a typical reach of 4 km on OM1 or 5 km on 50/125 µm fibre at 1300 nm.

Q: Is the EDS-305-M-SC a managed switch?
A: No. It is an unmanaged switch, so it needs no configuration. It offers auto negotiation, auto MDI/MDI-X and broadcast storm protection out of the box.

Q: What is the operating temperature range?
A: This standard model operates from 0 to 60°C. It is intended for controlled or moderately harsh industrial cabinets rather than extended-temperature locations.

Q: How is the switch powered?
A: It accepts redundant dual 12 to 48 VDC inputs via a removable 6-contact terminal block, with reverse polarity and overload current protection.

Q: How can I mount it?
A: It mounts on a DIN rail as standard. Wall mounting is possible with an optional kit.

Q: Does it support fault alerts?
A: Yes. A relay output (1 A @ 24 VDC) signals power failure or port break to external alarm equipment.
