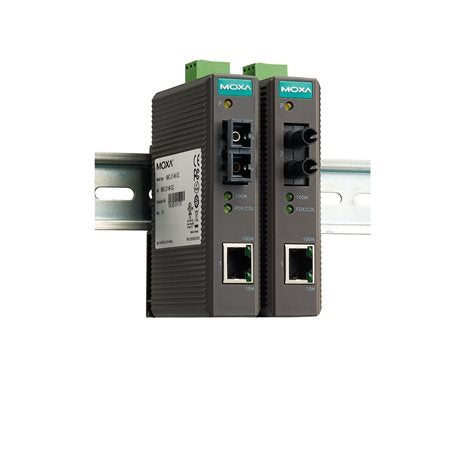

Moxa IMC-21-M-ST Industrial 10/100Baset(X) To 100Basefx Media Converter, Multi Mode Sc Fiber Connector

The Moxa IMC-21-M-ST is a robust industrial media converter designed to seamlessly bridge 10/100BaseT(X) Ethernet to 100BaseFX fiber networks. Engineered for demanding environments, it features a multi-mode SC fiber connector, ensuring reliable high-speed data transfer over extended distances. Its compact design is optimized for space-constrained installations, while its rugged metal housing guarantees durability and longevity in harsh industrial conditions. The IMC-21-M-ST ensures stable and secure network connections, making it ideal for critical communications infrastructure.

REQUEST A QUOTE today, and let us provide you with a prompt and professional response tailored just for you. Experience the highest standard of service at unbeatable prices.

Moxa IMC-21-M-ST Industrial 10/100Baset(X) To 100Basefx Media Converter, Multi Mode Sc Fiber Connector

Features

  • Provides media conversion between 10/100BaseT(X) and 100BaseFX networks.
  • Multi-mode SC fiber connector for flexible network setups.
  • Robust industrial-grade design with a wide operating temperature range.
  • Supports IEEE 802.3/802.3u/802.3x standards.
  • Auto-negotiation for 10/100Mbps and half/full-duplex modes.
  • Link Fault Pass-Through (LFP) function for easy troubleshooting.
  • Supports power input from 12 to 48 VDC, with redundancy and reverse polarity protection.
  • DIN-rail or wall-mountable installation options.

Technical Specifications

  • Standards: IEEE 802.3, 802.3u, 802.3x
  • Fiber Connector Type: SC
  • Fiber Mode: Multi-mode
  • Transmission Distance: Up to 5 km (multi-mode fiber)
  • Wavelength: 1310 nm
  • TX Ports: 1 x 10/100BaseT(X) auto negotiation speed, Auto MDI/MDI-X
  • FX Ports: 1 x 100BaseFX (SC connector)
  • Input Voltage: 12 to 48 VDC (external power supply)
  • Power Consumption: Maximum 4.08 W
  • Operating Temperature: -10°C to 60°C (14°F to 140°F)
  • Storage Temperature: -40°C to 75°C (-40°F to 167°F)
  • Operating Humidity: 5% to 95% (non-condensing)
  • Mounting: DIN-rail or wall mount
  • Dimensions: 30 x 70 x 115 mm (1.18 x 2.75 x 4.53 in)
  • Weight: 135 g (0.29 lb)

Frequent Ask Questions

  • What is the Moxa IMC-21-M-ST media converter?

    The Moxa IMC-21-M-ST is an industrial media converter that allows for the conversion between 10/100BaseT(X) Ethernet and 100BaseFX fiber optic signals. It uses multi-mode SC fiber connectors which are suitable for various industrial networking applications.

  • What is the function of the SC fiber connector?

    The SC fiber connector on the Moxa IMC-21-M-ST allows the device to interface with fiber-optic cables, enabling data transmission over longer distances as compared to copper Ethernet cables. The multi-mode functionality supports a broader range of medium distances in industrial environments.

  • Is the Moxa IMC-21-M-ST suitable for harsh industrial environments?

    Yes, the Moxa IMC-21-M-ST is designed to operate reliably in harsh industrial environments. It features robust construction and industrial-grade components, ensuring reliable performance under challenging conditions such as extreme temperatures and high vibration or shock.

  • What type of power supply does the Moxa IMC-21-M-ST require?

    The Moxa IMC-21-M-ST requires a DC power supply. Typically, this unit can be powered using a voltage input range of 12 to 48 VDC, making it adaptable to various industrial power systems.

  • What are the typical applications for the Moxa IMC-21-M-ST?

    The Moxa IMC-21-M-ST can be used in a variety of industrial applications including factory automation, outdoor monitoring systems, building automation, and anywhere requiring the extension of Ethernet networks over fiber optic cables to achieve longer distance communication.

  • How do I install the Moxa IMC-21-M-ST media converter?

    Installation is straightforward. The media converter can be mounted on a DIN rail or in a control cabinet. Connect the Ethernet cable to the RJ45 port and the fiber optic cable to the SC port. Power the device using the appropriate DC power source.
