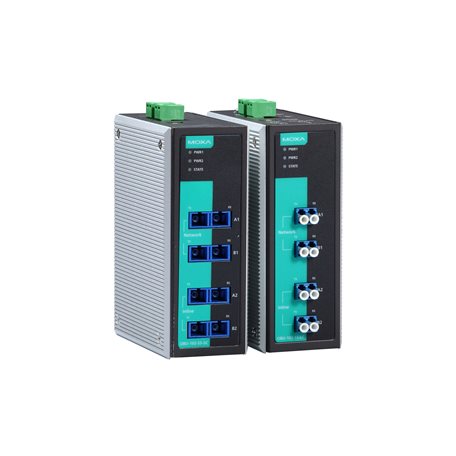

Moxa OBU-102-SS-SC | OBU-102 Optical Fibre Bypass Unit, 2-Channel, Single-Mode SC

Authorised Moxa Partner

SKU:OBU-102-SS-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The OBU-102-SS-SC is a 2-channel optical fibre bypass unit that sits between a network node and the network, keeping fibre traffic flowing to the next node if the node loses power or fails. This single-mode model provides four SC female connectors and supports Fast, Gigabit and 10 Gigabit Ethernet fibre connections, making it a practical way to protect linear topologies from a single point of failure.

Optical switching time is 10 ms maximum with insertion loss of 1.6 dB maximum. Redundant dual 12/24/48 VDC power inputs with reverse polarity protection and a rotary boot delay switch suit industrial deployments, while the IP30 metal housing mounts on a DIN rail and operates from -20 to 70°C.

Features

- Adds bypass relay functionality to any network node, including switches that lack it
- Prevents a single power outage or node failure from taking down a linear topology
- Supports Fast, Gigabit and 10 Gigabit Ethernet fibre connections
- Redundant dual 12/24/48 VDC power inputs with reverse polarity protection
- Rotary switch to configure the boot delay interval
- IP30 metal housing with DIN-rail mounting and optional wall-mount kit

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x single-mode fibre SC female connectors (2 channels)
- Supports 100M/1G/10G Ethernet fibre connections
- Optical switching time: 10 ms (max.)
- Insertion loss: 1.6 dB (max.)
- Boot delay interval: rotary switch, 10 steps of 5 seconds each
- Input voltage: 12/24/48 VDC, redundant dual inputs
- Input current: 0.1 A @ 48 VDC
- Reverse polarity protection supported
- Housing: metal, IP30
- Dimensions: 53.6 x 135 x 105 mm
- Weight: 700 g
- Installation: DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -20 to 70°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Safety: UL 508
- EMI: CISPR 32, FCC Part 15B Class A

FAQs

Q: What does the OBU-102-SS-SC do?
A: It is an optical fibre bypass unit installed between a network node and the network. If the node loses power or fails, it keeps fibre traffic flowing to the next node.

Q: Which fibre type and connectors does this model use?
A: This model has four single-mode fibre SC female connectors, providing two channels.

Q: Which Ethernet speeds are supported?
A: It supports Fast Ethernet (100M), Gigabit (1G) and 10 Gigabit (10G) fibre connections.

Q: How fast does the bypass switch over?
A: Optical switching time is 10 ms maximum, with insertion loss of 1.6 dB maximum.

Q: What power inputs does it accept?
A: It has redundant dual 12/24/48 VDC power inputs with reverse polarity protection.

Q: How is the OBU-102-SS-SC mounted?
A: It mounts on a DIN rail, or on a wall with the optional wall-mount kit. The housing is IP30 metal and rated for -20 to 70°C operation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
