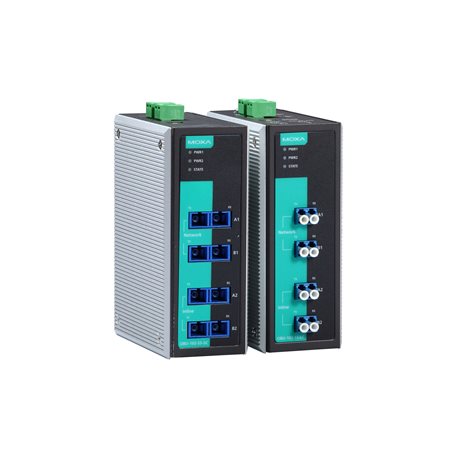

Moxa OBU-102-SS-LC | OBU-102 Optical Fiber Bypass Unit, Single-Mode, 4x LC

Authorised Moxa Partner

SKU:OBU-102-SS-LC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa OBU-102-SS-LC is a 2-channel optical fibre bypass unit with four single-mode LC ports, built to add relay bypass to any network switch that lacks it. If a node loses power, traffic passes straight through to the next node in a linear topology, keeping the rest of the network running. It supports Fast, Gigabit and 10 Gigabit Ethernet fibre connections with an optical switching time of 10 ms maximum.

The unit is housed in an IP30 metal enclosure rated for -20 to 70°C operation and mounts on a DIN-rail, with wall mounting available using an optional kit. Redundant dual 12/24/48 VDC power inputs with reverse polarity protection and a low 0.72 W power draw make it well suited to industrial networks where uptime matters.

Features

- Bypass relay keeps the rest of the network running when a node fails or loses power
- Supports Fast, Gigabit and 10 Gigabit Ethernet fibre connections
- Redundant dual 12/24/48 VDC power inputs
- IP30 metal housing
- 20 to 70°C operating temperature range
- DIN-rail mounting capability
- Ultra-low power consumption of 0.72 W

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2-channel optical fibre bypass unit
- 4 x single-mode fibre, LC female connectors
- Supports Fast, Gigabit and 10 Gigabit Ethernet fibre connections
- Optical switching time: 10 ms (max.)
- Insertion loss: 1.6 dB (max.)
- Redundant dual 12/24/48 VDC power inputs
- Input current: 0.1 A @ 48 VDC
- Power consumption: 0.72 W
- Reverse polarity protection supported
- Metal housing, IP30
- Dimensions: 53.6 x 135 x 105 mm
- Weight: 700 g
- DIN-rail mounting; wall mounting with optional kit
- Operating temperature: -20 to 70°C
- Rotary switch boot delay: 10 steps of 5 seconds each
- Standards: EN 55032/24, IEC 60068, IEC 61000, UL 508

FAQs

Q: What does the Moxa OBU-102-SS-LC do?
A: It is a 2-channel optical fibre bypass unit. If a connected node loses power, the relay passes traffic through to the next node in a linear topology so the rest of the network keeps running.

Q: What fibre type and connectors does this model use?
A: This SKU has four single-mode fibre ports with LC female connectors.

Q: Which Ethernet speeds does it support?
A: It supports Fast, Gigabit and 10 Gigabit Ethernet fibre connections.

Q: How is the OBU-102-SS-LC powered?
A: It has redundant dual 12/24/48 VDC power inputs with reverse polarity protection and draws 0.72 W.

Q: How is it mounted and what environment is it rated for?
A: It mounts on a DIN-rail, with wall mounting available using an optional kit. The IP30 metal housing is rated for -20 to 70°C operation.

Q: How fast does the bypass switch over?
A: The optical switching time is 10 ms maximum, with an insertion loss of 1.6 dB maximum.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
