Moxa TCC-80 | Series Port-Powered RS-232 to RS-422/485 Converter, Non-isolated, Terminal

Authorised Moxa Partner

SKU:TCC-80

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

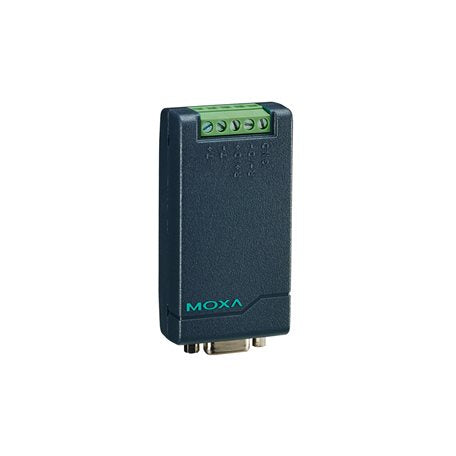

The Moxa TCC-80 is a port-powered RS-232 to RS-422/485 serial converter that provides complete signal conversion without needing an external power supply. It supports RS-422, 2-wire RS-485 and 4-wire RS-485, with automatic data direction control, so it drops straight into existing serial links. This non-isolated model connects to the RS-422/485 side through a terminal block, and the RS-232 side through a DB9 female connector.

The converter supports baudrates from 50 bps to 921.6 kbps, including non-standard baudrates, and includes a built-in 120-ohm termination resistor option for long RS-485 runs. It draws power from the RS-232 port, with an optional 5 to 12 VDC external input available. The compact desktop housing measures 42 x 80 x 22 mm and weighs 50 g, making it well suited to bench setups, field commissioning and small serial networks.

Features

- Port powered, so no external power source is required
- External 5 to 12 VDC power supported when needed
- Converts RS-422 as well as 2-wire and 4-wire RS-485
- Automatic data direction control for RS-485
- Automatic baudrate detection
- Built-in 120-ohm termination resistor option
- Compact desktop form factor for easy deployment

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- RS-232 (DB9 female) to RS-422, 2-wire RS-485 and 4-wire RS-485
- Terminal block connector on the RS-422/485 side
- Non-isolated design (2 kV isolation on TCC-80I models only)
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- RS-485 data direction control: ADDC (automatic data direction control)
- RS-485 terminator options: N/A, 120 ohms, 120 kilo-ohms
- Power: port powered, optional 5 to 12 VDC input via power jack
- Input current: 10 mA @ 5 VDC
- Overload current protection supported
- Housing: plastic top cover, metal bottom plate, IP30
- Dimensions: 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
- Weight: 50 g (0.11 lb)
- Operating temperature: 0 to 60 C (32 to 140 F)
- Storage temperature: -20 to 75 C (-4 to 167 F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/24, FCC Part 15B Class A
- Safety: EN 60950-1, IEC 60950-1
- MTBF: 2,781,161 hrs (Telcordia)
- Package contents: converter, USB power cord 50 cm, quick installation guide, warranty card

FAQs

Q: Does the Moxa TCC-80 need an external power supply?
A: No. It is powered from the RS-232 port, although an optional 5 to 12 VDC external supply can be connected through the power input jack if required.

Q: Which serial standards does the TCC-80 support?
A: It converts RS-232 to RS-422, 2-wire RS-485 or 4-wire RS-485. The RS-232 side uses a DB9 female connector and the RS-422/485 side uses a terminal block.

Q: What is the difference between the TCC-80 and the TCC-80I?
A: The TCC-80 is non-isolated. The TCC-80I variants add 2 kV isolation for installations needing electrical isolation between the serial sides.

Q: Do I need to configure data direction for RS-485?
A: No. The converter uses ADDC (automatic data direction control), so the RS-485 transmit direction is handled automatically without software or RTS control.

Q: What baudrates does the TCC-80 support?
A: It supports 50 bps to 921.6 kbps, including non-standard baudrates.

Q: Can it terminate an RS-485 bus?
A: Yes. It includes a built-in 120-ohm termination resistor option, as well as 120 kilo-ohm pull options, for RS-485 line termination.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
