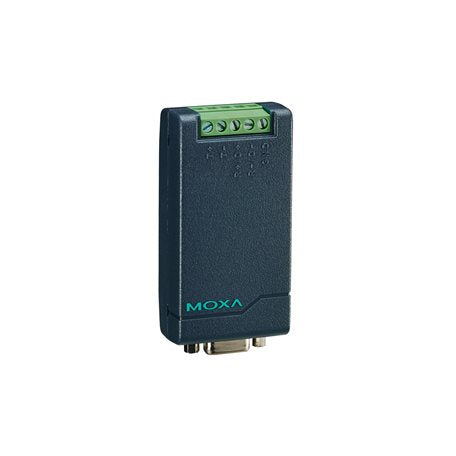

Moxa TCC-80I | Port-Powered RS-232 to RS-422/485 Converter, 2.5 kV Isolated

Authorised Moxa Partner

SKU:TCC-80I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TCC-80I is a port-powered RS-232 to RS-422/485 serial converter designed for industrial and commercial serial links that need reliable signal conversion without an external power supply. It adds 2.5 kV isolation to protect connected equipment, and a LED port power indicator confirms the unit is drawing enough power from the host port.

The converter supports 2-wire half-duplex RS-485 and 4-wire full-duplex RS-422/485, with automatic data direction control for RS-485 so no manual flow control is needed. A compact IP30 desktop design with operation from 0 to 60 C makes it a practical choice for extending serial runs in control cabinets, labs and equipment rooms.

Features

- Converts between RS-232 and RS-422/485 without an external power supply
- Supports 2-wire half-duplex RS-485 and 4-wire full-duplex RS-422/485
- Automatic data direction control for RS-485 removes the need for manual flow control
- LED port power indicator shows whether the unit is receiving enough power
- 2.5 kV isolation helps protect connected serial equipment

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Conversion: RS-232 to RS-422/485
- Isolation voltage: 2.5 kV
- Power: port-powered, 5-12 VDC, no external supply
- RS-485 modes: 2-wire half-duplex and 4-wire full-duplex
- RS-422: 4-wire full-duplex
- Data direction control: automatic for RS-485
- Indicator: LED port power indicator
- Number of ports: 2
- Mounting type: desktop
- IP rating: IP30
- Operating temperature: 0 to 60 C

FAQs

Q: Does the Moxa TCC-80I need an external power adapter?
A: No. The TCC-80I is port-powered and draws its power from the RS-232 port, so no external power supply is required.

Q: What is the difference between the TCC-80I and the TCC-80?
A: The TCC-80I adds 2.5 kV isolation and an LED port power indicator that shows whether the unit is receiving enough power from the host port.

Q: Which RS-485 and RS-422 wiring modes does it support?
A: It supports 2-wire half-duplex RS-485 and 4-wire full-duplex RS-422/485.

Q: Do I need to manage RS-485 data direction manually?
A: No. The converter provides automatic data direction control for RS-485, enabling the driver when TxD output is sensed.

Q: What operating conditions is the TCC-80I rated for?
A: It operates from 0 to 60 C and has an IP30 rating, intended for desktop use in controlled indoor environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
