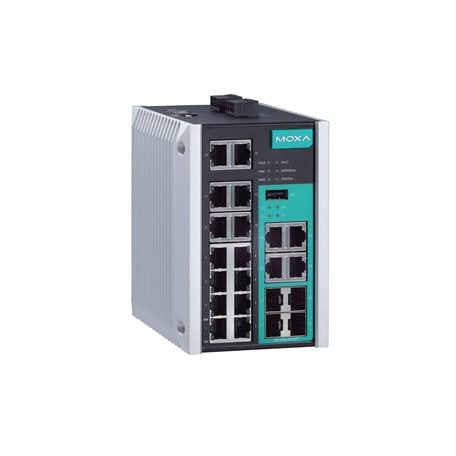

Moxa EDS-518E-SS-SC-4GTXSFP-T | EDS-518E Managed Industrial Switch, 2x SM SC, 4x Gigabit Combo

Authorised Moxa Partner

SKU:EDS-518E-SS-SC-4GTXSFP-T

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Stock Status: Enquire

Description

The Moxa EDS-518E-SS-SC-4GTXSFP-T is a Layer 2 managed industrial Ethernet switch with 12 Fast Ethernet RJ45 ports, 4 Gigabit combo ports (RJ45 or SFP) and 2 single-mode 100BaseFX SC fibre ports. It suits harsh-environment networks such as factory automation, power substations, rail and traffic control, with an operating range of -40 to 75°C and redundant dual power inputs.

The single-mode SC ports reach up to 40 km typical over 1310 nm fibre, while the Gigabit combo ports let you choose copper or SFP fibre uplinks. Turbo Ring, Turbo Chain, RSTP, MSTP and MRP provide network redundancy, and EtherNet/IP, Modbus TCP and PROFINET IO Device support integrate it with industrial automation systems. The IP30 metal housing mounts on a DIN rail.

Features

- Industrial-grade Layer 2 management with Turbo Ring, Turbo Chain, RSTP, MSTP and MRP redundancy
- Gigabit combo ports allow a choice of copper or SFP fibre uplinks
- Single-mode SC fibre ports for long-distance links up to 40 km typical
- Redundant dual power inputs with overload and reverse polarity protection
- Supports EtherNet/IP, Modbus TCP and PROFINET IO Device protocols
- Security features including HTTPS/SSL, SSH, SNMPv3, RADIUS, TACACS+, Sticky MAC and MAC ACL
- Wide -40 to 75°C operating temperature range
- Approvals including IEC 61850-3, IEEE 1613, EN 50121-4, NEMA TS2, ATEX, Class I Division 2 and maritime (LR, ABS, DNV, NK)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x 10/100BaseT(X) RJ45 ports, auto negotiation, auto MDI/MDI-X
- 4 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports
- 2 x 100BaseFX single-mode SC ports, 1310 nm, up to 40 km typical
- Link budget 29 dB, TX power 0 to -5 dBm, RX -3 to -34 dBm
- MAC table size 16 K, up to 64 VLANs, 2048 IGMP groups
- Packet buffer 1 Mbits, 4 priority queues
- 12/24/48/-48 VDC redundant dual power inputs, 9.6 to 60 VDC operating
- Input current 0.41 A @ 24 VDC
- 1 relay alarm output (1 A @ 24 VDC), 1 digital input
- USB Type A storage port, USB-serial console port
- IP30 metal housing, 94 x 135 x 137 mm, 1630 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature -40 to 75°C, storage -40 to 85°C
- 5 to 95% non-condensing humidity
- MTBF 806,427 hours
- 5-year warranty

FAQs

Q: What fibre type do the SC ports on the EDS-518E-SS-SC-4GTXSFP-T use?
A: The two 100BaseFX SC ports are single-mode, operating at 1310 nm with a typical distance of up to 40 km and a 29 dB link budget.

Q: Can the Gigabit combo ports be used with SFP modules?
A: Yes. Each of the 4 combo ports can be used as a 10/100/1000BaseT(X) RJ45 port or as a 100/1000BaseSFP port, so you can mix copper and fibre uplinks.

Q: What redundancy protocols does this switch support?
A: It supports Turbo Ring v1/v2, Turbo Chain, RSTP, STP, MSTP, MRP and Link Aggregation.

Q: Which industrial automation protocols are supported?
A: EtherNet/IP, Modbus TCP and PROFINET IO Device are supported.

Q: What power input does it require?
A: It has redundant dual inputs for 12/24/48/-48 VDC, with an operating range of 9.6 to 60 VDC, via two removable 4-contact terminal blocks.

Q: How is the switch mounted and what environment is it rated for?
A: It mounts on a DIN rail (wall mounting with an optional kit) in an IP30 metal housing, and operates from -40 to 75°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
