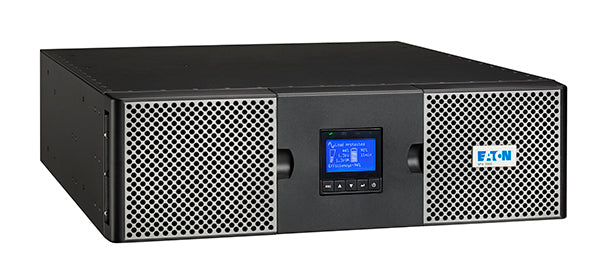

• Eaton 9PX3000IRTMR UPS with perforated front panels and blue display
1 1

Eaton

Eaton 9PX3000IRTMR | 9PX Marine Online Rack/Tower UPS, 3000VA, DNV Ready

Eaton 9PX3000IRTMR | 9PX Marine Online Rack/Tower UPS, 3000VA, DNV Ready

Authorised Eaton Partner

9PX3000IRTMR

Stock Status: Enquire

$7,330.98 inc. GST
$6,664.53 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton 9PX Marine online double-conversion UPS delivers 3000VA/3000W of unity power factor protection in a 3U rack/tower form factor. This marine bundle includes the 9PXMF3KI EMC filter and is DNV-GL type approved, with coated circuit boards and high-temperature compatibility for marine and offshore platforms. It is a 240V model with an IEC C20 (16A) input and 10 outlets, made up of 8 x IEC C13 and 2 x IEC C19.

Online double-conversion topology continuously monitors and regulates voltage and frequency, while an internal bypass keeps the load running in the event of an internal fault. A graphical LCD, USB and RS232 communication, and a slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards support monitoring, and up to 4 external battery modules extend runtime. A rack-mounting kit is included, so the UPS can be deployed as either a rack or tower unit.

Features

- Unity power factor (VA=W) delivers 11% more power than other UPSs in its class
- DNV-GL type approved; the marine filter (EMC) is needed for IEC/EN 60945 compliance
- Coated boards and high-temperature compatibility for marine and offshore environments
- Online double-conversion technology constantly monitors and regulates voltage and frequency
- Internal bypass keeps the load running in case of an internal fault
- Rack-mounting kit included, so it can be used as a rack or tower unit
- Graphical LCD display
- Load segment control allows prioritised shutdown of non-essential equipment during outages
- Eaton ABM battery management technology
- Up to 4 external hot-swappable battery modules for longer runtime

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Replacement Battery Finder

Technical Specifications

- 3000VA / 3000W (unity power factor)
- Online double-conversion topology
- Single phase, 240V
- Input: IEC C20 (16A)
- Output: 8 x IEC C13 (10A) + 2 x IEC C19 (16A)
- Form factor: Rack/Tower, 3U
- UPS dimensions (H x W x D): 130 x 440 x 485 mm
- UPS weight: 27.4 kg
- Marine filter 9PXMF3KI: 86 x 440 x 120 mm, 5 kg
- Communication: 1 USB port and 1 RS232 serial port
- Remote control: terminal blocks for remote ON/OFF, remote power off and output relay
- 1 management card slot for Network-M2, Network-MS, ModBus-MS or Relay-MS card
- Supports up to 4 external battery modules
- DNV-GL approved, marine filter included

FAQs

Q: What is included in the 9PX3000IRTMR marine bundle?
A: The bundle includes the 9PX 3kVA online UPS and the 9PXMF3KI marine EMC filter, along with the rack-mounting kit.

Q: Is this UPS DNV approved?
A: Yes. It is DNV-GL type approved, and the included marine filter is needed for IEC/EN 60945 compliance.

Q: What outlets does the UPS provide?
A: It provides 10 outlets: 8 x IEC C13 (10A) and 2 x IEC C19 (16A), fed from an IEC C20 (16A) input at 240V.

Q: Can I extend the runtime?
A: Yes. It supports up to 4 external hot-swappable battery modules for longer runtime.

Q: Can it be installed as a rack or tower unit?
A: Yes. It is a 3U unit and the rack-mounting kit is included, so it can be used in either orientation.

Q: Can I add network monitoring?
A: Yes. The management card slot accepts a Network-M2, Network-MS, ModBus-MS or Relay-MS card, and USB and RS232 ports are built in.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Replacement Battery Finder

Looking for an Eaton UPS replacement battery?

Use the official Eaton UPS Battery Finder tool to identify compatible battery replacement kits and genuine Eaton battery cartridges for your specific UPS model in Australia.

Find My Replacement Battery
