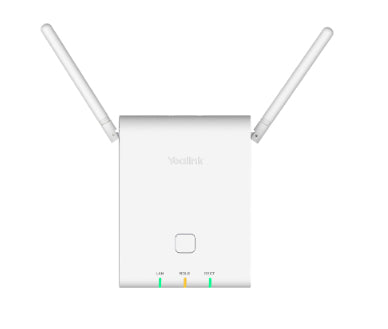

Yealink W90DM | W90 DECT IP Multi-Cell Manager, 60 Bases, White, PoE

Name: Yealink W90DM | W90 DECT IP Multi-Cell Manager, 60 Bases, White, PoE
Brand: Yealink
SKU: W90DM
Price: 470.58 AUD
Availability: InStock

Authorised Yealink Partner

SKU:W90DM

In stock:5

$470.58 inc. GST

$427.80 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Yealink W90DM is the DECT Manager for the W90 DECT IP Multi-Cell System, a dedicated management unit with no radio of its own. It centrally manages W90B base stations, handset accounts, synchronisation and roaming for large sites, and at least one is required per site. Each W90DM supports up to 60 W90B base stations, 250 handsets, 250 SIP accounts and 250 parallel calls, and powers from a standard PoE (IEEE 802.3af) port in white.

Air and LAN synchronisation delivers seamless handover and roaming across the deployment, with DECT coverage of up to 50 m indoors and 300 m outdoors when paired with W90B base stations. The W90DM is compatible with the W53H, W56H, W59R, W73H and CP930W handsets and the DD Phone. Security support includes SRTP, SIPS, TLS, LDAP(s) and HTTPS, with Opus HD voice and the Yealink DECT Deployment Toolkit for streamlined rollout.

Features

- Air and LAN synchronisation for stable roaming
- Seamless handover and roaming across base stations
- Centralised configuration and account storage
- DECT Deployment Toolkit and IP discovery tool for easy deployment
- Compatible with Yealink Virtual Integrator Manager
- Supports IPv6 and PoE
- HD voice with Opus codec

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: DECT Manager (no radio), White
- Manages up to 60 W90B base stations per DM (system scales to 10 DMs / 600 bases)
- Up to 250 handsets, 250 SIP accounts and 250 parallel calls per DM
- Interface: 1 x RJ45 10/100M Ethernet port
- Power: PoE IEEE 802.3af Class 1
- LED indicators: 3 (DECT, Role, LAN)
- DECT technology: CAT-iq 2.0
- Audio codec: Opus
- Security: SRTP, SIPS, TLS, LDAP(s), HTTPS
- Phonebook: XML / LDAP / Remote Phonebook, XSI Directory / XSI Call Log
- DECT coverage up to 50 m indoors / 300 m outdoors (with W90B)
- Mounting: Wall mount
- Compatible with W53H, W56H, W59R, W73H, CP930W and DD Phone
- Package contents: W90DM, expansion screws, quick start guide

FAQs

Q: Does the W90DM include a DECT radio?
A: No. The W90DM is a DECT Manager only and has no radio. It manages W90B base stations, which provide the DECT coverage, and at least one W90DM is required per site.

Q: How many base stations and handsets can one W90DM manage?
A: A single W90DM manages up to 60 W90B base stations, 250 handsets, 250 SIP accounts and 250 parallel calls. The wider system scales to 10 DMs and 600 base stations.

Q: Which handsets are compatible with the W90DM?
A: The W90DM works with the Yealink W53H, W56H, W59R, W73H and CP930W handsets, as well as the DD Phone.

Q: How is the W90DM powered?
A: It is powered over Ethernet using IEEE 802.3af (Class 1) through its single RJ45 10/100M port, so a PoE switch or injector is all that is needed.

Q: Can the W90DM be wall mounted?
A: Yes. It supports wall mounting, and expansion screws are included in the package.

Q: What security protocols does the W90DM support?
A: It supports SRTP, SIPS, TLS, LDAP(s) and HTTPS for secure signalling, media and directory access.
