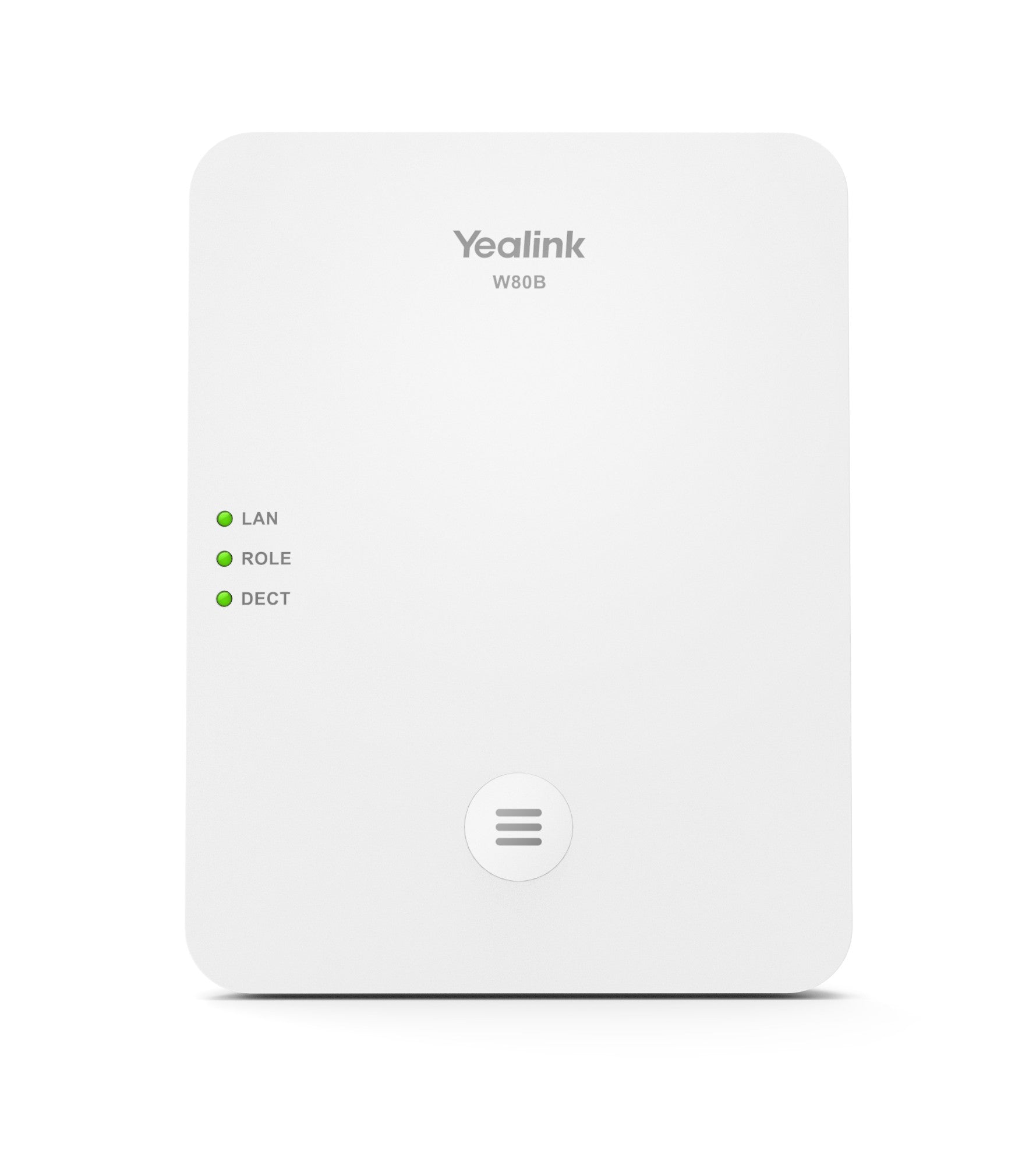

Yealink W80B-DM | W80 DECT IP Multi-Cell Base Station, DECT Manager, AU Plug

Name: Yealink W80B-DM | W80 DECT IP Multi-Cell Base Station, DECT Manager, AU Plug
Brand: Yealink
SKU: W80B-DM
Price: 407.33 AUD
Availability: InStock

Authorised Yealink Partner

SKU:W80B-DM

In stock:9

$407.33 inc. GST

$370.30 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Yealink W80B-DM is a DECT IP multi-cell base station that also performs the DECT Manager role, coordinating a W80 multi-cell system of up to 30 base stations, 100 handsets and 100 SIP accounts with up to 100 parallel calls. This DECT Manager (DM) unit ships with an AU plug adapter and suits offices, warehouses and campuses that need seamless handover and roaming across a wide site.

It connects over a single 10/100M RJ45 port with PoE (IEEE 802.3af Class 1), is wall mountable and is managed from a single web portal. Sync over the air keeps the cells aligned, Sync Level 1 base backup lets another base take over if the Level 1 base goes offline, and TLS, SRTP and DECT encryption protect calls. It works with Yealink W56H, W57R, W59R, W71H, W73H, W74H and W78H handsets, plus WH62/WH63 DECT headsets.

Features

- Seamless handover and roaming across up to 30 base stations
- Up to 100 parallel calls, 100 handsets and 100 SIP accounts per system
- Sync Level 1 base backup: another base takes over if the Level 1 base goes offline
- No-perception handset firmware upgrade for W73H, W78H, W57R and W59R
- WH62/WH63 DECT headset registration
- DECT encryption, TLS and SRTP for secure calls
- Zero-touch provisioning on multicast networks, with manual DECT Manager IP setup for non-multicast networks
- Auto-provisioning and RPS for mass deployment, managed from a single web portal
- Compatible with Yealink W56H, W57R, W59R, W71H, W73H, W74H, W78H, CP930W, CP935W and DD Phone
- Yealink Deployment Toolkit helps find the right base station positions

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Role: DECT Manager (DM) multi-cell DECT IP base station
- Simultaneous calls per system: up to 100
- Base stations per system: up to 30
- Handsets: up to 100
- VoIP accounts: up to 100
- Calls per base: up to 8 wideband (4 active handsets) or up to 8 narrowband
- Simultaneous calls per handset: up to 2
- Synchronisation: sync over the air with seamless handover and roaming
- Interface: 1 x RJ45 10/100M Ethernet
- Power: PoE IEEE 802.3af Class 1, or external AC adapter (AC 100-240 V input, DC 5 V/1.2 A output)
- DECT range: 20-50 m indoors, up to 300 m outdoors in ideal conditions
- DECT frequency bands: 1880-1900 MHz (Europe), 1920-1930 MHz (US)
- Wideband codecs: G.722, AMR-WB (optional)
- Narrowband codecs: PCMU (G.711u), PCMA (G.711A), G.726, G.729, G.729A, iLBC, AMR-NB (optional)
- Network: SIP v1 (RFC2543) and v2 (RFC3261), VLAN 802.1Q/802.1P, DSCP, 802.1x, LLDP, STUN, UDP/TCP/TLS, static/DHCP, IPv6
- Security: OpenVPN, TLS 1.0/1.2, HTTPS, SRTP, digest authentication, AES-encrypted config files
- Provisioning: TFTP/FTP/HTTP/HTTPS/RPS auto-provisioning, PnP, handset OTA upgrade
- Phonebooks: local (up to 100 entries per handset), remote, LDAP, XML, BroadSoft directory (Xsi)
- LED indicators: 3 (DECT, Role, LAN power/network status)
- Dimensions: 130 x 100 x 25.1 mm
- Colour: Pearl White, wall mountable
- Operating temperature: -10 to +45 C, humidity 10-95%

FAQs

Q: What does the DECT Manager (DM) role do?
A: The W80B-DM acts as the DECT Manager for a W80 multi-cell system, coordinating up to 30 base stations and up to 100 handsets and SIP accounts, with up to 100 parallel calls and seamless roaming between bases.

Q: How many handsets and calls does a W80 system support?
A: A W80 multi-cell system supports up to 100 handsets, 100 SIP accounts and up to 100 simultaneous calls. Each base handles up to 8 wideband calls (4 active handsets) or up to 8 narrowband calls.

Q: How is the W80B-DM powered?
A: It supports PoE (IEEE 802.3af Class 1) over its 10/100M RJ45 port. An external AC adapter with an AU plug can be used where PoE is unavailable.

Q: Which handsets and devices are compatible?
A: It works with Yealink W56H, W57R, W59R, W71H, W73H, W74H and W78H handsets, CP930W and CP935W conference phones, the DD Phone, and WH62/WH63 DECT headsets.

Q: What happens if the Level 1 synchronisation base goes offline?
A: With Sync Level 1 base backup, another base station takes over the Level 1 role so the multi-cell system keeps operating.

Q: How are the base stations deployed and managed?
A: They support auto-provisioning via TFTP, FTP, HTTP, HTTPS or RPS, plug-and-play, and management from a single web portal. Zero-touch provisioning works on multicast networks, while non-multicast networks need the DECT Manager IP set manually.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
