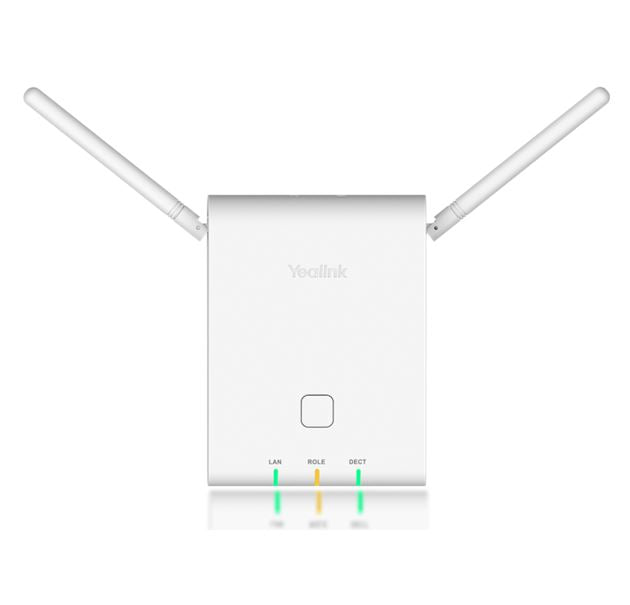

Yealink W90B-DM | W90 DECT IP Multicell Manager + Base Station, PoE

Name: Yealink W90B-DM | W90 DECT IP Multicell Manager + Base Station, PoE
Brand: Yealink
SKU: W90B-DM
Price: 470.58 AUD
Availability: InStock

Authorised Yealink Partner

SKU:W90B-DM

In stock:7

$470.58 inc. GST

$427.80 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The W90B-DM is a DECT IP multicell manager and base station bundle that forms the core of the Yealink W90 DECT IP Multi-Cell System. It pairs a W90DM DECT Manager with a W90B base station, and a single system scales to 60 base stations, 250 handsets, 250 SIP accounts and up to 250 simultaneous calls, with seamless roaming and handover across the site. This bundle is powered by PoE and does not include a power adapter.

Synchronisation is available over the air or via LAN, and LAN Sync keeps roaming stable in difficult RF environments. Rotatable external antennas, wall mounting and HD voice support flexible coverage in offices, warehouses and campuses. It is compatible with Yealink W53H, W56H, W59R and CP930W handsets and the DD Phone. Yealink DECT is not compatible with third-party DECT devices.

Features

- Scales to 60 base stations and 250 handsets in a single multicell system
- Seamless roaming and handover between base stations
- LAN Sync keeps roaming stable in difficult RF environments
- Rotatable external antennas for extended range and flexible coverage
- HD voice with wideband audio
- DECT Deployment Toolkit, IP discovery tool and auto sync level for easier deployment
- Supports XSI Directory/Call Log and BroadWorks feature key synchronisation
- PoE powered with wall mounting

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Bundle: W90DM DECT Manager with W90B DECT base station
- Up to 60 base stations per multicell system
- Up to 250 handsets and 250 SIP/VoIP accounts per system
- Up to 250 simultaneous calls per system
- Up to 8 wideband calls per base (4 active handsets)
- Up to 2 simultaneous calls per handset
- Synchronisation: over the air and LAN
- Wideband codecs: G.722, AMR-WB (optional)
- Narrowband codecs: PCMU, PCMA, G.726, G.729, iLBC, AMR-NB (optional)
- SIP v1 (RFC2543) and v2 (RFC3261)
- Ethernet: 1 x RJ45 10/100M
- Power: PoE IEEE 802.3af Class 1, power adapter not included
- DECT range: 30-50 m indoors, up to 300 m outdoors in ideal conditions
- Security: TLS 1.0/1.1/1.2, HTTPS, SRTP, OpenVPN, 802.1x, AES-encrypted config files
- Provisioning: TFTP, FTP, HTTP, HTTPS, RPS, PnP, with handset OTA upgrade
- DECT frequency bands: 1880-1900 MHz and 1920-1930 MHz
- LED indicators: LAN, Role, DECT
- Dimensions: 134 x 100 x 28 mm, Pearl White
- Operating temperature: 0 to +40 C, humidity 10-95%

FAQs

Q: What is included in the Yealink W90B-DM bundle?
A: The W90B-DM combines a W90DM DECT Manager with a W90B DECT base station, along with expansion screws and a quick start guide. A power adapter is not included, as the unit is designed to be powered over PoE.

Q: How many base stations, handsets and calls can one W90 system support?
A: A single W90 multicell system supports up to 60 base stations, 250 handsets, 250 SIP/VoIP accounts and up to 250 simultaneous calls.

Q: How is the W90B-DM powered?
A: It is powered by PoE (IEEE 802.3af, Class 1) through its single RJ45 10/100M port. An optional external AC adapter (5V/1.2A) is sold separately.

Q: Which handsets are compatible with the W90 system?
A: The W90 system works with Yealink W53H, W56H, W59R and CP930W handsets and the DD Phone. Yealink DECT is not compatible with third-party DECT devices.

Q: How does synchronisation work between base stations?
A: Base stations can synchronise over the air or via LAN. LAN Sync is recommended in difficult RF environments to keep roaming and handover stable.

Q: What coverage range can I expect?
A: Typical DECT range is 30-50 m indoors and up to 300 m outdoors in ideal conditions. Rotatable external antennas help extend coverage and adjust to the site.
