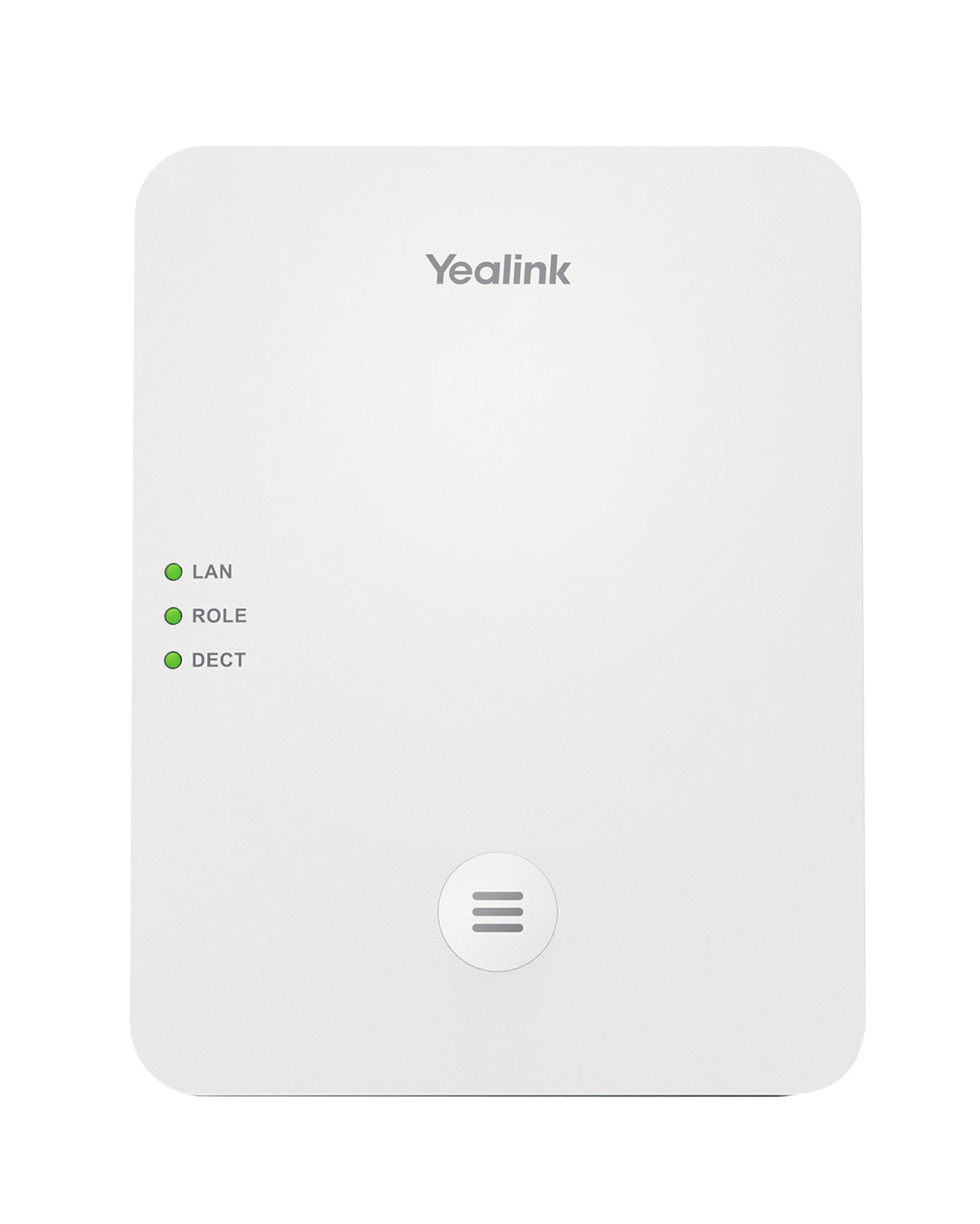

Yealink W80DM | W80 DECT IP Multi-Cell Manager, 30 Base Stations, PoE

Name: Yealink W80DM | W80 DECT IP Multi-Cell Manager, 30 Base Stations, PoE
Brand: Yealink
SKU: W80DM
Price: 407.33 AUD
Availability: InStock

Authorised Yealink Partner

SKU:W80DM

In stock:12

$407.33 inc. GST

$370.30 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Yealink W80DM DECT manager is the central controller of the W80 DECT IP multi-cell system, built for businesses that need seamless wireless voice coverage across large offices, warehouses and campuses. It manages synchronisation, SIP account registration and centralised configuration for up to 30 W80B base stations, supporting up to 100 handsets, 100 SIP accounts and 100 parallel calls. This is the DECT Manager unit only and requires a W80B base station for the system to work.

The W80DM can be powered by PoE (IEEE 802.3af) or a 5V/1.2A AC adapter and is wall mountable. It supports seamless handover and roaming between base stations, Sync Level 1 base backup and no-perception handset upgrades. It works with Yealink W56H, W53H, W57R, W59R, W73H and W78H handsets, CP930W and CP935W conference phones and the DD Phone, and is not compatible with third-party DECT devices.

Features

- Seamless handover and roaming between base stations
- Centralised configuration, deployment and account storage
- Base station synchronisation management within clusters
- Sync Level 1 base backup
- No-perception handset upgrade
- Grayscale upgrade for handsets
- HD wideband voice with full-duplex audio
- LED status indicators
- PoE powering option
- Not compatible with third-party DECT devices

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: DECT Manager (requires W80B base station)
- Base stations supported: up to 30
- Handsets supported: up to 100
- SIP accounts: up to 100
- Parallel calls: up to 100
- DECT radio coverage: up to 50 m indoors, 300 m outdoors
- Power: PoE IEEE 802.3af (class 1) or 5V/1.2A AC adapter
- Operating temperature: 0 to 40 C (32 to 104 F)
- Relative humidity: 5% to 90%, non-condensing
- Mounting: wall mount
- Colour: White
- Phonebook support: XML, LDAP, Remote Phonebook, Xsi Directory
- IPv6 supported
- Security: DECT encryption, TLS, SRTP
- Compatible devices: Yealink W56H, W53H, W57R, W59R, W73H, W78H, CP930W, CP935W, DD Phone

FAQs

Q: Does the W80DM work on its own?
A: No. The W80DM is the DECT manager only and requires at least one W80B base station for the W80 multi-cell system to work.

Q: How many base stations and handsets can the W80DM manage?
A: It manages up to 30 W80B base stations and supports up to 100 handsets, 100 SIP accounts and 100 parallel calls.

Q: Which handsets and devices are compatible?
A: Yealink W56H, W53H, W57R, W59R, W73H and W78H handsets, CP930W and CP935W conference phones and the DD Phone are supported. Third-party DECT devices are not compatible.

Q: How is the W80DM powered?
A: It can be powered by PoE (IEEE 802.3af, class 1) or with a 5V/1.2A AC adapter.

Q: What DECT coverage does the system provide?
A: DECT radio coverage reaches up to 50 m indoors and up to 300 m outdoors, and additional base stations extend coverage across larger sites.

Q: What security features does it support?
A: The W80DM supports DECT encryption, TLS and SRTP to help protect signalling and voice traffic.
