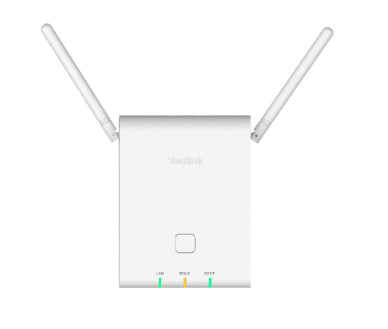

Yealink W90B | W90 DECT IP Multi-Cell Base Station, Wall Mount, PoE

Name: Yealink W90B | W90 DECT IP Multi-Cell Base Station, Wall Mount, PoE
Brand: Yealink
SKU: W90B
Price: 470.58 AUD
Availability: InStock

Authorised Yealink Partner

SKU:W90B

In stock:28

$470.58 inc. GST

$427.80 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Yealink W90B is a DECT IP multi-cell base station for the W90 system, built for businesses that need seamless roaming and handover across large sites. It is powered over Ethernet (PoE, IEEE 802.3af Class 1) and installs on the wall. The W90B base station ships without a power adapter, and it must be paired with a W90DM DECT Manager to form a working system.

A single W90 multi-cell system scales to 60 base stations, 250 handsets, 250 SIP accounts and 250 simultaneous calls, with synchronisation over the air and LAN. The W90B works with Yealink W53H, W56H, W59R and W73H handsets as well as the CP930W and DD Phone, and supports auto-provisioning plus encrypted signalling and media for secure deployments.

Features

- Seamless handover and roaming across a large site with air and LAN synchronisation
- Scales to 60 base stations, 250 handsets and 250 parallel calls per multi-cell system
- PoE powered, with no separate power adapter required
- External antenna DECT coverage
- Supports XML, LDAP and remote phonebook plus XSI directory and call log
- Secure signalling and media with SRTP, SIPS, TLS, LDAPs and HTTPS
- Compatible with W53H, W56H, W59R, W73H, CP930W and DD Phone
- Opus codec support

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Product type: DECT IP multi-cell base station
- System capacity: up to 60 base stations, 250 handsets, 250 SIP accounts and 250 simultaneous calls per W90 system
- Calls per base station: up to 8 wideband (4 active handsets) or up to 8 narrowband calls
- Synchronisation: over the air and LAN, with seamless handover and roaming
- Interface: 1 x RJ45 10/100M Ethernet port
- Power: PoE IEEE 802.3af Class 1
- Power adapter: not included (optional external adapter, AC 100-240 V input, DC 5 V/1.2 A output)
- DECT standard: CAT-iq 2.0
- DECT range: 30-50 m indoor, up to 300 m outdoor in ideal conditions
- Mounting: wall mount
- LED indicators: DECT, Role and LAN
- Colour: Pearl White
- Provisioning: TFTP, FTP, HTTP, HTTPS and RPS
- Network: 802.1x, LLDP, STUN client, UDP/TCP/TLS, static or DHCP IP assignment, outbound proxy backup
- Security: OpenVPN, TLS, HTTPS, SRTP, digest authentication, AES-encrypted configuration file

FAQs

Q: Can the W90B be used on its own?
A: No. The W90B is the base station in the W90 multi-cell system and must be paired with a W90DM DECT Manager to operate.

Q: Which handsets work with the W90B?
A: The W90B is compatible with Yealink W53H, W56H, W59R and W73H handsets, as well as the CP930W and DD Phone.

Q: Does the W90B include a power adapter?
A: No. It is powered over Ethernet using PoE (IEEE 802.3af Class 1). An external power adapter is an optional extra.

Q: How many base stations and handsets can one W90 system support?
A: A single W90 multi-cell system supports up to 60 base stations, 250 handsets, 250 SIP accounts and 250 simultaneous calls.

Q: How is the W90B installed?
A: It is a wall-mount unit with a single RJ45 10/100M Ethernet port that carries both data and PoE power.

Q: How is the W90B provisioned and secured?
A: It supports auto-provisioning via TFTP, FTP, HTTP, HTTPS and RPS. Security options include TLS, SRTP, HTTPS, OpenVPN, 802.1x and an AES-encrypted configuration file.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
