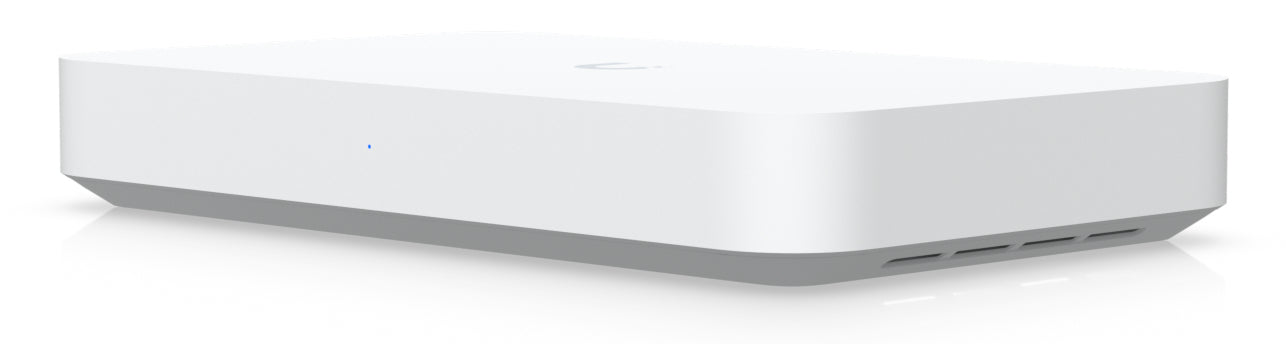

Ubiquiti UXG-FIBER | UniFi Gateway Fiber, 10G SFP+, 4x 2.5GbE, IDS/IPS

Name: Ubiquiti UXG-FIBER | UniFi Gateway Fiber, 10G SFP+, 4x 2.5GbE, IDS/IPS
Brand: Ubiquiti
SKU: UXG-FIBER
Price: 518.65 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:UXG-FIBER

In stock:24

$518.65 inc. GST

$471.50 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The UniFi Gateway Fiber (UXG-Fiber) is a compact desktop 10G gateway and router with an integrated 4-port 2.5 GbE switch, 10G SFP+ and 10 GbE RJ45 WAN options, and 5 Gbps IDS/IPS throughput. It suits small to mid-sized businesses, branch offices and multi-site deployments that need high-speed multi-WAN routing with built-in threat management and PoE+ on a single port.

The gateway combines a stateful and application-aware Layer 7 firewall with deep packet inspection, content filtering, zone-based policies and site-to-site VPN including WireGuard, OpenVPN and IPsec. It has no built-in controller, so it is managed by a separate UniFi controller such as a Cloud Key or self-hosted software.

Features

- Stateful firewall and application-aware Layer 7 firewall
- DPI and traffic identification
- Zone-based firewall with filtering by region, domain and application
- Content filtering and ad blocking
- Intrusion prevention (IDS/IPS) with 55,000+ signatures via CyberSecure
- SD-WAN and Site Magic site-to-site VPN
- VPN server: Teleport, WireGuard, OpenVPN, L2TP
- VPN client: OpenVPN and WireGuard
- IPsec site-to-site VPN
- Multi-WAN load balancing and advanced QoS
- OSPF dynamic routing
- Advanced NAT including SNAT, DNAT, masquerade, NAT pooling and 1-to-1 NAT
- Integrated RADIUS server with RadSec
- Internet failover with UniFi LTE Backup
- Internet quality and outage reporting

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x 2.5 GbE RJ45 ports (2.5G/1G/100M/10M)
- 1 x 10 GbE RJ45 port (10G/2.5G/1G)
- 2 x 10G SFP+ ports (10G/1G)
- Default WAN ports: 1 x 10G SFP+ and 1 x 10 GbE RJ45, up to 6 WAN ports
- IDS/IPS throughput: 5 Gbps
- PoE budget: 30W, PoE+ on a single port
- Processor: Quad-core ARM Cortex-A73 at 2.2 GHz
- System memory: 2 GB
- MAC address table size: 4,000
- Power: 54V DC/1.1A adapter included, 25W maximum consumption excluding PoE output
- Dimensions: 212.8 x 127.6 x 30 mm, weight 605 g
- Operating temperature: 0 to 40 C, humidity 5 to 95% noncondensing
- Management: Ethernet and Bluetooth
- NDAA compliant
- Certifications: CE, FCC, IC

FAQs

Q: Does the UXG-Fiber have a built-in UniFi controller?
A: No. It must be managed by a separate UniFi controller, such as a Cloud Key or self-hosted UniFi software.

Q: Which ports are the default WAN ports?
A: The default WAN ports are one 10G SFP+ port and one 10 GbE RJ45 port. The gateway supports up to 6 WAN ports in total.

Q: What IDS/IPS throughput does it support?
A: It supports 5 Gbps of IDS/IPS throughput, with 55,000+ signatures available through CyberSecure.

Q: Can it power PoE devices?
A: Yes. It provides a 30W PoE budget with PoE+ output on a single port.

Q: Which VPN options are supported?
A: It supports Teleport, WireGuard, OpenVPN and L2TP VPN server modes, OpenVPN and WireGuard client modes, IPsec site-to-site VPN and Site Magic.

Q: Does it support internet failover?
A: Yes. It supports multi-WAN load balancing and failover, including failover to a UniFi LTE Backup device.
