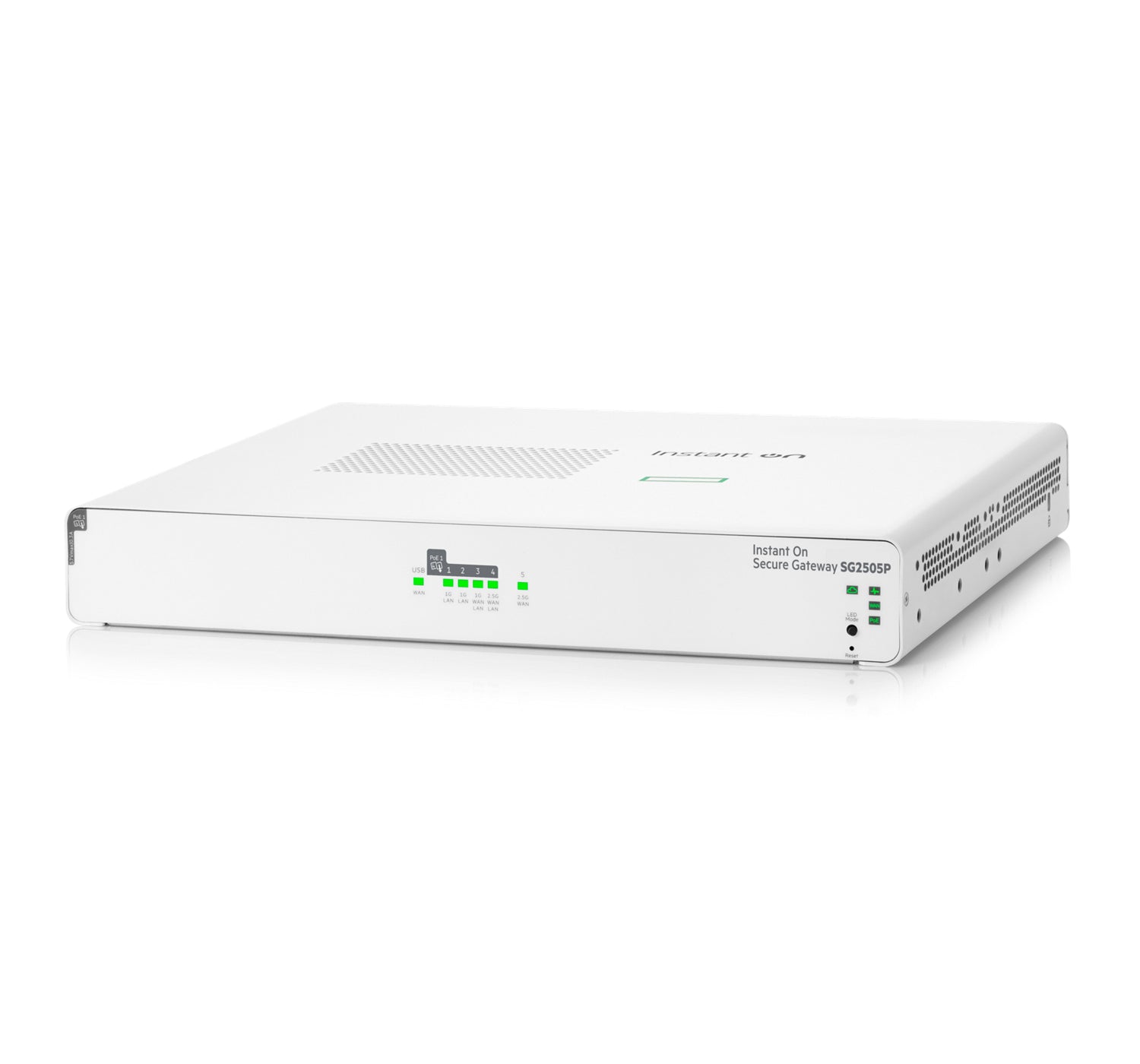

Aruba Instant On S0G34A#ABG | Instant On SG2505P Secure Gateway, 5-Port 2.5G, PoE+ 64W

Name: Aruba Instant On S0G34A#ABG | Instant On SG2505P Secure Gateway, 5-Port 2.5G, PoE+ 64W
Brand: Aruba Instant On
SKU: S0G34A#ABG
Price: 964.61 AUD
Availability: BackOrder

Authorised Aruba Instant On Partner

SKU:S0G34A#ABG

Stock Status: Enquire

$964.61 inc. GST

$876.92 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Instant On SG2505P is a cloud-managed secure gateway for small and growing businesses, supporting up to 300 users. It pairs a stateful firewall, IDS/IPS, site-to-site VPN and WAN failover with five RJ-45 ports, including multi-gigabit 2.5G SmartRate connectivity and a 64W Class 4 PoE+ budget to power access points and similar devices directly.

Deployment and day-to-day management are handled through the Instant On portal and mobile app, with automated cloud firmware updates and minimum-touch configuration. The gateway can be placed on a tabletop, mounted on a wall or installed in a telco rack, and delivers 2.4 Gbps firewall, routing and IDS/IPS throughput with 2.3 Gbps IPSec VPN performance.

Features

- Cloud-based management through the Instant On portal and app with automated cloud firmware updates
- Stateful firewall designed on a Zero Trust model
- Active threat monitoring with IDS/IPS
- WAN redundancy, failover and load balancing across multiple ISP connections
- Multi-gigabit 2.5G WAN support
- PoE+ output to power access points and similar devices without a separate switch
- Site-to-site VPN
- Minimum-touch deployment with automated configuration
- No hidden fees or licences

Warranty

• Access Points & Secure Gateways: 2-year warranty
• Instant On Switches: Limited lifetime warranty
• Transceivers & DACs: 3-year warranty
Extended Warranty Options:
Extended coverage is available via IP Trading. Contact us to tailor a plan to your Aruba Instant On deployment.
https://instant-on.hpe.com/files/FAQ_AIO_Warranty-Support-Services.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5 x RJ-45 ports: 1 x 100/1000/2500BASE-T WAN, 1 x 2.5G WAN/LAN configurable, 1 x 1G WAN/LAN configurable, 2 x 1G LAN
- 1 x USB-A 2.0 port
- 64W Class 4 PoE budget (PoE+), 4 PoE ports
- Firewall performance: 2.4 Gbps
- Routing performance: 2.4 Gbps
- IDS/IPS performance: 2.4 Gbps
- IPSec VPN performance: 2.3 Gbps
- Up to 300 users
- Maximum TCP concurrent sessions: 16384
- Maximum VLANs: 22
- Processor: 2.0 GHz
- Memory: 4GB, flash storage: 4GB eMMC
- Internal power supply, 100-127 / 200-240 VAC, 50/60 Hz
- Maximum power rating: 79.5 W, idle power: 5.6 W
- Dimensions (L x W x H): 4.39 x 30.96 x 23.42 cm
- Weight: 2.40 kg
- Mounting: tabletop, wall or telco rack
- Operating temperature: 0-40 C, humidity 15-95%

FAQs

Q: How many users does the SG2505P support?
A: The SG2505P is rated for up to 300 users.

Q: How much PoE power does the SG2505P provide?
A: It provides a 64W Class 4 PoE (PoE+) budget across 4 PoE ports, enough to power access points and similar devices directly.

Q: Does it support 2.5G connectivity?
A: Yes. One WAN port supports 100/1000/2500BASE-T, and a second port is a configurable 2.5G WAN/LAN port.

Q: How is the SG2505P managed?
A: It is managed through the Instant On cloud portal and mobile app, with automated cloud firmware updates and minimum-touch configuration.

Q: Are additional licences required for the security features?
A: No. The Instant On Secure Gateway includes its firewall, IDS/IPS and VPN features with no hidden fees or licences.

Q: How can the gateway be mounted?
A: It can be placed on a tabletop, mounted on a wall or installed in a telco rack.
