Ubiquiti

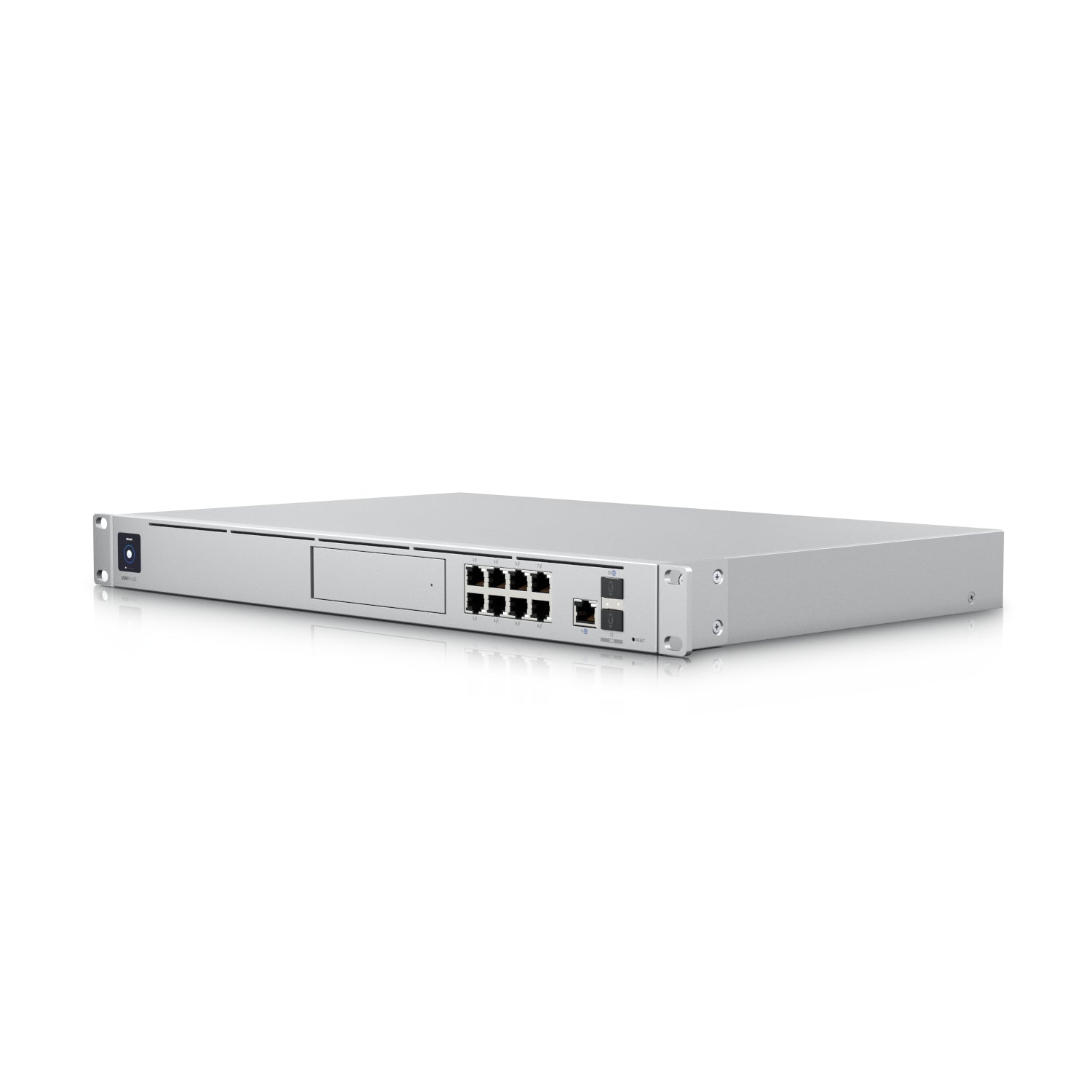

Ubiquiti UDM-SE | UniFi Dream Machine SE Cloud Gateway, 8x PoE+, 2x 10G SFP+

Ubiquiti UDM-SE | UniFi Dream Machine SE Cloud Gateway, 8x PoE+, 2x 10G SFP+

Authorised Ubiquiti Partner

SKU:UDM-SE

$1,049.55 inc. GST
$954.14 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 201

Description

The UniFi Dream Machine Special Edition is a 1U rack-mount cloud gateway and router with an integrated 8-port PoE+ switch, 1x 2.5GbE port and 2x 10G SFP+ ports. With a 180W PoE budget and a 3.5" HDD bay, it suits small to mid-sized sites that want routing, switching, security and video recording in one unit. It manages 100+ UniFi devices and 1,000+ simultaneous users, with 3.5 Gbps IDS/IPS throughput.

The UDM-SE runs the UniFi Application Suite including Network, Protect, Access, Talk and Connect, and includes a built-in 128 GB SSD alongside the 3.5" bay for NVR storage. It supports multi-WAN load balancing, Shadow Mode (VRRP) gateway failover, OSPF and BGP routing, and a range of VPN options including WireGuard, IPsec and OpenVPN. A 1.3" touchscreen provides on-device status, and the USP-RPS DC input allows redundant power backup.

Features

- Runs the UniFi Application Suite: Network, Protect, Access, Talk and Connect
- Stateful firewall, application-aware Layer 7 firewall, DPI, zone-based firewall, content filtering, IDS/IPS and ad blocking
- VPN and SD-WAN support including Site Magic, IPsec, OpenVPN, WireGuard, L2TP and Teleport
- Multi-WAN load balancing, Shadow Mode (VRRP) high availability, LACP, OSPF and BGP dynamic routing, advanced QoS
- Integrated RADIUS server with RadSec support
- UniFi LTE backup for additional internet failover
- Redundant power input via USP-RPS DC backup

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 8 x 1GbE RJ45 PoE ports (PoE+ 30W max per port)
- 1 x 2.5GbE RJ45 port
- 2 x 10G SFP+ ports
- 180W total PoE budget
- 3.5 Gbps IDS/IPS throughput
- Manages 100+ UniFi devices and 1,000+ simultaneous users
- 1 x 3.5" NVR HDD bay plus integrated 128 GB SSD
- Quad-core ARM Cortex-A57 at 1.7 GHz, 4 GB RAM, 16 GB eMMC
- 1U rack mount, 1.3" LCM touchscreen
- Dimensions: 442.4 x 43.7 x 285.6 mm, weight 5 kg
- Power: AC 100-240V internal supply, USP-RPS 52V DC input
- Max. power consumption 50 W excluding PoE output
- Max. WAN port count: 8
- NDAA compliant

FAQs

Q: How many PoE ports does the UDM-SE have and what is the PoE budget?
A: It has 8 x 1GbE RJ45 PoE ports supporting PoE+ at up to 30W per port, with a total PoE budget of 180W.

Q: Can the UDM-SE record video from UniFi Protect cameras?
A: Yes. It includes a 3.5" NVR HDD bay and an integrated 128 GB SSD, and runs UniFi Protect. It can manage up to 24 HD, 14 2K or 8 4K cameras.

Q: How many UniFi devices and users can it support?
A: The UDM-SE manages 100+ UniFi devices and supports 1,000+ simultaneous connected users.

Q: What WAN and uplink options are available?
A: It has 2 x 10G SFP+ ports and 1 x 2.5GbE RJ45 port, with up to 8 WAN ports supported. By default, the 10G SFP+ and 2.5GbE ports are configured as WAN.

Q: Does it support gateway failover and redundant power?
A: Yes. Shadow Mode (VRRP) provides gateway failover, and the USP-RPS DC input allows redundant power backup.

Q: Is the UDM-SE rack mountable?
A: Yes. It is a 1U rack-mount unit measuring 442.4 x 43.7 x 285.6 mm, with a 1.3" touchscreen for on-device status.
