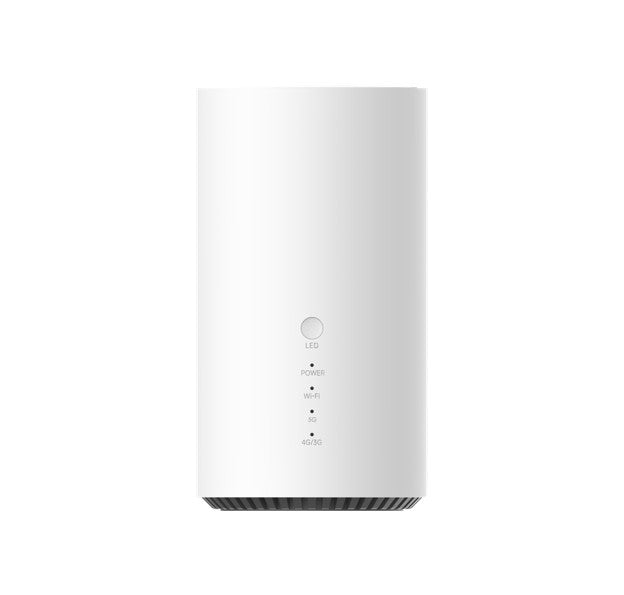

Teltonika CAP70000AA00 | Altos CAP700 5G Wi-Fi 7 Router, 2.5G WAN/LAN, 1G LAN, FWA

Authorised Teltonika Partner

SKU:CAP70000AA00

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Teltonika Altos CAP700 is an indoor 5G Wi-Fi 7 router built for Fixed Wireless Access in homes and small offices. This CAP70000AA00 variant pairs one 2.5G WAN/LAN port with one 1G LAN port, giving a fast wired uplink or LAN option alongside dual-band Wi-Fi 7 with 2x2 MIMO and support for up to 128 Wi-Fi connections.

Mobile connectivity covers 5G SA and NSA at up to 4.0 Gbps downlink, with 4G LTE Cat 19 and 3G fallback through a single Nano-SIM slot. The router runs Teltonika RutOS and is fully managed through the RMS remote management platform, with advanced routing and security features and RCM certification for Australian deployments.

Features

- 5G SA/NSA with 4G LTE Cat 19 and 3G fallback for resilient connectivity
- Dual-band Wi-Fi 7 with 2x2 MIMO and WPA3 support
- Runs RutOS and is fully managed through Teltonika RMS
- Routing support including BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP and policy-based routing
- Security features including firewall, VLAN, X.509 certificates, TACACS+ and RADIUS
- Status LEDs for power, Wi-Fi, mobile connection type and LAN
- Compact plastic housing designed for indoor use
- RCM certified for use in Australia

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5G NR up to 4.0 Gbps DL / 900 Mbps UL (SA and NSA)
- 4G LTE Cat 19 up to 1.6 Gbps DL / 200 Mbps UL
- 3G fallback up to 42 Mbps DL / 5.76 Mbps UL
- Dual-band Wi-Fi 7 (802.11be), 2x2 MIMO, up to 6400 Mbps, up to 128 connections
- 1 x 2.5 GbE RJ45 (WAN/LAN)
- 1 x 1 GbE RJ45 LAN
- 1 x Nano-SIM (4FF) slot
- 6 internal mobile antennas, 2 Wi-Fi antennas
- Qualcomm CPU, 1 GB LPDDR4 RAM, 8 GB eMMC storage
- 12 VDC external adapter, less than 8 W idle, 24 W max
- IP30 housing, indoor tabletop mounting
- Dimensions: 100 mm diameter x 185 mm, weight 0.72 kg
- Operating temperature: 0 to 45 C

FAQs

Q: Does the Altos CAP700 support 5G standalone networks?
A: Yes. It supports both 5G SA and NSA modes, with 4G LTE Cat 19 and 3G fallback when 5G is unavailable.

Q: What Ethernet ports does this model have?
A: It has one 2.5 GbE RJ45 WAN/LAN port and one 1 GbE RJ45 LAN port.

Q: Can the CAP700 be managed remotely?
A: Yes. It runs Teltonika RutOS and is fully managed through the Teltonika RMS remote management platform.

Q: What SIM type does it use?
A: It has a single Nano-SIM (4FF) slot.

Q: Is it suitable for outdoor installation?
A: No. It is an indoor tabletop router with an IP30 plastic housing and an operating range of 0 to 45 C.

Q: How many Wi-Fi devices can it serve?
A: It supports up to 128 Wi-Fi connections on dual-band Wi-Fi 7 with 2x2 MIMO.
