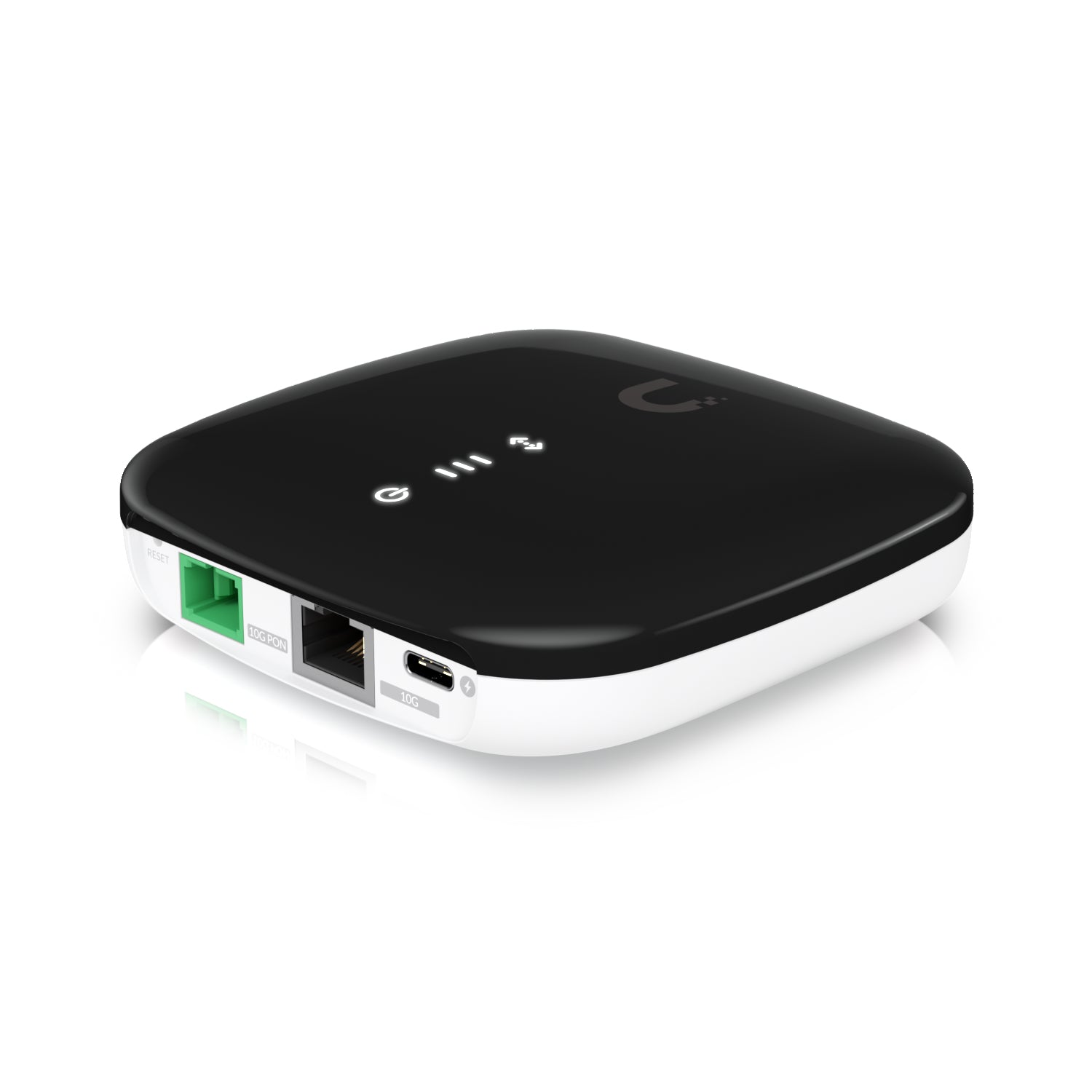

• Ubiquiti UISP-FIBER-XGS 10Gbps media converter top view with ports and lights
1 1

Ubiquiti

Ubiquiti UISP-FIBER-XGS | UISP Fiber XGS-PON CPE Media Converter, 10Gbps, 20km

Ubiquiti UISP-FIBER-XGS | UISP Fiber XGS-PON CPE Media Converter, 10Gbps, 20km

Authorised Ubiquiti Partner

UISP-FIBER-XGS

In stock:57

$289.80 inc. GST
$263.45 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The UISP Fiber XGS-PON CPE is a 10 Gbps optical network unit and media converter for fibre-to-the-premises deployments. It delivers symmetric 10 Gbps downstream and upstream over a single SC/APC fibre with a physical reach of up to 20 km, and presents the service on a multi-gigabit RJ45 LAN port that negotiates from 100 Mbps up to 10 GbE.

This unit is designed to connect to a UISP Fiber XGS OLT and is managed through the UISP application, with support for Bridge and Router modes. Signal-strength LEDs assist with installation, powering is via USB-C 5V DC at a maximum of 8 W, and the UV-stabilised polycarbonate enclosure suits customer premises installation. It is NDAA compliant.

Features

- XGS-PON ONU with 10 Gbps symmetric capacity
- Up to 20 km reach over a single SC/APC fibre
- Bridge and Router mode support
- Multi-gigabit RJ45 LAN port supporting up to 10GbE
- Managed through the UISP application (version 1.5.7 and later)
- Designed for use with the UISP Fiber XGS OLT
- PON signal-strength LEDs to assist installation
- NDAA compliant

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x SC/APC XGS-PON WAN port (ITU-G.9807)
- 1 x 100/1000/2500/5000/10000 MbE RJ45 LAN port
- 10 Gbps downstream and 10 Gbps upstream (9.95 Gbit/s non-blocking line rate)
- Physical reach up to 20 km
- Operating wavelength: TX 1270 nm, RX 1577 nm
- Normal TX range: 4 to 9 dBm, normal RX range: -9 to -26 dBm
- Line code: scrambled NRZ
- Memory: 256 MB DDR, 32 MB NOR flash
- Power: USB-C 5V DC, 3A power adapter, 8 W maximum consumption
- Management interface: Ethernet in-band and PON
- Dimensions: 100 x 100 x 27 mm, weight 220 g
- Enclosure: UV-stabilised polycarbonate
- Operating temperature: -15 to 45 C
- Certifications: CE, FCC, IC, NDAA compliant

FAQs

Q: What does the UISP Fiber XGS-PON CPE connect to?
A: It is designed to work with the UISP Fiber XGS OLT and is only compatible with that OLT. It is not intended for use with other vendors' PON equipment.

Q: What speeds does the LAN port support?
A: The RJ45 LAN port auto-negotiates 100 Mbps, 1G, 2.5G, 5G and 10G, so it can deliver the full 10 Gbps service to a suitable downstream device.

Q: What fibre connector does it use?
A: The WAN port is a single SC/APC XGS-PON port (ITU-G.9807), so APC-polished SC fibre patching is required.

Q: How is the unit powered?
A: It is powered via USB-C at 5V DC, 3A using the supplied power adapter, with a maximum power consumption of 8 W.

Q: How is it managed?
A: Management is through the UISP application, version 1.5.7 or later, using Ethernet in-band or PON management.

Q: What is the maximum reach?
A: The physical reach is up to 20 km, using TX 1270 nm and RX 1577 nm wavelengths.
