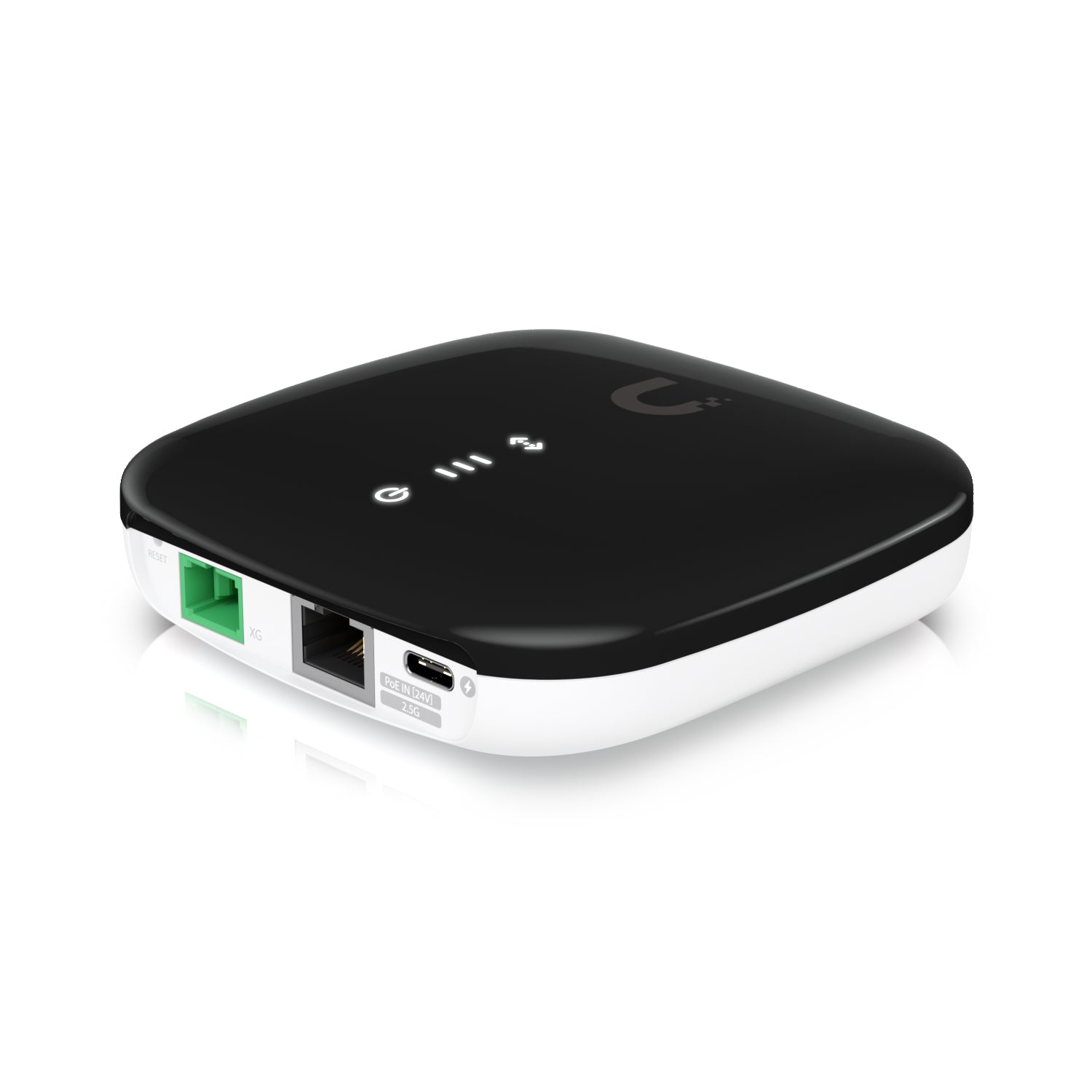

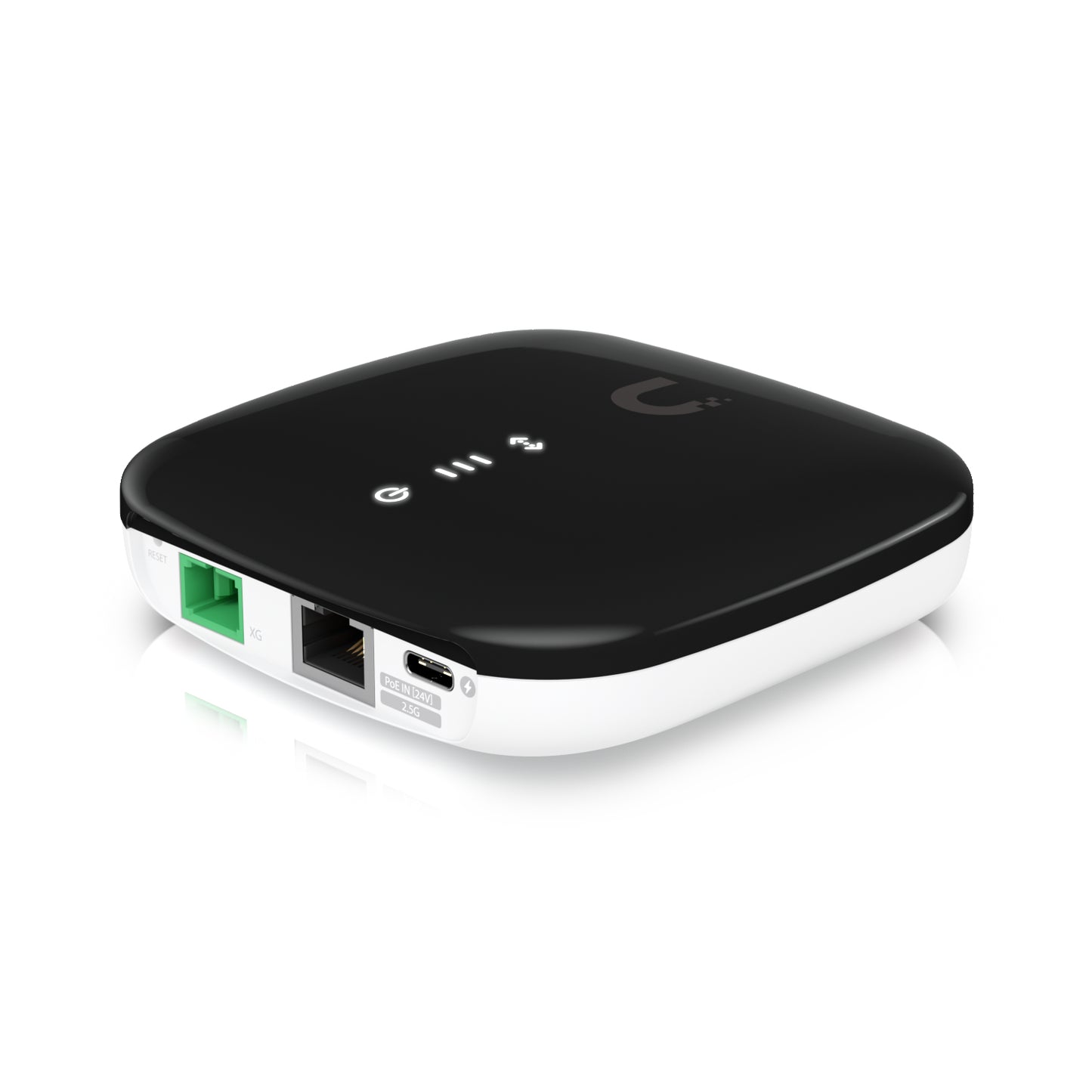

• Ubiquiti UISP-FIBER-XG black/white media converter with ports and lights
1 1

Ubiquiti

Ubiquiti UISP-FIBER-XG | UISP Fiber XG-PON ONU, 10G Down, 2.5G Up, 2.5GbE LAN

Ubiquiti UISP-FIBER-XG | UISP Fiber XG-PON ONU, 10G Down, 2.5G Up, 2.5GbE LAN

Authorised Ubiquiti Partner

UISP-FIBER-XG

In stock:67

$211.24 inc. GST
$192.04 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Ubiquiti UISP-FIBER-XG is an XG-PON optical network unit (CPE) that delivers 2.5 Gbps uplink and 10 Gbps downlink over distances up to 20 km. It pairs one SC/APC XG-PON WAN port with a 100/1,000/2,500 MbE RJ45 LAN port, making it a practical subscriber-side unit for fibre-to-the-premises deployments managed through UISP.

Power can be supplied by a USB-C 5V 3A adapter or 24V passive PoE, with a maximum draw of 6 W. Three PON signal-strength LEDs assist with installation and alignment. This unit works only with the UISP Fiber XGS OLT and cannot be used with third-party OLTs.

Features

- Optical network unit delivering 2.5 Gbps uplink and 10 Gbps downlink over distances up to 20 km
- Compatible only with the UISP Fiber XGS OLT, not third-party OLTs
- Flexible power options: USB-C 5V adapter or 24V passive PoE
- Three PON signal-strength LEDs assist installation and alignment
- Managed through UISP (version 1.5.7 and later)
- NDAA compliant

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x SC/APC XG-PON (ITU-G.987) WAN port
- 1 x 100/1,000/2,500 MbE RJ45 LAN port
- 2.5 Gbps uplink / 10 Gbps downlink
- Line rate: 9.95 Gbit/s downstream, 2.44 Gbit/s upstream
- Physical reach: 20 km
- Operating wavelength: TX 1,270 nm, RX 1,577 nm
- Power: USB-C 5V DC 3A adapter or 24V passive PoE in (10-30V DC)
- Maximum power consumption: 6 W
- Memory: 256 MB DDR, 32 MB NOR flash
- Dimensions: 100 x 100 x 27 mm, weight 220 g
- UV-stabilised polycarbonate enclosure
- Operating temperature: -15 to 45 C, humidity 10 to 95% non-condensing
- Certifications: CE, FCC, IC, NDAA compliant

FAQs

Q: Which OLT does the UISP-FIBER-XG work with?
A: It is designed for use with the UISP Fiber XGS OLT only. It cannot be used with third-party OLTs.

Q: How is the UISP-FIBER-XG powered?
A: It can be powered by a USB-C 5V DC 3A adapter or by 24V passive PoE (10-30V DC supported). Maximum power consumption is 6 W.

Q: What speeds and distance does it support?
A: It delivers 2.5 Gbps uplink and 10 Gbps downlink over XG-PON, with a physical reach of up to 20 km.

Q: What ports does it have?
A: It has one SC/APC XG-PON WAN port and one 100/1,000/2,500 MbE RJ45 LAN port.

Q: How is it managed?
A: It is managed through UISP, version 1.5.7 or later, using Ethernet in-band and PON management.

Q: Is it suitable for outdoor use?
A: It has an operating temperature range of -15 to 45 C and a UV-stabilised polycarbonate enclosure, but it is a compact CPE unit, so check the installation environment against the listed ratings.
