Ubiquiti

Ubiquiti UF-WIFI | UFiber WiFi GPON CPE Wireless Router, 2.4GHz, 4x GbE

Ubiquiti UF-WIFI | UFiber WiFi GPON CPE Wireless Router, 2.4GHz, 4x GbE

Authorised Ubiquiti Partner

SKU:UF-WIFI

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

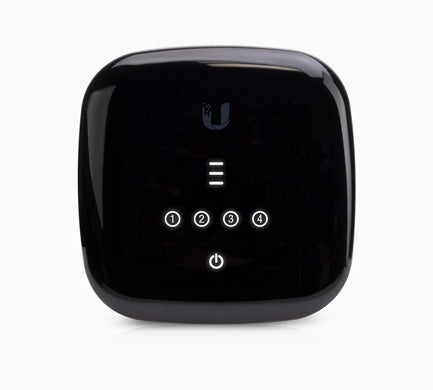

The Ubiquiti UFiber WiFi UF-WIFI is a GPON CPE with a built-in 2.4 GHz wireless router, designed to terminate a fibre GPON link at the subscriber premises. It combines a single SC/APC GPON WAN port with four Gigabit Ethernet LAN ports and 2x2 MIMO Wi-Fi 4 (802.11n) delivering up to 300 Mbps, making it a practical all-in-one unit for fibre-to-the-home and small business deployments.

The multiple VLAN-aware switch ports allow service segmentation at the customer edge, while PON status and optical signal strength LEDs simplify installation and troubleshooting. It can be powered by the 24V DC adapter or by 24V passive PoE, and supports GPON links of up to about 20 km. Management is available over Ethernet and In-Band PON.

Features

- Built-in WiFi router in a GPON CPE
- Multiple VLAN-aware switch ports
- PON status and optical signal strength LEDs
- Powered by DC adapter or passive PoE
- Supports GPON links of up to about 20 km (12.4 miles)

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 1 x SC/APC GPON WAN port
- 4 x Gigabit Ethernet LAN ports
- Wi-Fi 4 (802.11n), 2.4 GHz, 2x2 MIMO, up to 300 Mbps
- Max TX power 20 dBm, antenna gain 1 dBi (2.4 GHz)
- Total non-blocking line rate: 2.5 Gbps downstream / 1.2 Gbps upstream
- Optical module range: TX 1.5 to 5 dBm, RX -8 to -28 dBm
- Power: 24V/0.5A DC adapter (100-240V AC) or 24V passive PoE (10-30V DC range)
- Max power consumption: 7W
- Dimensions: 126.3 x 126.1 x 31.7 mm
- Weight: 190 g
- Enclosure: UV-stabilised polycarbonate
- Management: Ethernet, In-Band PON

FAQs

Q: What type of WAN connection does the UF-WIFI use?
A: It has a single SC/APC GPON WAN port for connecting to a GPON fibre network.

Q: Does the UF-WIFI support 5 GHz WiFi?
A: No. It provides 2.4 GHz Wi-Fi 4 (802.11n) with 2x2 MIMO and speeds up to 300 Mbps.

Q: How many LAN ports does it provide?
A: It provides four Gigabit Ethernet LAN ports with VLAN-aware switching.

Q: How is the UF-WIFI powered?
A: It can be powered by a 24V/0.5A DC adapter or by 24V passive PoE. Maximum power consumption is 7W.

Q: What is the maximum GPON reach?
A: It supports GPON links of up to about 20 km (12.4 miles).

Q: How can the device be managed?
A: It can be managed over Ethernet or In-Band PON.
