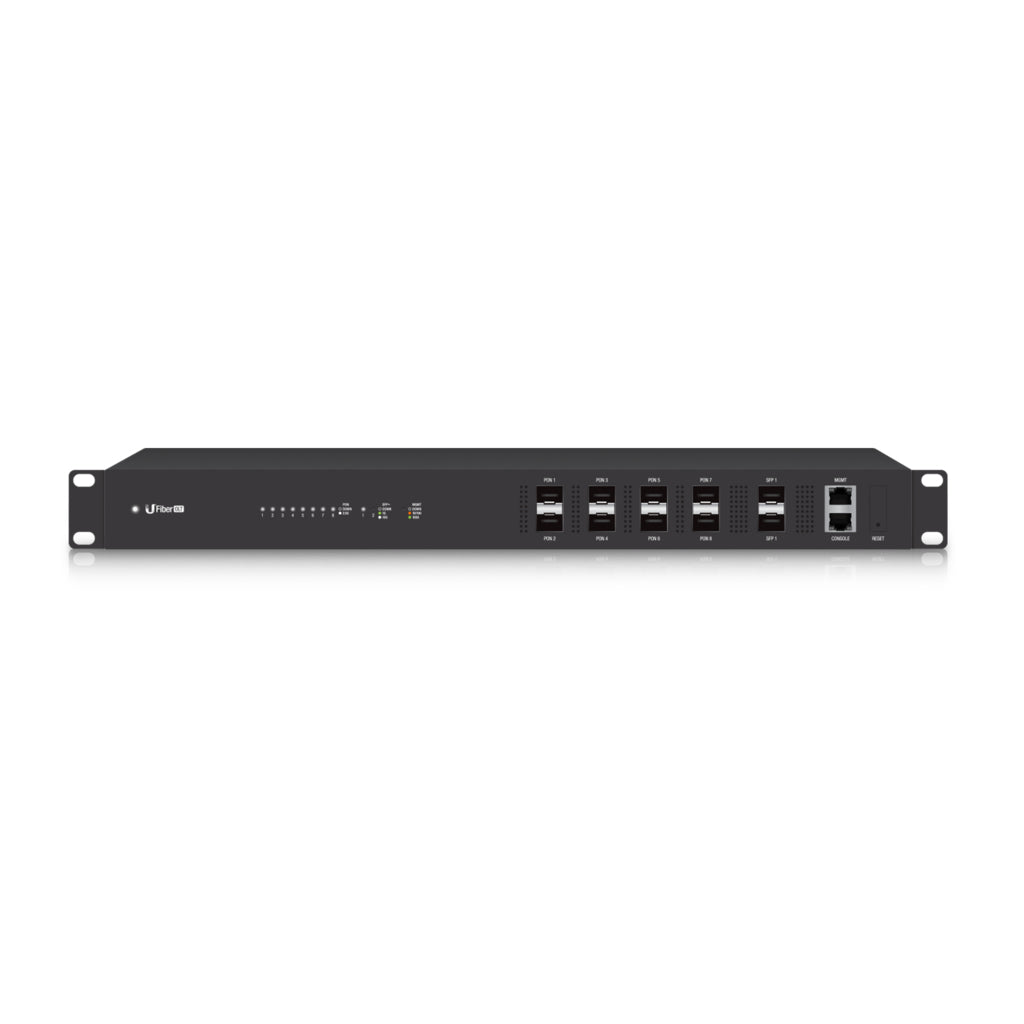

Ubiquiti UF-OLT | UFiber OLT 8-Port GPON Optical Line Terminal, 1024 ONU, 1U

Authorised Ubiquiti Partner

SKU:UF-OLT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Ubiquiti UFiber OLT (UF-OLT) is an 8-port GPON optical line terminal for managing fibre internet service across up to 1,024 clients, with 128 clients per port. Built in a 1U rack-mountable chassis with two 10 Gbps SFP+ uplink ports, it suits ISPs and fibre-to-the-home deployments that need a compact, high-density OLT. GPON links reach up to 20 km, and one AC/DC power supply module and one UF-GP-B+ GPON SFP module are included.

The chassis has two hot-swappable power bays that accept AC/DC or DC/DC modules for redundant power. The UF-OLT is managed through Ubiquiti's UFiber controller software with a graphical interface, and is suited to Triple Play services covering data, voice and IPTV/VoD. Management connectivity includes out-of-band and in-band Ethernet ports, an RJ45 serial console and Bluetooth.

Features

- Supports up to 1,024 ONUs with physical links up to 20 km
- Two modular, hot-swappable power bays accept AC/DC or DC/DC modules for redundant power
- Two SFP+ ports provide 10G uplink connectivity
- Managed centrally via the UFiber controller with a graphical interface
- Suited to Triple Play services including data, voice and IPTV/VoD
- Includes one UF-GP-B+ GPON SFP module

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x GPON OLT SFP ports
- 2 x 10 Gbps SFP+ ports
- Up to 1,024 concurrent clients (ONUs), 128 per port
- GPON range up to 20 km
- Data rate: 2.488 Gbps downstream, 1.244 Gbps upstream
- Wavelengths: 1490 nm (TX), 1310 nm (RX)
- Management: 1 x out-of-band Ethernet, 1 x in-band Ethernet, 1 x RJ45 serial console, Bluetooth
- Power: universal input 100-240V AC, 50/60 Hz
- 2 x hot-swap AC/DC PSU bays, one AC/DC module included
- Max. power consumption 40W (excluding SFP modules)
- Includes one UF-GP-B+ GPON SFP module
- 1U rack-mountable, 442.4 x 285.6 x 43.7 mm
- Weight: 4.4 kg without mounting brackets, 4.5 kg with brackets
- SGCC steel enclosure

FAQs

Q: How many clients can the UF-OLT support?
A: The UF-OLT supports up to 1,024 concurrent clients (ONUs), with up to 128 clients per GPON port across its eight ports.

Q: What uplink connectivity does the UF-OLT provide?
A: It has two 10 Gbps SFP+ ports for uplink connectivity to your core network.

Q: What is the maximum GPON link distance?
A: GPON physical links can reach up to 20 km.

Q: Does the UF-OLT support redundant power?
A: Yes. It has two hot-swappable power bays that accept AC/DC or DC/DC modules. One AC/DC module is included, and a second module can be added for redundancy.

Q: Is a GPON SFP module included?
A: Yes, one UF-GP-B+ GPON SFP module is included. The OLT has eight GPON SFP ports, so additional compatible modules are needed to populate the remaining ports.

Q: How is the UF-OLT managed?
A: It is managed centrally through Ubiquiti's UFiber controller software with a graphical interface. Local management options include out-of-band and in-band Ethernet ports, an RJ45 serial console and Bluetooth.
