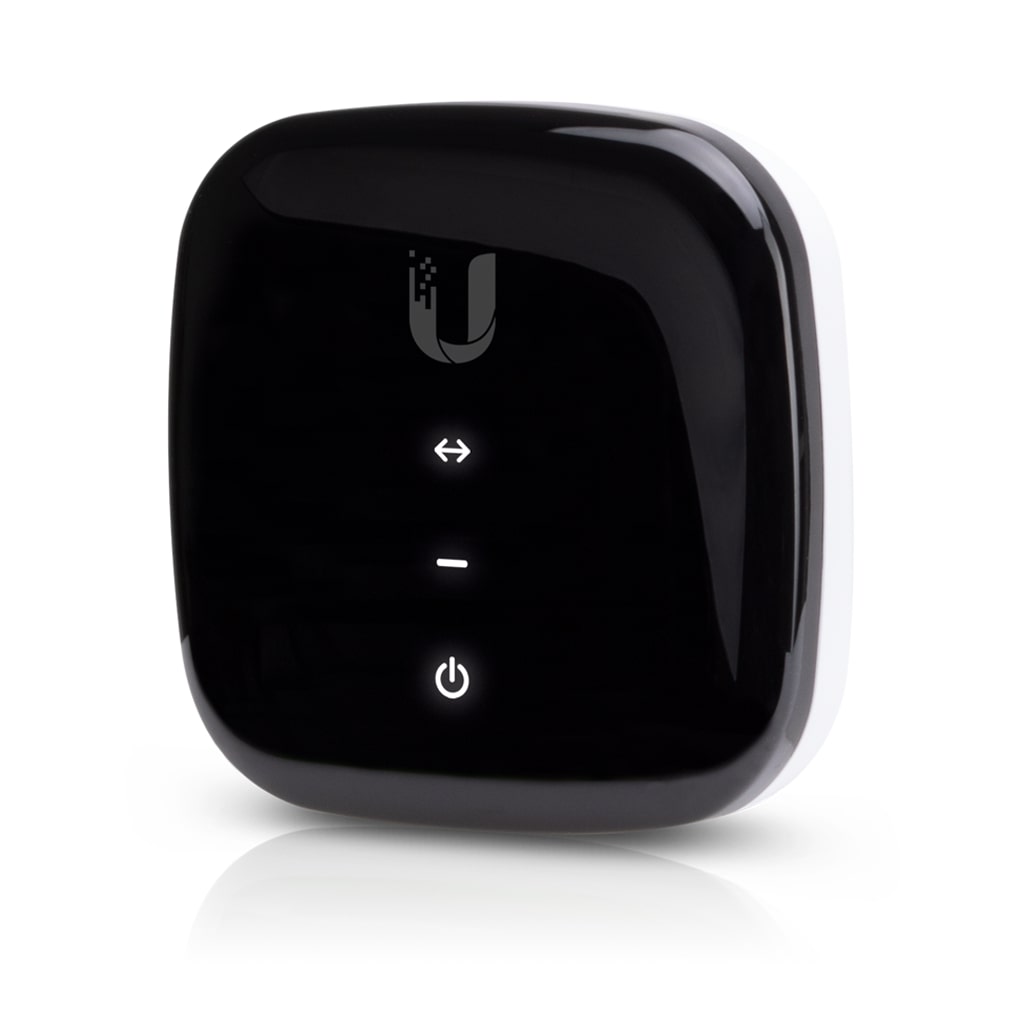

• Ubiquiti UACC-AE black glossy UFiber Active Ethernet converter with RJ45 port
1 1

Ubiquiti

Ubiquiti UACC-AE | UFiber Active Ethernet Media Converter, 1x SFP, 1x GbE RJ45, PoE

Ubiquiti UACC-AE | UFiber Active Ethernet Media Converter, 1x SFP, 1x GbE RJ45, PoE

Authorised Ubiquiti Partner

UACC-AE

In stock:136

$68.64 inc. GST
$62.40 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The UFiber Active Ethernet media converter is a compact fibre-to-copper converter that lets equipment without SFP ports use fibre uplinks of up to 1 Gbps. It provides 1x SFP port and 1x 10/100/1000 Mbps GbE RJ45 port, and is powered by 802.3af PoE or 24V passive PoE, so no separate power adapter is needed when fed from a suitable PoE source.

The converter works with UFiber SFP modules (modules not included) and suits ISPs delivering active fibre to a customer's premises. Its compact UV-stabilised polycarbonate enclosure supports an operating range of -40 to 60 C, with a wall-mounting bracket included and LEDs for Ethernet, optical signal and power status.

Features

- Fibre-to-copper media conversion for devices without SFP ports
- Supports 1 Gbps fibre uplink speeds and 10/100/1000 Ethernet speeds
- Powered by 802.3af PoE or 24V passive PoE
- Compatible with UFiber SFP modules (SFP modules not included)
- Compact design for indoor use
- Includes a bracket for wall mounting
- Lets ISPs deliver active fibre to a customer's premises

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x 1 Gbps SFP port
- 1 x 10/100/1000 Mbps GbE RJ45 port
- Powered by 802.3af PoE (pins 1, 2+; 3, 6-) or 24V passive PoE (pins 4, 5+; 7, 8-)
- Supported voltage range: 16-57 V
- Max power consumption: 1.5 W
- Maximum data transfer rate: 1000 Mbit/s
- LEDs: Ethernet, Optical Signal, Power
- Enclosure: UV-stabilised polycarbonate (PC110U)
- Operating temperature: -40 to 60 C
- Operating humidity: 10 to 90% noncondensing
- Dimensions: 76.5 x 76.5 x 26.8 mm
- Weight: 70 g
- Certifications: CE, FCC, IC
- NDAA compliant

FAQs

Q: How is the UFiber Active Ethernet converter powered?
A: It is powered by 802.3af PoE or 24V passive PoE, with a supported voltage range of 16-57 V and a maximum power consumption of 1.5 W. A UniFi PoE switch or other suitable PoE source is required and is not included.

Q: Does it include an SFP module?
A: No. The converter provides one SFP port and works with UFiber SFP modules, which are sold separately.

Q: What speeds does it support?
A: The SFP port supports fibre uplinks of up to 1 Gbps, and the RJ45 port supports 10/100/1000 Mbps Ethernet.

Q: Can it be mounted on a wall?
A: Yes. A bracket for wall mounting is included in the package.

Q: What operating conditions is it rated for?
A: It is rated for ambient temperatures from -40 to 60 C and humidity of 10 to 90% noncondensing. It is designed for indoor use.

Q: What is the UACC-AE used for?
A: It converts a fibre connection to copper Ethernet for equipment that has no SFP port, and lets ISPs deliver active fibre to a customer's premises.
