Ubiquiti NHU-UDR7-1TBSD | UniFi Dream Router 7 Wi-Fi 7 Gateway, 1TB microSD

Name: Ubiquiti NHU-UDR7-1TBSD | UniFi Dream Router 7 Wi-Fi 7 Gateway, 1TB microSD
Brand: Ubiquiti
SKU: NHU-UDR7-1TBSD
Price: 743.82 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:NHU-UDR7-1TBSD

In stock:75

$743.82 inc. GST

$676.20 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

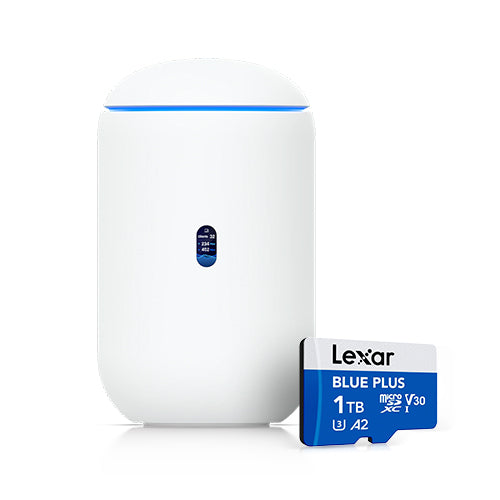

The Ubiquiti UniFi Dream Router 7 is a desktop Wi-Fi 7 cloud gateway that combines a 10G-capable router, tri-band wireless access point and UniFi application host in one unit. This bundle includes a Lexar 1TB Blue Plus microSD card, giving UniFi Protect far more recording storage than the 64GB card in the standard UDR7.

The UDR7 offers a 10G SFP+ WAN and a 2.5GbE RJ45 WAN for multi-WAN load balancing, plus three 2.5GbE LAN ports, one with 15.4W PoE out. It supports 300+ concurrent clients and 2.3 Gbps IDS/IPS throughput, and runs the UniFi application suite including Network, Protect, Access, Talk and Connect.

Features

- Integrated tri-band Wi-Fi 7 with an aggregate rate of about 10.5 Gbps for 300+ clients
- 10G SFP+ WAN plus 2.5GbE WAN with multi-WAN load balancing
- PoE-out port to power a compatible device such as a camera or phone
- UniFi application suite: Network, Protect, Access, Talk and Connect
- microSD slot for UniFi Protect NVR recording, with the 1TB card greatly expanding retention
- Stateful firewall and SD-WAN

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi 7 (802.11be) tri-band 2.4/5/6 GHz, 2x2 MU-MIMO per band
- Throughput: 688 Mbps (2.4 GHz, BW40), 4.3 Gbps (5 GHz, BW240), 5.7 Gbps (6 GHz, BW320)
- Antenna gain: 5 dBi (2.4 GHz), 7 dBi (5 GHz), 6 dBi (6 GHz)
- Quad-core ARM Cortex-A53 processor at 1.5 GHz
- WAN: 1 x 10G SFP+ and 1 x 2.5GbE RJ45
- LAN: 3 x 2.5GbE RJ45, including 1 PoE out port
- PoE budget: 15.4W (maximum 15.4W per port)
- IDS/IPS throughput: 2.3 Gbps
- 300+ concurrent clients
- Bundled Lexar 1TB Blue Plus microSD card (standard UDR7 includes 64GB)
- Management interface: Ethernet and Bluetooth
- 0.96-inch LCM display
- Power: internal 50W AC/DC supply, 100-240V AC, 50/60 Hz
- Maximum power consumption: 26W (excluding PoE output)
- Operating temperature: -10 to 40 C, humidity 5 to 95% non-condensing
- Certifications: CE, FCC, IC
- Weight: 1.1 kg

FAQs

Q: What is included in this bundle?
A: The bundle pairs the UniFi Dream Router 7 with a Lexar 1TB Blue Plus microSD card for UniFi Protect recording storage.

Q: How does this differ from the standard Dream Router 7?
A: The standard UDR7 ships with a 64GB microSD card. This bundle uses a 1TB Lexar card, which greatly extends UniFi Protect recording retention.

Q: Does the Dream Router 7 support multi-WAN?
A: Yes. It has a 10G SFP+ WAN and a 2.5GbE RJ45 WAN, supporting multi-WAN load balancing.

Q: Can it power a camera or phone over PoE?
A: One of the three 2.5GbE LAN ports provides PoE out with a 15.4W budget, enough for a compatible camera or phone.

Q: How many clients can it support?
A: The Dream Router 7 supports 300+ concurrent clients across its tri-band Wi-Fi 7 radios.

Q: Which UniFi applications does it run?
A: It supports the UniFi application suite including Network, Protect, Access, Talk and Connect.
