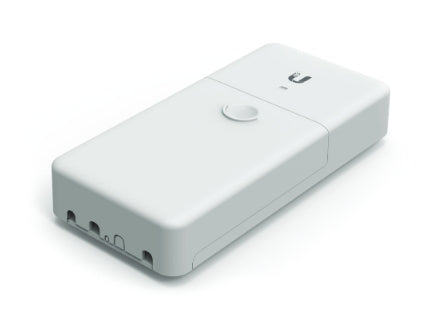

Ubiquiti F-POE-G2 | FiberPoE Gen 2 Fibre-to-PoE Media Converter, AU Plug

Name: Ubiquiti F-POE-G2 | FiberPoE Gen 2 Fibre-to-PoE Media Converter, AU Plug
Brand: Ubiquiti
SKU: F-POE-G2
Price: 67.38 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:F-POE-G2

In stock:103

$67.38 inc. GST

$61.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The FiberPoE Gen 2 is a Gigabit fibre-to-PoE media converter for outdoor installations, supplied with an AU plug. It converts a 1G SFP fibre link to a PoE-enabled GbE RJ45 port and injects 24V or 50V passive PoE from a separate DC feed, so PoE devices can be placed far beyond the 100 m copper limit. It suits outdoor access points, cameras and bridges at the end of a fibre run.

Data and power travel on separate cables, which improves data integrity and allows much longer runs. Built-in gas discharge tube surge protection, enhanced ESD protection and an IPX5-rated enclosure make it well suited to exposed sites. Use a single unit as a fibre-to-Ethernet converter, or deploy a pair to build a fibre bridge. Operation across -40 to 60 °C may be further limited by the SFP module fitted.

Features

- Reliable long-distance Gigabit PoE runs
- Separate data and power cables improve data integrity and allow much longer runs
- Dependable 24V/50V passive PoE transport
- Enhanced ESD protection and EMI reduction
- Built-in high-current gas discharge tube for surge protection
- Use as a single fibre-to-Ethernet converter or as a pair to create a fibre bridge
- Integrated fibre cable strain relief inside the cover
- Weatherproof, durable outdoor form factor
- Works in extreme temperatures from -40 to 60 °C

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x 1 Gbps SFP port
- 1 x GbE PoE RJ45 port (10/100 Mbps not supported)
- 1 x DC RJ45 input port with DC injection
- 1 x DC terminal block, 2-wire 24V or 50V DC
- PoE output: 2-pair (24VDC) or 4-pair (24VDC or 50VDC) passive PoE
- Input DC voltage: 16 to 57V
- Typical power consumption: 1.5 W
- Surge protection: built-in high-current gas discharge tube on DC terminal block and PoE port
- ESD/EMP protection: ±24kV contact and air for Ethernet
- Weatherproofing: IPX5
- Enclosure: white polycarbonate
- Dimensions: 196.4 x 93.5 x 32.4 mm
- Weight: 288 g
- Operating temperature: -40 to 60 °C
- Operating humidity: 10 to 95% non-condensing
- Certifications: CE, FCC, IC

FAQs

Q: Does the F-POE-G2 include an SFP module?
A: No. The unit provides a 1 Gbps SFP port, so a compatible 1G SFP module and fibre cabling are needed for the fibre link.

Q: What PoE output does it provide?
A: The GbE PoE RJ45 port delivers passive PoE at 24V on 2-pair or 24V/50V on 4-pair. It is not 802.3af/at PoE, so connect only devices that support passive PoE at the matching voltage.

Q: Does it support 10/100 Mbps devices?
A: No. The PoE port is Gigabit only, and 10/100 Mbps connections are not supported.

Q: Can two units be used to bridge a fibre link?
A: Yes. One unit can serve as a fibre-to-Ethernet converter, or a pair can be used to create a fibre bridge between two sites.

Q: What DC supply does it need?
A: It accepts 16 to 57V DC via the DC terminal block or the DC input RJ45 port, which also passes power through to the PoE output.

Q: Is it suitable for outdoor installation?
A: Yes. It has an IPX5 weatherproof enclosure, built-in surge and ESD protection, and an operating range of -40 to 60 °C, which may be further limited by the SFP module used.
