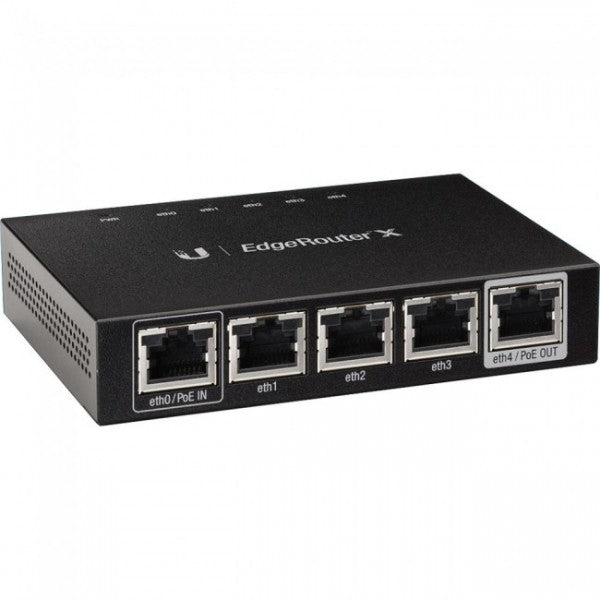

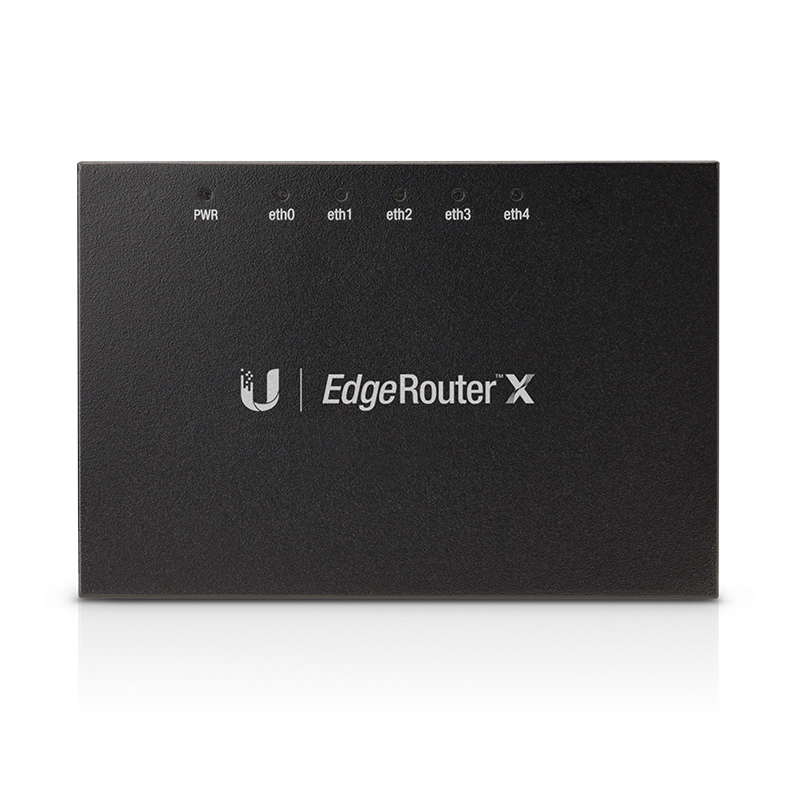

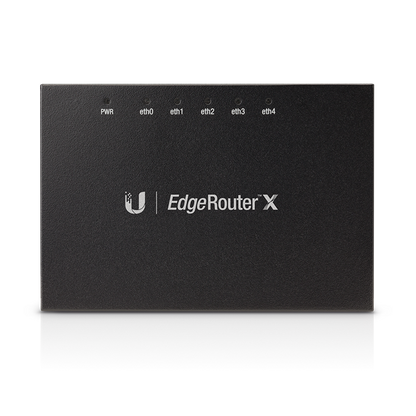

Ubiquiti ER-X-AU | EdgeRouter X 5-Port Gigabit Router, AU Power Adapter

Ubiquiti ER-X-AU | EdgeRouter X 5-Port Gigabit Router, AU Power Adapter

SKU:ER-X-AU

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Ubiquiti EdgeRouter X is a compact 5-port Gigabit router running EdgeOS, built for small networks that need advanced routing, management and security features in a small footprint. This ER-X-AU model ships with an AU power adapter, so it can be plugged in locally without additional adapters.

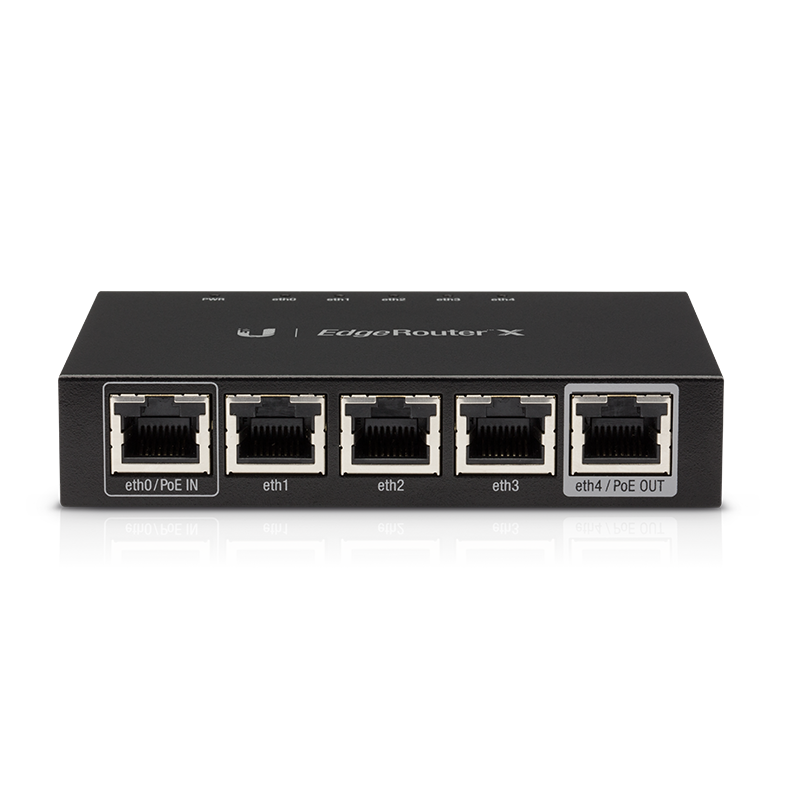

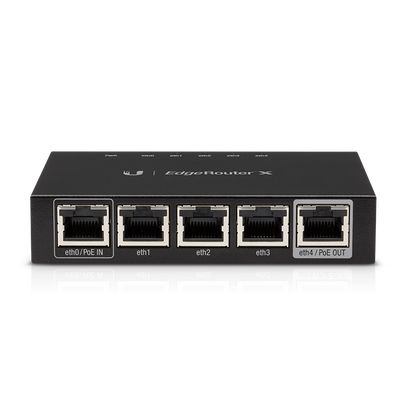

Power the router from the included 12V adapter or from 24V passive PoE on eth0, and pass PoE through eth4 to a compatible downstream device. The EdgeOS web interface makes configuration straightforward, and the small wall-mountable chassis suits tight spaces.

Buy today from iptrading.com.au for fast shipping and expert service across Australia.

Features

- Advanced network management and security features via EdgeOS
- Powered by the included AU adapter or 24V passive PoE
- Passive PoE passthrough on eth4
- Web-based EdgeOS configuration interface

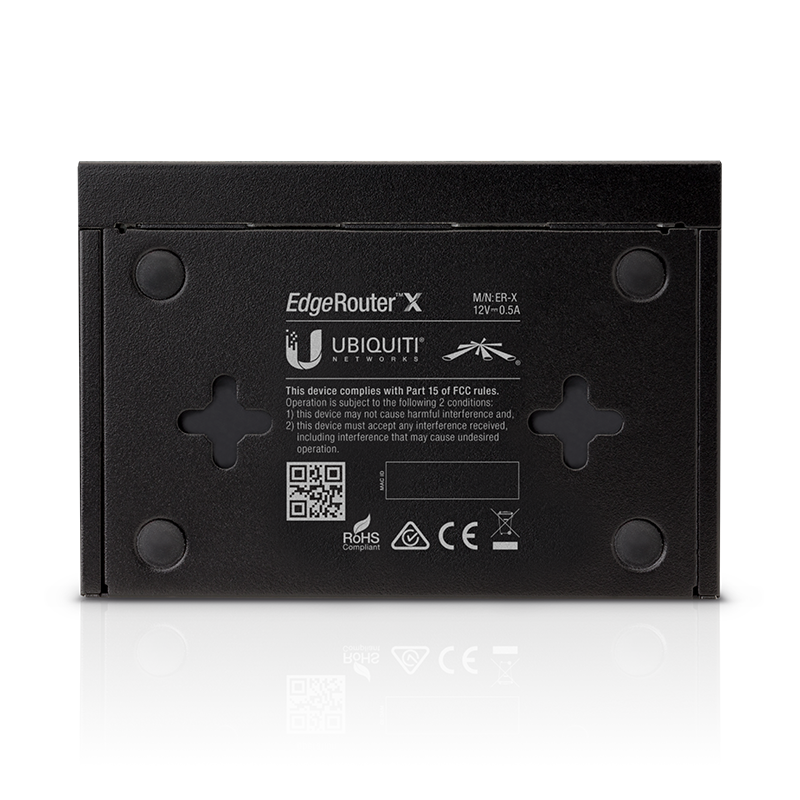

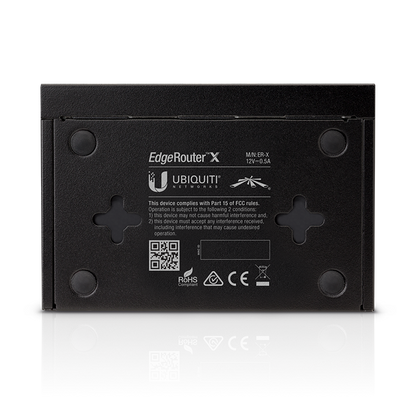

- Wall-mountable compact form factor

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 5 x Gigabit RJ45 Ethernet ports
- Processor: Dual-Core 880 MHz MIPS1004Kc
- System memory: 256 MB DDR3 RAM
- Code storage: 256 MB NAND

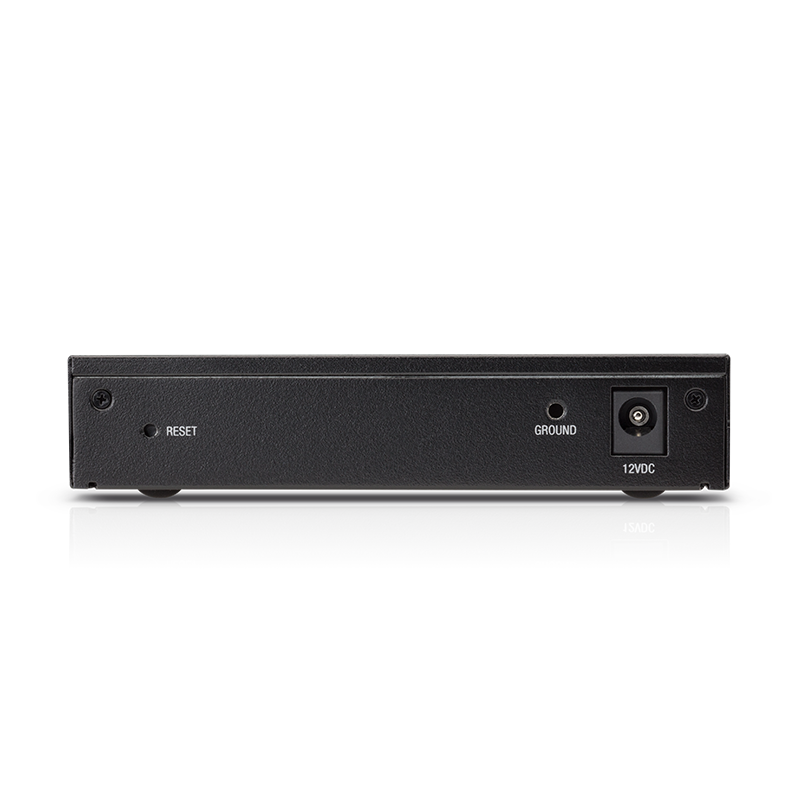

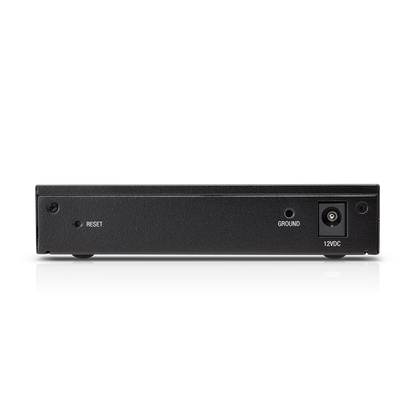

- Power input: 12VDC 0.5A adapter (included) or 24V passive PoE on eth0
- Passive PoE passthrough output on eth4
- Power consumption: 5W
- Dimensions: 110 x 75 x 22 mm
- Weight: 175 g
- Operating temperature: -10 to 45°C
- ESD/EMP protection: Air ±24 kV, Contact ±24 kV
- Certifications: CE, FCC, IC

FAQs

Q: What does the AU in ER-X-AU mean?
A: It denotes the variant supplied with an Australian-plug power adapter. The router hardware and EdgeOS features are the same as the standard EdgeRouter X.

Q: Can the EdgeRouter X be powered over PoE?
A: Yes. It accepts 24V passive PoE on eth0 as an alternative to the included 12V adapter.

Q: Does it provide PoE to other devices?
A: Eth4 offers passive PoE passthrough, so a compatible device can be powered from the router when the router itself is powered by PoE.

Q: How many ports does it have and at what speed?
A: It has five Gigabit RJ45 Ethernet ports.

Q: How is the router configured?
A: Through the web-based EdgeOS interface, reachable at the default LAN address of 192.168.1.1.

Q: Can it be wall mounted?
A: Yes. The compact 110 x 75 x 22 mm chassis is designed to be wall-mountable.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
