Moxa UPort 407-T w/o Adapter | UPort 407-T 7-Port Industrial USB 2.0 Hub, -40 to 85°C, No Adapter

Authorised Moxa Partner

SKU:UPort 407-T w/o Adapter

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

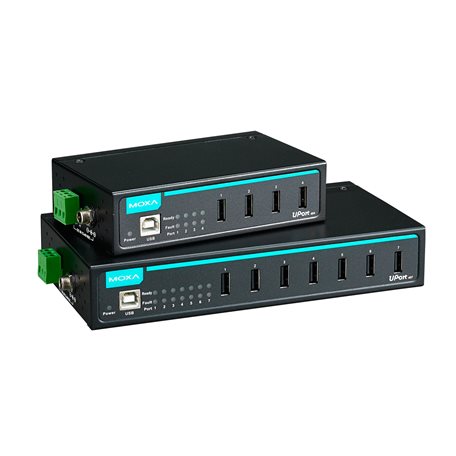

The UPort 407-T is a 7-port industrial USB 2.0 hub supplied without a power adapter, built for wide-temperature deployments from -40 to 85°C. Its aluminium housing, USB Type B upstream connector and 12 to 40 VDC input make it a robust way to expand USB connectivity in factory, field and mobile applications.

Each port delivers up to 500 mA with ESD Level 4 protection, and the hub is USB-IF Hi-Speed certified for dependable 480 Mbps operation. A wall-mounting kit is included, with DIN-rail mounting available as an option.

Features

- USB-IF Hi-Speed certification
- Full 500 mA power per port
- ESD Level 4 protection on each port
- 12 to 40 VDC wide power input suited to mobile applications
- Wide-temperature operation from -40 to 85°C
- Wall-mounting kit included, DIN-rail mounting optional

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 7 x USB 2.0 ports (12/480 Mbps)
- USB Type B upstream connector
- USB 1.1/2.0 compliant, USB-IF Hi-Speed certified
- 500 mA per port
- Input voltage: 12 to 40 VDC
- Input current: 2.3 A @ 12 VDC
- Housing: Aluminium
- Dimensions: 100 x 35 x 192 mm
- Weight: 950 g (product only)
- Operating temperature: -40 to 85°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- ESD: IEC 61000-4-2 Contact 8 kV, Air 15 kV
- Safety: UL 508
- MTBF: 1,111,361 hrs (Telcordia)
- Supplied without power adapter

FAQs

Q: Does the UPort 407-T include a power adapter?
A: No. This SKU is supplied without a power adapter and accepts a 12 to 40 VDC input from your own power source.

Q: What operating temperature range does it support?
A: The UPort 407-T is rated for operation from -40 to 85°C, suited to harsh industrial environments.

Q: How much power does each USB port provide?
A: Each of the 7 USB 2.0 ports supplies up to 500 mA.

Q: What USB speeds are supported?
A: It is USB 1.1/2.0 compliant and supports 12 Mbps and 480 Mbps data rates, with USB-IF Hi-Speed certification.

Q: How can the hub be mounted?
A: A wall-mounting kit is included. DIN-rail mounting is available as an optional accessory.

Q: What protection does it offer against electrostatic discharge?
A: Each port has ESD Level 4 protection, with IEC 61000-4-2 ratings of 8 kV contact and 15 kV air discharge.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
