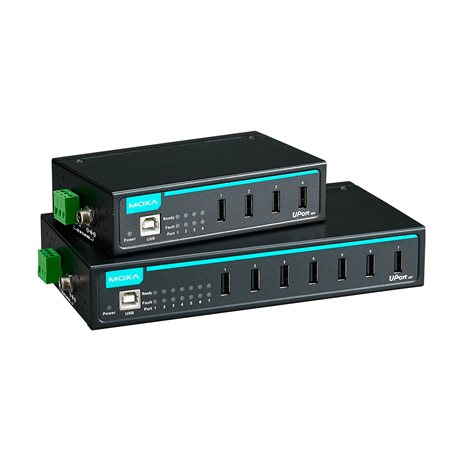

• Moxa UPort 407 7-port industrial USB hub with black body, teal accents, green Ethernet ports
1 1

Moxa

Moxa UPort 407 | UPort 404/407 7-Port Industrial USB 2.0 Hub, Power Adapter

Moxa UPort 407 | UPort 404/407 7-Port Industrial USB 2.0 Hub, Power Adapter

Authorised Moxa Partner

UPort 407

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa UPort 407 is a 7-port industrial USB 2.0 hub that expands a single USB upstream connection into seven Hi-Speed downstream ports at up to 480 Mbps. This standard temperature model operates from 0 to 60°C and ships with a power adapter included, making it ready to deploy in factory, kiosk, and automation cabinets where reliable USB connectivity matters.

Built with a rugged aluminium housing and USB-IF Hi-Speed certification, the UPort 407 provides 500 mA per port, 15 kV ESD Level 4 protection on every USB port, and dual power inputs (power jack and terminal block) accepting 12 to 40 VDC. It is DIN-rail and wall mountable, with diagnostic LEDs for quick status checks.

Features

- USB-IF Hi-Speed certification
- Dual power inputs for flexible installation
- 15 kV ESD Level 4 protection on all USB ports
- Rugged aluminium housing for industrial environments
- DIN-rail and wall mountable
- Comprehensive diagnostic LEDs
- 12 to 40 VDC input suits mobile applications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 7 x USB 2.0 downstream ports, USB Type B upstream connector
- Hi-Speed USB 2.0 up to 480 Mbps, USB 1.1/2.0 compliant
- 500 mA power per USB port
- Input voltage: 12 to 40 VDC
- Dual power inputs: power jack and terminal block
- 15 kV ESD (Level 4) protection on all USB ports
- Aluminium housing
- Dimensions: 100 x 35 x 192 mm
- Weight: 950 g (product only)
- Operating temperature: 0 to 60°C
- MTBF: 1,111,361 hrs
- Power adapter included

FAQs

Q: How many USB ports does the Moxa UPort 407 provide?
A: The UPort 407 provides 7 downstream USB 2.0 ports, connected to the host through a single USB Type B upstream port.

Q: What is the operating temperature range of this model?
A: This standard temperature model operates from 0 to 60°C.

Q: Is a power adapter included?
A: Yes, this standard model ships with a power adapter. The hub also accepts 12 to 40 VDC through its power jack or terminal block.

Q: What data speeds does the hub support?
A: It is a USB-IF certified Hi-Speed USB 2.0 hub supporting up to 480 Mbps and is compliant with USB 1.1 and 2.0 devices.

Q: How much power is available per port?
A: Each downstream port supplies up to 500 mA.

Q: How can the UPort 407 be mounted?
A: It can be DIN-rail mounted or wall mounted, and its aluminium housing suits industrial cabinets.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
