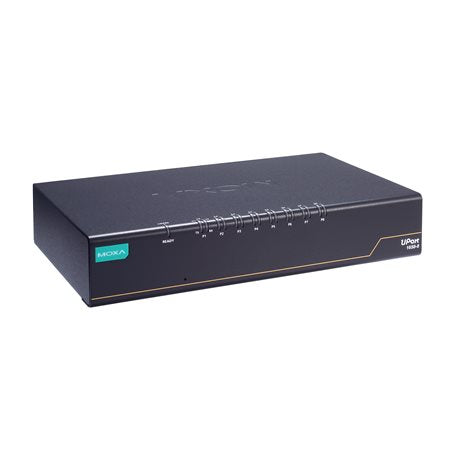

Moxa UPort 1650-8-G2-Hub | USB to 8-Port RS-232/422/485 Converter, 3-Port Hub

Authorised Moxa Partner

SKU:UPort 1650-8-G2-Hub

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UPort 1650-8-G2-Hub is a USB 3.2 Gen 1 to 8-port RS-232/422/485 serial converter that adds 3 downstream USB ports for cascading, making it well suited to industrial automation, data acquisition and device-management setups that need many serial connections from a single USB host. It supports 4-wire RS-422/485 and 2-wire RS-485 applications and operates from 0 to 60°C.

Powered by an external 12 to 48 VDC adapter, the converter can be cascaded with up to 3 UPort-G2 devices to reach up to 32 serial ports without extra power adapters. Baudrates from 50 bps to 921.6 kbps are supported, including non-standard rates, and drivers are available for Windows, Linux and macOS. A latching USB cable design and double-sided corner LEDs for power, TX and RX status make installation and troubleshooting straightforward.

Features

- SuperSpeed USB 3.2 support up to 5 Gbps
- 3 additional downstream USB ports for hub functionality
- Cascades with 3 UPort-G2 devices for up to 32 ports without extra power adapters
- Double-sided corner LEDs show power, TX and RX status
- Latching USB cable design for firmer connections
- No additional I/O or IRQ required
- Drivers for Windows, Linux and macOS
- COM port assignments maintained across different PCs
- Suitable for 4-wire RS-422/485 and 2-wire RS-485 applications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- USB to 8 x RS-232/422/485 serial ports (DB9 male)
- USB 3.2 Gen 1 (5 Gbps), USB 1.1/2.0 compliant (480 Mbps, 12 Mbps)
- 1 x USB Type-B upstream port plus 3 x USB Type-A downstream ports
- Baudrate 50 bps to 921.6 kbps, supports non-standard baudrates
- 512-byte FIFO
- Input voltage 12 to 48 VDC via external power adapter
- Input current 2,250 mA @ 12 VDC
- Downstream output 900 mA @ 5 VDC (USB 3.2) / 500 mA @ 5 VDC (USB 2.0)
- Operating temperature 0 to 60°C
- Weight 689 g (1.52 lb)
- IP20 rating
- MTBF 823,983 hrs (Telcordia SR332)

FAQs

Q: How many serial ports does the UPort 1650-8-G2-Hub provide?
A: It provides 8 serial ports, each software-selectable as RS-232, RS-422 or RS-485, on DB9 male connectors.

Q: What does the Hub designation mean on this model?
A: The Hub variant includes 3 downstream USB Type-A ports in addition to the upstream USB Type-B port, allowing you to cascade additional UPort-G2 devices from the same host connection.

Q: How many serial ports can I reach by cascading?
A: Cascading with 3 UPort-G2 devices gives up to 32 serial ports without needing extra power adapters for the cascaded units.

Q: What power supply does it require?
A: It runs from an external power adapter supplying 12 to 48 VDC, with an input current of 2,250 mA at 12 VDC.

Q: Which operating systems are supported?
A: Drivers are available for Windows, Linux and macOS.

Q: What temperature range does this model support?
A: The standard-temperature UPort 1650-8-G2-Hub operates from 0 to 60°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
