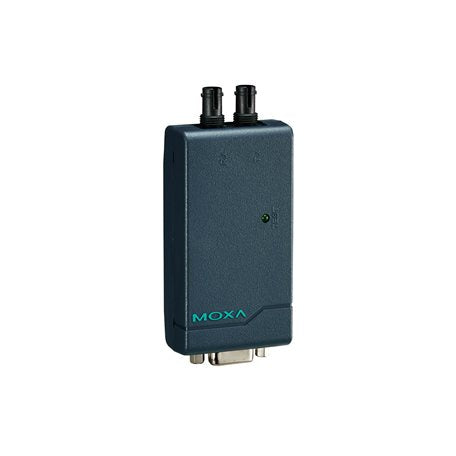

Moxa TCF-90-S-ST | TCF-90 RS-232 to Single-Mode Fibre Converter, ST, 40km

Authorised Moxa Partner

SKU:TCF-90-S-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The TCF-90-S-ST is an industrial RS-232 to single-mode fibre converter with an ST connector, designed to extend serial links up to 40 km over G.652 single-mode fibre at 1310 nm. It is port powered from the serial connection via a 5 to 12 VDC power input jack, supports baudrates from 300 bps to 115.2 kbps, and provides a 20 dB link budget for reliable long-distance serial communication.

By converting RS-232 to fibre, the converter extends serial transmission distance and provides electrical isolation from noise in demanding environments. The compact plastic IP30 desktop housing measures 42 x 80 x 22 mm and weighs 150 g, and the unit includes overload current protection and a 5-year warranty.

Features

- Port-powered operation, so no external power adapter is required for typical use
- Converts RS-232 to single-mode fibre for long-distance transmission up to 40 km
- Extends serial transmission distance and provides electrical isolation from noise
- Overload current protection
- Compact plastic IP30 desktop housing
- 5-year warranty

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standard: RS-232
- Fibre interface: single-mode ST connector
- Typical distance: 40 km (single-mode, 1310 nm)
- Fibre cable requirement: G.652
- Baudrate: 300 bps to 115.2 kbps
- Link budget: 20 dB
- Optical power TX: 0 to -5 dBm
- Optical power RX: 0 to -25 dBm
- Input voltage: 5 to 12 VDC via power input jack, 20 mA max
- RS-232 signals: TxD, RxD, GND
- Housing: plastic, IP30, desktop installation
- Dimensions: 42 x 80 x 22 mm, weight 150 g
- Operating temperature: 0 to 60 C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 2,272,562 hrs
- Warranty: 5 years

FAQs

Q: What serial standard does the TCF-90-S-ST support?
A: It converts RS-232 to single-mode fibre. The RS-232 signals supported are TxD, RxD and GND.

Q: How far can the TCF-90-S-ST transmit?
A: It supports a typical distance of 40 km over G.652 single-mode fibre at a typical wavelength of 1310 nm, with a 20 dB link budget.

Q: Does the TCF-90-S-ST need an external power supply?
A: It is port powered and accepts 5 to 12 VDC through its power input jack, so no external power adapter is required for typical use.

Q: What fibre connector does this model use?
A: This model uses a single-mode ST connector. It is intended for single-mode fibre only.

Q: What baudrates are supported?
A: The converter supports baudrates from 300 bps to 115.2 kbps.

Q: What is the operating temperature range?
A: The standard operating temperature range is 0 to 60 C, and the unit is housed in a plastic IP30 enclosure intended for desktop installation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
