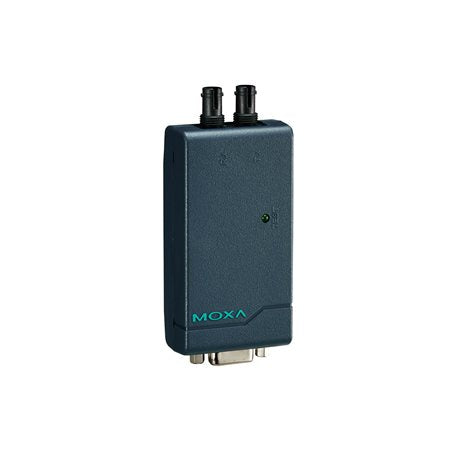

Moxa TCF-90-M-ST | TCF-90 RS-232 to Fibre Converter, Multi-Mode ST, 5km

Authorised Moxa Partner

SKU:TCF-90-M-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TCF-90-M-ST is an RS-232 to fibre converter that links a serial device to a multi-mode fibre optic cable through an ST connector. It extends serial links up to a typical 5 km over multi-mode fibre at 850 nm, supports baud rates from 300 bps to 115.2 kbps, and is port powered from the 5 to 12 VDC power input jack.

Converting serial signals to light gives the link inherent isolation from electrical interference, which suits industrial sites where long cable runs or noisy environments affect copper serial connections. The compact IP30 plastic desktop housing, overload current protection and 0 to 60 C operating range make it a practical choice for extending RS-232 equipment over fibre in the TCF-90 series.

Features

- Converts RS-232 to multi-mode fibre for longer and more reliable serial links
- Port powered, so no external power supply is needed in typical use
- Fibre isolation from electrical interference
- Overload current protection
- Compact IP30 plastic desktop housing

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standard: RS-232
- Fibre connector: multi-mode ST
- Typical distance: 5 km (multi-mode, 850 nm)
- Baud rate: 300 bps to 115.2 kbps
- Fibre cable: 50/125 \u00b5m or 62.5/125 \u00b5m multi-mode
- Link budget: 15 dB
- Power: port powered, 5 to 12 VDC via power input jack, 20 mA max
- Overload current protection supported
- Housing: plastic, IP30, desktop installation
- Dimensions: 42 x 80 x 22 mm
- Weight: 150 g
- Operating temperature: 0 to 60 C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 2,272,562 hrs

FAQs

Q: What fibre type does the TCF-90-M-ST use?
A: It uses multi-mode fibre (50/125 \u00b5m or 62.5/125 \u00b5m) with an ST connector at a typical wavelength of 850 nm.

Q: How far can the TCF-90-M-ST extend an RS-232 link?
A: The typical distance over multi-mode fibre is 5 km.

Q: Does the TCF-90-M-ST need an external power supply?
A: It is port powered and accepts 5 to 12 VDC through its power input jack, drawing 20 mA maximum.

Q: Which RS-232 signals does the converter support?
A: It passes TxD, RxD and GND. The DTR, DSR, DCD, CTS and RTS pins are internally shorted.

Q: What baud rates are supported?
A: The converter supports baud rates from 300 bps up to 115.2 kbps.

Q: Is the TCF-90-M-ST suitable for rack or DIN-rail mounting?
A: It is designed for desktop installation in a compact plastic IP30 housing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
