Description

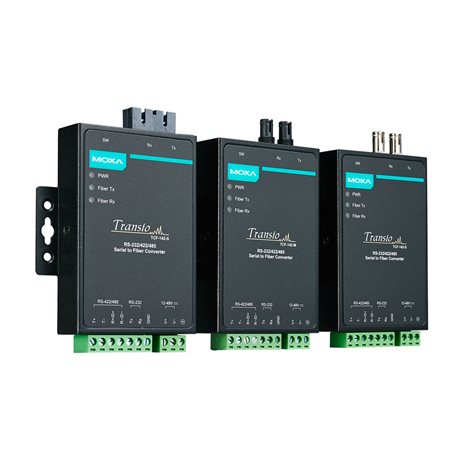

The Moxa TCF-142-S-ST is an industrial RS-232/422/485 to single-mode fibre converter with an ST connector, built to extend serial transmission up to 40 km. It supports both ring and point-to-point topologies, making it well suited to long-distance serial links in factory automation, utilities and transport installations. This variant is the single-mode, ST connector model rated for 0 to 60°C operation.

Two serial ports support RS-232, RS-422 and RS-485 at baudrates from 50 bps to 921.6 kbps, with automatic baudrate detection. Fibre transmission isolates the serial link from electrical interference and chemical corrosion, and the compact IP30 metal housing accepts a wide 12 to 48 VDC power input with overload and reverse polarity protection.

Features

- Ring and point-to-point transmission
- Extends RS-232/422/485 transmission up to 40 km over single-mode fibre
- Automatic baudrate detection
- Compact size
- Reduces signal interference and protects against electrical interference and chemical corrosion
- Supports baudrates from 50 bps to 921.6 kbps

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial interface: 2 ports, RS-232/RS-422/RS-485
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Fibre connector: single-mode ST
- Single-mode fibre: G.652 cable, typical distance 40 km, 1310 nm wavelength
- Link budget: 20 dB, TX power 0 to -5 dBm, RX power 0 to -25 dBm
- ADDC (automatic data direction control) for RS-485
- Pull high/low resistor for RS-485: 1 kΩ, 150 kΩ
- Terminator for RS-485: N/A, 120 Ω, 120 kΩ
- Latency: 300 ns
- Power input: 12 to 48 VDC, 70 to 140 mA, terminal block
- Overload current and reverse polarity protection
- Housing: metal, IP30
- Dimensions (with ears): 90 x 100 x 22 mm
- Operating temperature: 0 to 60°C

FAQs

Q: How far can the TCF-142-S-ST extend a serial connection?
A: With G.652 single-mode fibre at 1310 nm, the typical transmission distance is up to 40 km.

Q: Which serial standards does it support?
A: The two serial ports support RS-232, RS-422 and RS-485, with automatic data direction control (ADDC) for RS-485.

Q: What fibre connector and fibre type does this model use?
A: It uses a single-mode ST connector. The multimode and wide-temperature variants in the TCF-142 range use different part numbers.

Q: Can it be used in a ring topology?
A: Yes. It supports both ring and point-to-point fibre transmission.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through a terminal block and includes overload current and reverse polarity protection.

Q: What is its operating temperature range?
A: This standard-temperature model is rated for 0 to 60°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
