Moxa TCF-142-S-ST-RM | TCF-142-RM RS-232/422/485 to Single-Mode Fiber Converter, ST

Authorised Moxa Partner

SKU:TCF-142-S-ST-RM

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

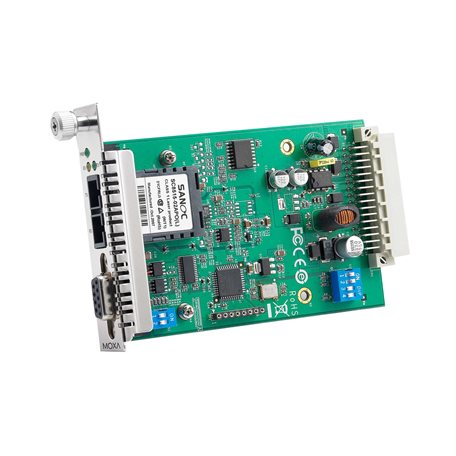

The TCF-142-S-ST-RM is a serial-to-fiber converter that carries RS-232, RS-422 and RS-485 signals over single-mode optical fibre with an ST connector. Built as a slide-in module for the Moxa NRack system, it extends serial links up to 40 km and gives industrial serial networks strong immunity to electrical noise.

It supports baudrates from 50 bps to 921.6 kbps including non-standard rates, and uses automatic data direction control (ADDC) for RS-485 so no flow control configuration is needed. The metal IP30 housing suits rack-based deployments in industrial and telecommunications environments.

Features

- Slide-in module for the Moxa NRack rackmount system
- Automatic data direction control (ADDC) for RS-485
- Supports non-standard baudrates
- Supports RS-232, RS-422 and RS-485 (2-wire and 4-wire)
- Single-mode fibre for long-distance transmission up to 40 km
- Fibre isolation improves noise immunity and protects against interference

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-232, RS-422, RS-485
- Fibre interface: single-mode, ST connector
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Typical single-mode distance: up to 40 km (G.652 fibre, 1310 nm)
- Optical TX power: 0 to -5 dBm
- Optical RX range: 0 to -25 dBm
- Link budget: 20 dB
- Flow control: ADDC (automatic data direction control) for RS-485
- Housing: metal, IP30
- Dimensions: 86.8 x 136.5 x 21 mm
- Weight: 105 g
- Operating temperature: 0 to 60°C
- Storage temperature: -20 to 75°C
- Humidity: 5 to 95% (non-condensing)
- MTBF: 514,926 hrs (Telcordia)
- Safety: EN 60950-1, IEC 60950-1

FAQs

Q: What serial standards does the TCF-142-S-ST-RM support?
A: It supports RS-232, RS-422 and RS-485, including 2-wire and 4-wire RS-485 operation.

Q: How far can this converter transmit over fibre?
A: With single-mode fibre (G.652, 1310 nm) it supports typical distances of up to 40 km, within a 20 dB link budget.

Q: What type of fibre connector does it use?
A: It uses an ST connector on a single-mode fibre interface.

Q: Is this a standalone unit?
A: No. It is a slide-in module designed for the Moxa NRack rackmount system.

Q: Do I need to configure RS-485 direction control?
A: No. ADDC (automatic data direction control) handles RS-485 data direction automatically.

Q: What baudrates are supported?
A: From 50 bps to 921.6 kbps, including non-standard baudrates.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
