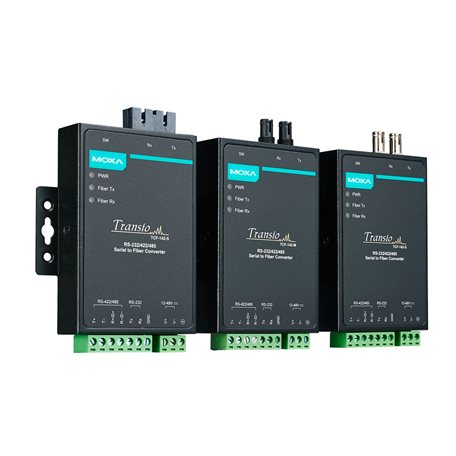

Moxa TCF-142-S-SC-T | TCF-142 RS-232/422/485 to Single-Mode Fibre Converter, SC, -40 to 75°C

Authorised Moxa Partner

SKU:TCF-142-S-SC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TCF-142-S-SC-T is an industrial RS-232/422/485 to single-mode fibre converter with an SC connector, built to extend serial links up to 40 km. It supports both ring and point-to-point fibre topologies and operates across a wide -40 to 75°C temperature range, making it suited to harsh industrial environments where serial devices need to be connected over long distances or through electrically noisy areas.

Fibre transmission helps reduce signal interference and protects serial links from electrical interference and chemical corrosion. Automatic baudrate detection, automatic data direction control for RS-485 and selectable termination simplify installation, while the compact metal housing and 12 to 48 VDC power input suit control cabinets and edge connectivity deployments.

Features

- Ring and point-to-point fibre transmission
- Automatic baudrate detection
- Automatic Data Direction Control (ADDC) for RS-485
- Selectable RS-485 termination: N/A, 120 Ω, 120 kΩ
- Reverse polarity and overload current protection
- Reduces signal interference and protects against electrical interference and chemical corrosion
- Compact size
- Wide temperature design for -40 to 75°C operation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial interface: RS-232 / RS-422 / RS-485 (2-wire and 4-wire), configurable for RS-232 or RS-422/485 but not both at once
- Fibre: single-mode (G.652), SC connector, 1310 nm typical wavelength
- Transmission distance: up to 40 km (single-mode)
- Fibre ring circumference: up to 100 km total
- Link budget: 20 dB, 1 dB dispersion penalty
- TX optical power: 0 to -5 dBm; RX: 0 to -25 dBm
- Baudrate: 50 bps to 921.6 kbps
- Signal latency: 300 ns
- Serial connector: 7-pin terminal block
- Power input: 12 to 48 VDC, terminal block; 140 mA @ 12 VDC
- Operating temperature: -40 to 75°C
- Housing: metal, IP30
- Dimensions (with ears): 90 x 100 x 22 mm; (without ears): 67 x 100 x 22 mm
- Weight: 320 g
- Mounting: wall mount (DIN-rail with optional kit)

FAQs

Q: What fibre type and connector does the TCF-142-S-SC-T use?
A: It uses single-mode fibre (G.652) with an SC connector, with a typical wavelength of 1310 nm.

Q: How far can the TCF-142-S-SC-T transmit over fibre?
A: Up to 40 km over single-mode fibre in a point-to-point link. In a ring topology the total ring circumference can reach 100 km.

Q: Which serial standards does it support?
A: RS-232, RS-422 and RS-485 (2-wire and 4-wire). It can be configured for RS-232 or for RS-422/485, but not both at the same time.

Q: What power supply does it require?
A: A 12 to 48 VDC input via terminal block, drawing 140 mA at 12 VDC. The unit includes reverse polarity and overload current protection.

Q: Can it be mounted on a DIN rail?
A: It is wall mountable as standard. DIN-rail mounting is available with an optional kit.

Q: Is it suitable for extreme temperatures?
A: Yes. The TCF-142-S-SC-T is the wide-temperature model, rated for operation from -40 to 75°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
