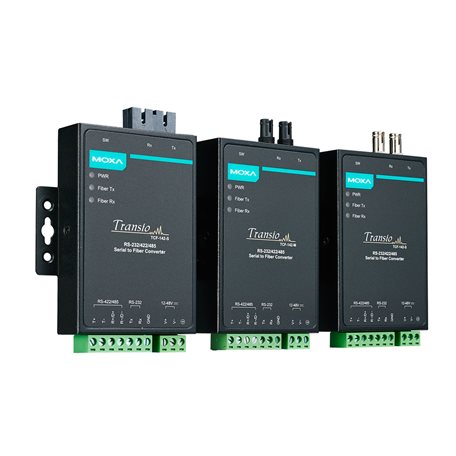

Moxa TCF-142-S-SC | TCF-142 RS-232/422/485 to Fibre Converter, Single-Mode, SC

Authorised Moxa Partner

SKU:TCF-142-S-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TCF-142-S-SC is an industrial RS-232/422/485 to single-mode fibre converter with an SC connector, designed to extend serial links up to 40 km over fibre. It supports both ring and point-to-point topologies, making it well suited to factory automation, utilities and transport deployments where serial devices must be linked across long distances or electrically noisy environments.

The converter operates across 0 to 60°C and is powered from a 12 to 48 VDC input with reverse polarity and overload current protection. A compact aluminium housing, wall mounting as standard with an optional DIN-rail kit, and automatic baudrate detection make installation straightforward, while ADDC handles RS-485 data direction control automatically.

Features

- Ring and point-to-point transmission
- Extends RS-232/422/485 up to 40 km over single-mode fibre
- Automatic baudrate detection
- ADDC automatic RS-485 data direction control
- Protects against electrical interference and chemical corrosion
- Compact size
- Reverse polarity and overload current protection
- Wall mounting as standard, optional DIN-rail kit

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-232, RS-422, RS-485 (2-wire and 4-wire)
- Serial ports: 2 (7-pin terminal block)
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Fibre connector: SC
- Fibre type: single-mode (G.652; 8.3/125, 8.7/125, 9/125 or 10/125 um)
- Typical distance: 40 km
- Wavelength: 1310 nm typical
- TX range: 1290 to 1330 nm; TX output above -5 dBm
- RX range: 1100 to 1650 nm; RX sensitivity -25 dBm
- Link budget: 20 dB
- Point-to-point: half-duplex or full-duplex; ring: half-duplex
- Input voltage: 12 to 48 VDC
- Operating temperature: 0 to 60°C
- ESD protection: 15 kV for all signals
- Housing: 1 mm aluminium
- Dimensions: 67 x 100 x 22 mm (90 x 100 x 22 mm with ears)

FAQs

Q: What serial standards does the TCF-142-S-SC support?
A: It supports RS-232, RS-422 and RS-485 (2-wire and 4-wire) over its 7-pin terminal block serial interface.

Q: How far can this converter transmit?
A: With single-mode fibre it extends serial links up to 40 km, using a 1310 nm typical wavelength and a 20 dB link budget.

Q: What fibre type and connector does it use?
A: It uses single-mode fibre (G.652) with an SC connector.

Q: Does it support ring topology?
A: Yes. It supports both ring and point-to-point topologies. Ring transmission is half-duplex, while point-to-point can run half-duplex or full-duplex.

Q: What power input does it require?
A: It accepts 12 to 48 VDC and includes reverse polarity and overload current protection.

Q: How do I mount it?
A: Wall mounting is standard. A DIN-rail kit is available as an optional accessory.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
