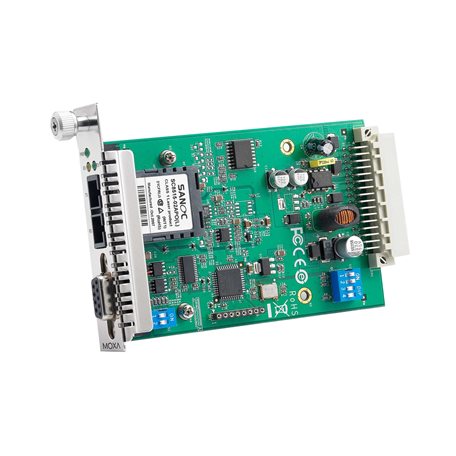

Moxa TCF-142-S-SC-RM | TCF-142-RM Serial to Fibre Converter, Single-Mode SC, 40km

Authorised Moxa Partner

SKU:TCF-142-S-SC-RM

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TCF-142-S-SC-RM is a serial to fibre converter for industrial networks, converting RS-232/422/485 signals to single-mode fibre over an SC connector. It extends serial transmission up to 40 km, making it well suited to long-distance serial links in factories, utilities and transport infrastructure, with support for both ring and point-to-point topologies.

Designed as a slide-in module for the Moxa NRack system, it works with the TRC-190 chassis for centralised rack-mount deployment. The module offers 2 serial ports, baudrates from 50 bps to 921.6 kbps including non-standard rates, ADDC for RS-485, and an adjustable pull high/low resistor in a compact metal IP30 housing.

Features

- Extends RS-232/422/485 transmission up to 40 km over single-mode fibre
- Slide-in module for the NRack system, compatible with the TRC-190 chassis
- Supports ring and point-to-point transmission topologies
- ADDC for automatic data direction control on RS-485
- Adjustable 1K or 150K ohm pull high/low resistor
- Supports non-standard baudrates from 50 bps to 921.6 kbps

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Interface: RS-232/422/485 to single-mode fibre
- Number of serial ports: 2
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Flow control: ADDC (automatic data direction control) for RS-485
- Fibre connector: single-mode SC
- Fibre cable requirement: G.652
- Typical distance: 40 km
- Typical wavelength: 1310 nm
- TX range: 1290 to 1330 nm
- RX range: 1100 to 1650 nm
- Optical power TX: 0 to -5 dBm
- Optical power RX: 0 to -25 dBm
- Link budget: 20 dB
- Dispersion penalty: 1 dB
- Housing: metal, IP30
- Dimensions: 86.8 x 136.5 x 21 mm
- Weight: 105 g
- Operating temperature: 0 to 60 C
- Storage temperature: -20 to 75 C
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- Safety: EN 60950-1, IEC 60950-1
- Vibration: IEC 60068-2-6

FAQs

Q: What chassis does the TCF-142-S-SC-RM fit?
A: It is a slide-in module for the Moxa NRack system and works with the TRC-190 chassis.

Q: What serial standards does it support?
A: It supports RS-232, RS-422 and RS-485 across its 2 serial ports, with ADDC automatic data direction control for RS-485.

Q: How far can it transmit over fibre?
A: Up to 40 km using single-mode G.652 fibre with SC connectors, at a typical wavelength of 1310 nm and a 20 dB link budget.

Q: Does it support ring topologies?
A: Yes. It supports both ring and point-to-point serial-over-fibre transmission.

Q: What baudrates are supported?
A: Baudrates from 50 bps to 921.6 kbps, including non-standard baudrates.

Q: Can it be used with multimode fibre?
A: No. This SKU is the single-mode SC version and requires G.652 single-mode fibre.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
