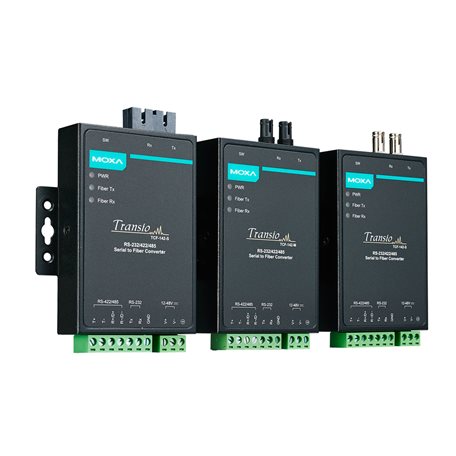

Moxa TCF-142-M-ST-T | TCF-142 Serial-to-Fiber Converter, Multi-Mode ST, -40 to 75°C

Authorised Moxa Partner

SKU:TCF-142-M-ST-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The TCF-142 Serial-to-Fiber Converter with multi-mode ST connector links RS-232/422/485 serial devices to optical fibre for reliable, interference-free serial communication over distances of up to 5 km. This -40 to 75°C wide-temperature model suits factory automation, transport, utilities and other harsh industrial sites, and supports fibre ring topologies for extended or redundant serial networks.

The converter provides 2 serial ports, baudrates from 50 bps to 921.6 kbps including non-standard rates, and automatic data direction control (ADDC) for RS-485. It runs from a 12 to 48 VDC input with overload current and reverse polarity protection, and is housed in an IP30 metal enclosure designed for wall mounting.

Features

- Converts RS-232/422/485 serial signals to optical fibre
- Fibre ring support for extended or redundant serial networks
- Automatic data direction control (ADDC) for RS-485
- Supports non-standard baudrates
- Overload current and reverse polarity protection
- Wide operating temperature range of -40 to 75°C
- Rugged IP30 metal housing with wall mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 serial ports (RS-232/422/485)
- Fibre connector: multi-mode ST
- Typical distance (multi-mode): 5 km at 850 nm
- Fibre cable: 50/125 µm, 800 MHz or 62.5/125 µm, 500 MHz
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- RS-485 data direction control: ADDC
- Link budget (multi-mode): 15 dB
- Input voltage: 12 to 48 VDC, terminal block connector
- Input current: 70 to 140 mA @ 12 to 48 VDC
- Overload current and reverse polarity protection
- Housing: IP30 metal, wall mounting
- Dimensions (with ears): 90 x 100 x 22 mm
- Weight: 320 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 780,480 hrs

FAQs

Q: What serial standards does the TCF-142-M-ST-T support?
A: It supports RS-232, RS-422 and RS-485 on its 2 serial ports, with automatic data direction control (ADDC) for RS-485.

Q: What fibre type and distance does this model support?
A: It uses a multi-mode ST connector at 850 nm with 50/125 µm or 62.5/125 µm fibre, for a typical distance of up to 5 km.

Q: What operating temperature range does the -T variant cover?
A: This model operates from -40 to 75°C, making it suitable for outdoor cabinets and harsh industrial environments.

Q: How is the converter powered?
A: It takes a single 12 to 48 VDC input via a terminal block, with overload current and reverse polarity protection.

Q: Can it be used in a fibre ring topology?
A: Yes, the TCF-142 series supports fibre ring topologies for extending serial networks over optical fibre.

Q: How does it differ from the single-mode TCF-142 models?
A: This SKU has a multi-mode ST connector for runs of up to 5 km, while single-mode versions use different fibre and are intended for longer distances.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
