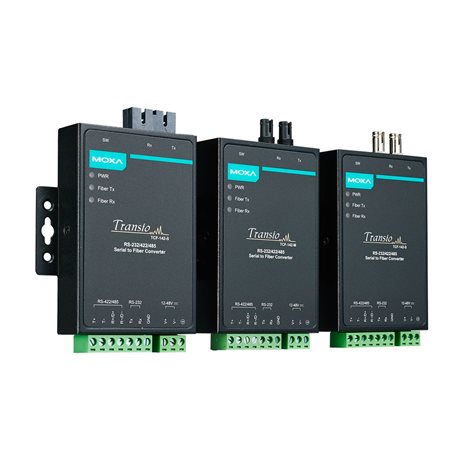

Moxa TCF-142-M-ST | TCF-142 Serial-to-Fiber Converter, Multi-Mode, ST, 0-60C

Authorised Moxa Partner

SKU:TCF-142-M-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TCF-142-M-ST is an industrial serial-to-fiber converter that carries RS-232/422/485 serial signals over multi-mode optical fibre through an ST connector. It extends serial transmission up to 5 km at 850 nm, supports fibre ring topology, and operates across a standard 0 to 60°C temperature range.

Two serial ports support baudrates from 50 bps to 921.6 kbps, including non-standard rates, with automatic data direction control for RS-485. A 12 to 48 VDC terminal block power input with reverse polarity and overload current protection, plus a rugged IP30 metal housing for wall mounting, makes it suited to factory floors, control cabinets and other electrically noisy environments where fibre isolation is needed.

Features

- Converts RS-232/422/485 serial signals to optical fibre
- Supports fibre ring topology
- Automatic data direction control (ADDC) for RS-485
- Extends serial transmission up to 5 km over multi-mode fibre
- Supports non-standard baudrates
- Reverse polarity and overload current protection on the power input
- Rugged IP30 metal housing for wall mounting
- Standard operating temperature range of 0 to 60°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x serial ports (RS-232/422/485)
- Multi-mode fibre, ST connector, 850 nm, typical distance 5 km
- Fibre cable: 50/125 µm or 62.5/125 µm multi-mode
- Link budget 15 dB, dispersion penalty 1 dB
- Baudrate: 50 bps to 921.6 kbps, non-standard baudrates supported
- Latency: 300 ns
- Input voltage: 12 to 48 VDC, terminal block, 70 to 140 mA
- Overload current and reverse polarity protection
- IP30 metal housing, wall mounting
- Dimensions (with ears): 90 x 100 x 22 mm
- Weight: 320 g
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- MTBF: 780,480 hrs
- 5-year warranty

FAQs

Q: What fibre type does the TCF-142-M-ST use?
A: It uses multi-mode fibre with an ST connector, with 50/125 µm or 62.5/125 µm cable at a typical wavelength of 850 nm.

Q: How far can the TCF-142-M-ST extend a serial connection?
A: Typical distance over multi-mode fibre is up to 5 km, with a 15 dB link budget.

Q: Which serial interfaces are supported?
A: The two serial ports support RS-232, RS-422 and RS-485, with automatic data direction control for RS-485.

Q: What power supply does it require?
A: It runs from a 12 to 48 VDC input via a terminal block, drawing 70 to 140 mA, with reverse polarity and overload current protection.

Q: What is the operating temperature range?
A: This model operates from 0 to 60°C, suited to standard industrial environments rather than extended wide-temperature use.

Q: Can it be used in a fibre ring topology?
A: Yes, the TCF-142 series supports fibre ring topology for redundant serial-over-fibre links.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
