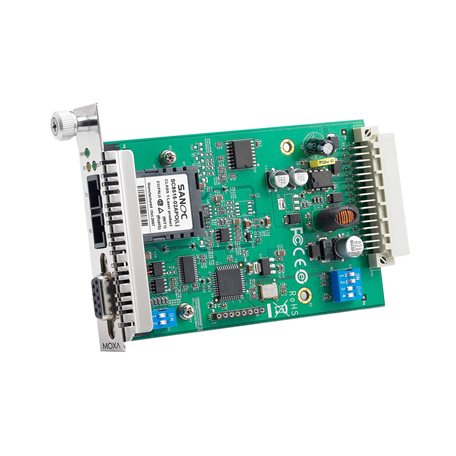

Moxa TCF-142-M-ST-RM | TCF-142-RM RS-232/422/485 to Multi-Mode Fibre Converter, ST

Authorised Moxa Partner

SKU:TCF-142-M-ST-RM

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TCF-142-M-ST-RM is an industrial RS-232/422/485 to multi-mode fibre converter with an ST connector, built as a slide-in module for the Moxa NRack system. It extends serial transmission distance up to 5 km over multi-mode fibre and improves noise immunity in electrically harsh industrial environments. This 0 to 60°C variant suits controlled cabinets and control rooms.

With two serial ports, automatic data direction control (ADDC) for RS-485 and support for baudrates from 50 bps to 921.6 kbps including non-standard rates, it integrates easily with legacy serial devices. A rugged IP30 metal housing and overload current protection make it dependable for factory automation, utilities and building infrastructure.

Features

- Slide-in module for the Moxa NRack rack-mount system
- Extends RS-232/422/485 transmission distance over fibre
- Automatic data direction control (ADDC) for RS-485
- Supports non-standard baudrates
- Overload current protection
- Rugged metal housing for industrial use

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x serial ports supporting RS-232, RS-422 and RS-485
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Flow control: ADDC (automatic data direction control) for RS-485
- Fibre connector: multi-mode ST
- Multi-mode fibre: 50/125 µm 800 MHz or 62.5/125 µm 500 MHz, typical distance 5 km
- Wavelength: 850 nm typical (TX 840-860 nm, RX 800-900 nm)
- Link budget: 15 dB, dispersion penalty 1 dB
- Power input: 150 mA @ 12 VDC with overload current protection
- Housing: metal, IP30
- Dimensions: 86.8 x 136.5 x 21 mm
- Weight: 105 g
- Operating temperature: 0 to 60°C
- Storage temperature: -20 to 75°C
- Humidity: 5 to 95% (non-condensing)
- MTBF: 514,926 hrs
- EMI: CISPR 32, FCC Part 15B Class A

FAQs

Q: What type of fibre does the TCF-142-M-ST-RM use?
A: It uses multi-mode fibre (50/125 µm or 62.5/125 µm) with an ST connector, with a typical transmission distance of 5 km.

Q: Which serial interfaces does this converter support?
A: It has two serial ports supporting RS-232, RS-422 and RS-485, with ADDC for RS-485 data direction control.

Q: Does it work as a standalone unit?
A: It is a slide-in module designed for the Moxa NRack system, so it is installed in a compatible NRack chassis that supplies power.

Q: What baudrates are supported?
A: Baudrates from 50 bps to 921.6 kbps are supported, including non-standard baudrates.

Q: What is the operating temperature range?
A: This variant operates from 0 to 60°C and is rated IP30 with a metal housing.

Q: How does it improve serial communication reliability?
A: Converting serial signals to fibre extends the distance and removes susceptibility to electrical noise and interference common in industrial settings.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
