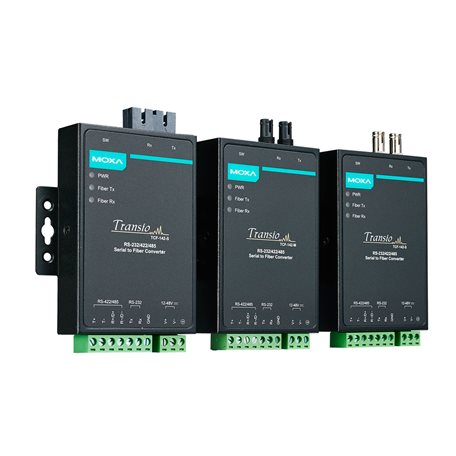

• Moxa TCF-142-M-SC fiber converter with black moxa transceivers, green terminals, teal branding
1 1

Moxa

Moxa TCF-142-M-SC | TCF-142 RS-232/422/485 Serial-to-Fiber Converter, Multi-Mode SC

Moxa TCF-142-M-SC | TCF-142 RS-232/422/485 Serial-to-Fiber Converter, Multi-Mode SC

Authorised Moxa Partner

TCF-142-M-SC

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The TCF-142-M-SC is an industrial RS-232/422/485 to multi-mode fibre converter with an SC connector, built to extend serial links up to 5 km over 850 nm multi-mode fibre. It supports both point-to-point and fibre ring topologies, and is rated for operation from 0 to 60°C, making it a practical choice for factory floors, substations and other electrically noisy environments.

Two serial ports support RS-232, RS-422 and RS-485 at baudrates from 50 bps to 921.6 kbps, including non-standard rates, with patented ADDC automatic data direction control for RS-485. Fibre transmission helps protect serial data from electrical interference and chemical corrosion, and fibre rings can reach a total circumference of up to 100 km. The IP30 metal housing accepts 12 to 48 VDC via a terminal block, with overload current and reverse polarity protection.

Features

- Ring and point-to-point fibre transmission
- Extends RS-232/422/485 serial links up to 5 km over multi-mode fibre
- Fibre rings with a total circumference of up to 100 km
- Patented ADDC automatic data direction control for RS-485
- Supports baudrates up to 921.6 kbps
- Reduces signal interference
- Protects against electrical interference and chemical corrosion
- Rugged IP30 metal housing for industrial installations

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 serial ports (RS-232/422/485)
- Multi-mode fibre with SC connector
- Typical transmission distance up to 5 km
- Wavelength 850 nm typical (TX 840 to 860 nm, RX 800 to 900 nm)
- Fibre cable: 50/125 µm (800 MHz) or 62.5/125 µm (500 MHz)
- Optical TX power 0 to -5 dBm, RX power 0 to -20 dBm
- Link budget 15 dB, dispersion penalty 1 dB
- Baudrate 50 bps to 921.6 kbps, non-standard baudrates supported
- Latency 300 ns
- Input voltage 12 to 48 VDC, 70 to 140 mA
- Overload current and reverse polarity protection
- Terminal block power connector
- IP30 metal housing
- Dimensions with ears 90 x 100 x 22 mm, without ears 67 x 100 x 22 mm
- Operating temperature 0 to 60°C

FAQs

Q: What fibre type does the TCF-142-M-SC use?
A: It uses multi-mode fibre with an SC connector, 50/125 µm (800 MHz) or 62.5/125 µm (500 MHz), operating at 850 nm.

Q: How far can it transmit serial data?
A: Typical transmission distance over multi-mode fibre is up to 5 km, with a 15 dB link budget.

Q: Which serial standards and speeds are supported?
A: It supports RS-232, RS-422 and RS-485 on 2 ports at baudrates from 50 bps to 921.6 kbps, including non-standard baudrates.

Q: Can it be used in a fibre ring?
A: Yes. It supports both ring and point-to-point topologies, with fibre rings up to 100 km in total circumference.

Q: What power does it require?
A: A single 12 to 48 VDC input via terminal block, drawing 70 to 140 mA, with overload current and reverse polarity protection.

Q: What is the operating temperature range?
A: The TCF-142-M-SC operates from 0 to 60°C. It is housed in an IP30-rated metal enclosure.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
