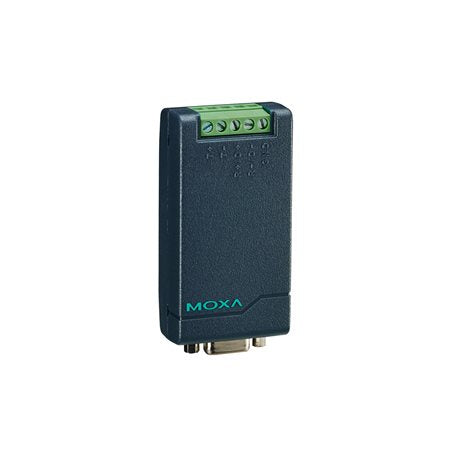

• Moxa TCC-80-DB9 black RS-232 to RS-422/485 converter with green terminals, DB9 connector
1 1

Moxa

Moxa TCC-80-DB9 | TCC-80 Port-Powered RS-232 to RS-422/485 Converter, DB9

Moxa TCC-80-DB9 | TCC-80 Port-Powered RS-232 to RS-422/485 Converter, DB9

Authorised Moxa Partner

TCC-80-DB9

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The TCC-80-DB9 is a port-powered RS-232 to RS-422/485 serial converter that needs no external power source, drawing its energy from the RS-232 TxD line. It converts RS-422 and both 2-wire and 4-wire RS-485, with a DB9 female connector on the RS-232 side and a DB9 male connector on the RS-422/485 side (non-isolated). Automatic data direction control and automatic baudrate detection mean it works with no configuration in most serial setups.

The compact desktop unit supports baudrates from 300 bps to 115.2 kbps and includes built-in 120-ohm termination resistors, with 15 kV serial ESD protection to protect connected equipment. An optional 5 to 12 VDC external supply can be used, but is not required. The housing combines a plastic top cover with a metal bottom plate, and the unit operates from 0 to 60°C.

Features

- Complete RS-232 to RS-422/485 signal conversion without an external power source
- Port-powered from the RS-232 TxD line, with optional external power supported
- Converts RS-422 and both 2-wire and 4-wire RS-485
- Automatic data direction control (ADDC) for RS-485
- Automatic baudrate detection
- 15 kV serial ESD protection
- Built-in 120-ohm termination resistors
- Compact desktop design

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Conversion: RS-232 to RS-422/485
- RS-232 side: DB9 female
- RS-422/485 side: DB9 male (non-isolated)
- Serial standards: RS-232, RS-422, RS-485
- Baudrate: 300 bps to 115.2 kbps
- RS-485 data direction control: ADDC (automatic)
- RS-485 terminator: N/A, 120 ohms or 120 kilo-ohms
- Power: port-powered, optional 5 to 12 VDC via power input jack
- Input current: 30 mA @ 5 to 12 VDC
- Overload current protection: supported
- Serial ESD protection: 15 kV
- Housing: plastic top cover, metal bottom plate, IP30
- Dimensions: 42 x 91 x 23.6 mm
- Weight: 50 g
- Installation: desktop
- Operating temperature: 0 to 60°C
- Storage temperature: -20 to 75°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/35
- Safety: UL 60950-1
- MTBF: 2,781,161 hrs

FAQs

Q: Does the TCC-80-DB9 need an external power supply?
A: No. It is port-powered from the RS-232 TxD line, so no external power is required. A 5 to 12 VDC supply can optionally be connected to the power input jack.

Q: Which serial standards does it convert between?
A: It converts RS-232 to RS-422, 4-wire RS-485 and 2-wire RS-485.

Q: What connectors does this model use?
A: The RS-232 side uses a DB9 female connector and the RS-422/485 side uses a DB9 male connector.

Q: Do I need to configure RS-485 direction control or baudrate?
A: No. It provides automatic data direction control (ADDC) and automatic baudrate detection, with support for baudrates from 300 bps to 115.2 kbps.

Q: Is the RS-422/485 side isolated?
A: No. The TCC-80-DB9 is the non-isolated model. The TCC-80I series covers applications requiring isolation.

Q: Does it include termination resistors?
A: Yes. It has built-in 120-ohm termination resistors for the RS-485 side.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
