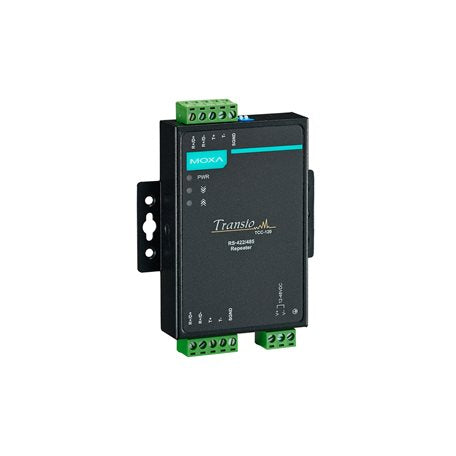

Moxa TCC-120I | RS-422/485 Repeater, 2 kV Optical Isolation, DIN-Rail

Authorised Moxa Partner

SKU:TCC-120I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TCC-120I is an industrial RS-422/485 converter and repeater with 2 kV optical isolation, designed to extend serial transmission distance or convert RS-422 to RS-485. Its isolated design protects connected equipment from ground loops and electrical surges, which makes it well suited to factory automation, building management and remote monitoring networks.

The TCC-120I supports 2-wire and 4-wire RS-485 as well as RS-422, with automatic data direction control and baudrates from 50 bps to 921.6 kbps. A rugged metal IP30 housing, terminal block wiring, and a 12 to 48 VDC power input allow straightforward installation by DIN-rail (with optional kit) or wall mounting in demanding industrial environments.

Features

- Boosts serial signals to extend transmission distance
- Boosts RS-422 or RS-485 signals, or converts RS-422 to RS-485
- 2 kV optical isolation protects connected equipment
- Automatic data direction control for RS-485
- DIP switch setting for built-in 120 ohm terminator
- Terminal block wiring for easy installation
- Wall mounting or DIN-rail mounting options
- Rugged metal housing for industrial environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x serial ports with terminal block connector
- Serial standards: RS-422, RS-485 (2-wire and 4-wire)
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Isolation: 2 kV optical
- RS-485 data direction control: ADDC (automatic data direction control)
- Pull high/low resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohms
- Input voltage: 12 to 48 VDC, 1 power input via terminal block
- Input current: 180 mA @ 12 VDC
- Overload current protection supported
- Housing: metal, IP30
- Dimensions: 67 x 100.4 x 22 mm
- Weight: 148 g
- Installation: DIN-rail mounting (with optional kit) or wall mounting
- Operating temperature: -20 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/35, CISPR 32, FCC Part 15B Class A
- Safety: UL 60950-1
- MTBF: 1,949,025 hrs (Telcordia (Bellcore), GB)

FAQs

Q: What is the difference between the TCC-120I and the TCC-120?
A: The TCC-120I adds 2 kV optical isolation to protect the connected system, while the TCC-120 is the non-isolated model in the same series.

Q: Can the TCC-120I convert RS-422 to RS-485?
A: Yes. It can convert RS-422 to RS-485, or boost an RS-422 or RS-485 signal to extend transmission distance.

Q: Does it support both 2-wire and 4-wire RS-485?
A: Yes. It supports RS-422, 4-wire RS-485 and 2-wire RS-485, wired through the terminal block.

Q: What power supply does the TCC-120I need?
A: It accepts a 12 to 48 VDC input via the terminal block and draws 180 mA at 12 VDC.

Q: How is the TCC-120I mounted?
A: It can be wall mounted, or DIN-rail mounted using the optional DIN-rail kit.

Q: Is a termination resistor built in?
A: Yes. A DIP switch lets you enable a built-in 120 ohm terminator and select the RS-485 pull high/low resistor values.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
