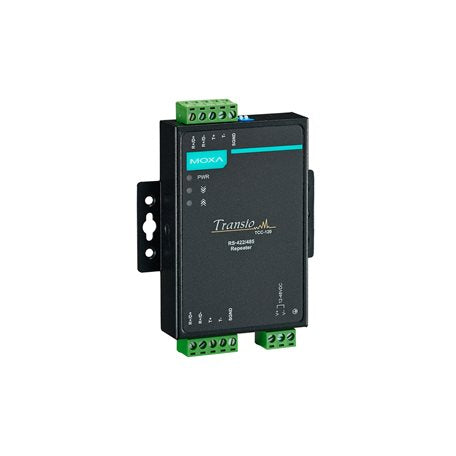

Moxa TCC-120 | RS-422/485 Converter Repeater, Non-Isolated, DIN-Rail

Authorised Moxa Partner

SKU:TCC-120

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TCC-120 is an industrial RS-422/485 serial converter and repeater that boosts serial signals to extend transmission distance, or converts RS-422 to RS-485. This is the non-isolated model, without the 2 kV isolation found on the TCC-120I. It provides two RS-422/485 ports on terminal blocks, with baudrates from 50 bps to 921.6 kbps.

Built in a metal housing for DIN-rail or wall mounting, the TCC-120 accepts 12 to 48 VDC and operates from -20 to 60 °C. Automatic data direction control for RS-485, selectable pull high/low resistors and a DIP switch for the built-in 120 ohm terminator simplify installation in industrial serial networks.

Features

- Boosts serial signals to extend transmission distance
- Boosts RS-422 or RS-485 signals, or converts RS-422 to RS-485
- Automatic data direction control (ADDC) for RS-485
- DIP switch setting for built-in 120 ohm terminator
- Terminal block for easy wiring of data and power
- Wall or DIN-rail mounting
- Overload current protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-422/485 serial ports with terminal block connectors
- Serial standards: RS-422, RS-485 (2-wire and 4-wire)
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- RS-485 data direction control: ADDC (automatic)
- Pull high/low resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohms
- Input voltage: 12 to 48 VDC, 65 mA @ 12 VDC
- Overload current protection supported
- Isolation: none (non-isolated model)
- Metal housing, DIN-rail or wall mounting
- Dimensions: 67 x 100.4 x 22 mm, weight 148 g
- Operating temperature: -20 to 60 °C
- Storage temperature: -20 to 75 °C
- Ambient relative humidity: 5 to 95% (non-condensing)

FAQs

Q: What does the Moxa TCC-120 do?
A: It boosts RS-422 or RS-485 serial signals to extend transmission distance, and can also convert RS-422 to RS-485.

Q: What is the difference between the TCC-120 and TCC-120I?
A: The TCC-120 is non-isolated, while the TCC-120I adds 2 kV isolation. Other core functions are shared across the series.

Q: What power input does the TCC-120 require?
A: It accepts 12 to 48 VDC through a terminal block, drawing 65 mA at 12 VDC, with overload current protection.

Q: How is the TCC-120 mounted?
A: It can be mounted on a DIN rail or on a wall, and its metal housing suits industrial cabinets.

Q: Does it support 2-wire and 4-wire RS-485?
A: Yes. It supports RS-422, RS-485 4-wire and RS-485 2-wire signalling, with automatic data direction control for RS-485.

Q: Can the RS-485 line be terminated on the unit?
A: Yes. A DIP switch enables the built-in 120 ohm terminator, and selectable pull high/low resistors are provided.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
