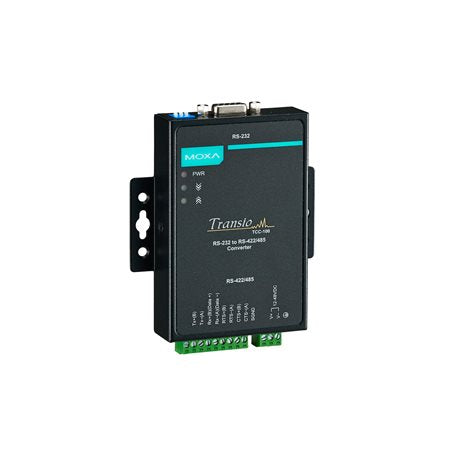

Moxa TCC-100I-T | RS-232 to RS-422/485 Converter, 2 kV Isolation, -40 to 85°C

Authorised Moxa Partner

SKU:TCC-100I-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TCC-100I-T is an industrial RS-232 to RS-422/485 serial converter with 2 kV optical isolation and a wide -40 to 85°C operating temperature range. It converts RS-232 to RS-422, 2-wire RS-485 or 4-wire RS-485, making it well suited to extending serial links in factory automation, power and outdoor installations where electrical noise and temperature extremes are a concern.

Baudrates from 50 bps to 921.6 kbps are supported, including non-standard rates, and RS-485 data direction is handled automatically with ADDC. The converter mounts on a DIN rail or wall, runs from a 12 to 48 VDC input, and uses plug-in terminal blocks for quick RS-422/485 wiring.

Features

- RS-232 to RS-422 conversion with RTS/CTS support
- RS-232 to 2-wire or 4-wire RS-485 conversion
- 2 kV optical isolation protection
- Wide operating temperature range of -40 to 85°C
- Wall mounting and DIN-rail mounting
- Plug-in terminal block for easy RS-422/485 wiring
- LED indicators for power, Tx and Rx

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Conversion: RS-232 to RS-422, 2-wire RS-485 or 4-wire RS-485
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Isolation: 2 kV optical isolation
- Connector: terminal block
- RS-485 data direction control: ADDC (automatic data direction control)
- Pull high/low resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- RS-485 terminator: N/A, 120 ohms, 120 kilo-ohms
- Input voltage: 12 to 48 VDC, 1 power input
- Input current: 150 mA @ 12 to 48 VDC
- Overload current protection supported
- Operating temperature: -40 to 85°C

FAQs

Q: What serial interfaces does the TCC-100I-T convert between?
A: It converts RS-232 to RS-422, 2-wire RS-485 or 4-wire RS-485.

Q: What operating temperature range does the TCC-100I-T support?
A: It is the wide-temperature model, rated for operation from -40 to 85°C.

Q: Does the TCC-100I-T provide electrical isolation?
A: Yes. It provides 2 kV optical isolation to protect connected equipment from surges and ground loops.

Q: What baudrates are supported?
A: Baudrates from 50 bps to 921.6 kbps are supported, including non-standard baudrates.

Q: How is the TCC-100I-T powered and mounted?
A: It runs from a 12 to 48 VDC input and can be mounted on a DIN rail or on a wall.

Q: Do I need to configure RS-485 data direction manually?
A: No. The converter uses ADDC (automatic data direction control) for RS-485 data direction.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
