Moxa TCC-100I | TCC-100 Series RS-232 to RS-422/485 Converter, 2 kV Isolation

Authorised Moxa Partner

SKU:TCC-100I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

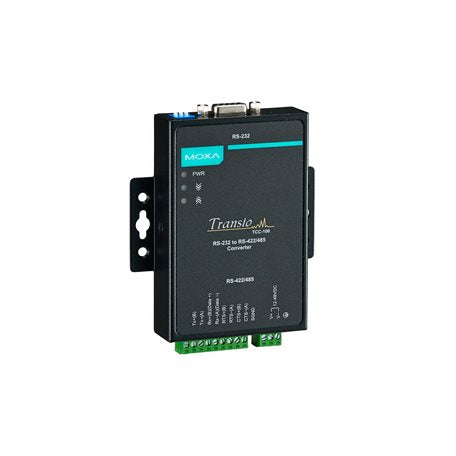

The TCC-100I is an industrial RS-232 to RS-422/485 serial converter that extends transmission distance and supports both 2-wire and 4-wire RS-485. It adds 2 kV isolation protection, making it well suited to industrial automation, building management and field equipment where electrical noise and ground loops can disrupt serial links. This standard temperature model operates from -20 to 60°C.

The converter uses plug-in terminal block wiring and supports baudrates from 50 bps to 921.6 kbps, including non-standard rates. Automatic data direction control removes the need for software handling of RS-485 direction, and the compact metal housing mounts on a DIN rail (optional kit) or a wall. It runs from a 12 to 48 VDC supply and includes LED indicators for power, Tx and Rx.

Features

- RS-232 to RS-422 conversion with RTS/CTS support
- RS-232 to 2-wire or 4-wire RS-485 conversion
- 2 kV isolation protection against noise and ground loops
- Automatic data direction control (ADDC) for RS-485
- Plug-in terminal block for easy RS-422/485 wiring
- LED indicators for power, Tx and Rx
- Wall mounting and DIN-rail mounting options
- Rugged metal housing for industrial environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-232, RS-422, RS-485 (2-wire and 4-wire)
- Isolation: 2 kV
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Connector: Terminal block
- Number of ports: 2
- RS-485 data direction control: ADDC (automatic data direction control)
- Pull high/low resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohms
- RS-232 signals: TxD, RxD, RTS, CTS, GND
- RS-422 and RS-485-4w signals: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w signals: Data+, Data-, GND
- Input voltage: 12 to 48 VDC, 150 mA, 1 power input
- Overload current protection supported
- Power connector: Terminal block
- Housing: Metal, IP30
- Dimensions: 67 x 100.4 x 22 mm
- Weight: 148 g
- Installation: DIN-rail mounting (optional kit), wall mounting
- Operating temperature: -20 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 3,017,857 hrs (Telcordia/Bellcore, GB)

FAQs

Q: Does the TCC-100I support both 2-wire and 4-wire RS-485?
A: Yes. It converts RS-232 to RS-422, 2-wire RS-485 or 4-wire RS-485, with automatic data direction control handling RS-485 direction.

Q: What is the difference between the TCC-100I and the TCC-100?
A: The TCC-100I adds 2 kV isolation protection to the same RS-232 to RS-422/485 conversion function, which helps protect equipment from electrical noise and ground loops.

Q: What power supply does the TCC-100I require?
A: It runs from a 12 to 48 VDC input via a terminal block, drawing 150 mA, and includes overload current protection.

Q: What serial speeds does it support?
A: Baudrates from 50 bps to 921.6 kbps are supported, including non-standard baudrates.

Q: How is the TCC-100I mounted?
A: It can be wall mounted or mounted on a DIN rail using the optional DIN-rail kit.

Q: Is this model suitable for wide temperature environments?
A: This is the standard temperature model rated for -20 to 60°C operation. It is not intended for extended temperature ranges beyond that.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
