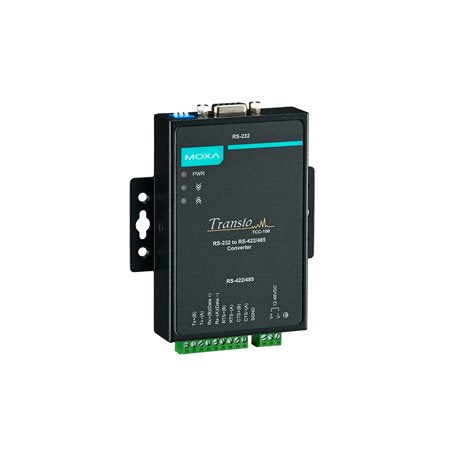

Moxa TCC-100 | RS-232 to RS-422/485 Serial Converter, Non-Isolated

Authorised Moxa Partner

SKU:TCC-100

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The TCC-100 RS-232 to RS-422/485 serial converter extends serial transmission in industrial environments by converting RS-232 signals to RS-422 or 2-wire/4-wire RS-485. This non-isolated, standard temperature model suits control cabinets and equipment racks where reliable serial links over longer distances are needed, and it supports baudrates from 50 bps to 921.6 kbps. Automatic data direction control (ADDC) removes the need for manual direction switching on RS-485 lines.

The metal IP30 housing and terminal-block wiring suit rugged installations, and the converter runs from a wide 12 to 48 VDC input with overload current protection. It mounts on a wall, or on a DIN rail using the optional kit, and operates from -20 to 60 °C. It belongs to the TCC-100/100I range, and this is the standard model without electrical isolation.

Features

- RS-232 to RS-422 conversion with RTS/CTS support
- RS-232 to 2-wire or 4-wire RS-485 conversion
- Automatic data direction control (ADDC) for RS-485
- Rugged metal IP30 housing
- Wall or DIN-rail mounting (DIN-rail kit optional)
- Wide 12 to 48 VDC power input with overload current protection
- 20 to 60 °C operating temperature
- Non-isolated design for standard industrial serial links

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x serial ports with terminal block connector
- Serial standards: RS-232, RS-422, RS-485 (2-wire and 4-wire)
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- RS-485 data direction control: ADDC (automatic data direction control)
- Pull high/low resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- RS-485 terminator: N/A, 120 ohms, 120 kilo-ohms
- Input voltage: 12 to 48 VDC, 1 power input via terminal block
- Input current: 47 mA (max)
- Overload current protection supported
- Housing: Metal, IP30
- Dimensions: 67 x 100.4 x 22 mm
- Weight: 148 g
- Installation: Wall mounting; DIN-rail mounting with optional kit
- Operating temperature: -20 to 60 °C
- Storage temperature: -40 to 85 °C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Safety: UL 60950-1
- EMC: EN 55032/35, FCC Part 15B Class A
- MTBF: 3,017,857 hrs

FAQs

Q: What does the TCC-100 convert?
A: It converts RS-232 signals to RS-422 or to 2-wire or 4-wire RS-485, extending serial transmission distance in industrial settings.

Q: Does the TCC-100 provide electrical isolation?
A: No. This is the standard non-isolated model in the TCC-100/100I range.

Q: Do I need to manually control data direction on RS-485?
A: No. The converter uses automatic data direction control (ADDC) for RS-485, so no manual direction switching is required.

Q: What power supply does the TCC-100 need?
A: It accepts a 12 to 48 VDC input via a terminal block, with a maximum input current of 47 mA and overload current protection.

Q: How can the TCC-100 be mounted?
A: It can be wall mounted, or mounted on a DIN rail using the optional DIN-rail kit.

Q: What baudrates are supported?
A: The TCC-100 supports baudrates from 50 bps to 921.6 kbps, including non-standard baudrates.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
